SATCO/NUVO 120W LED HID Replacement 5000K Extended Mogul Base Type B Ballast Bypass Economy Hi-Pro (S49397)

SATCO/NUVO 120W LED HID Replacement 5000K Extended Mogul Base Type B Ballast Bypass Economy Hi-Pro (S49397)

SKU SATCO/NUVO-S49397
by SATCO/NUVO
$126.95 - $126.95
$126.95
Backorder: Usually Ships in 7-14 Days
Product Description

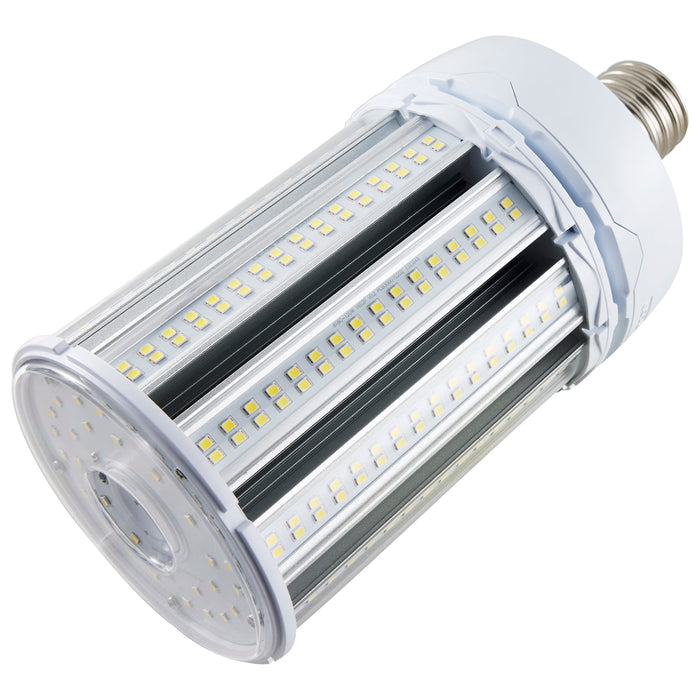

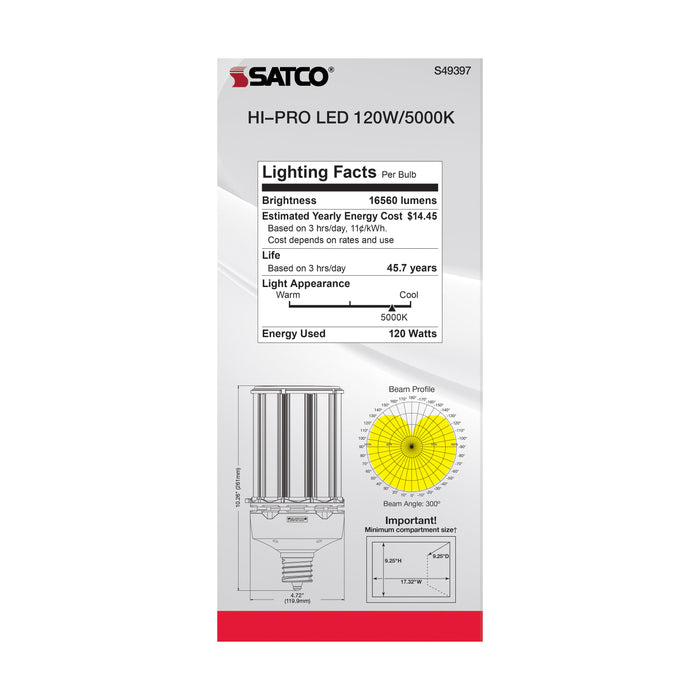

Rated to replace 600-watt HID and 750-watt incandescent lamps, this 120-watt LED corncob ships with a safety cable required for base-up high-bay installation. 16,560 lumens of 5000K natural light exit through a 300-degree beam at 138 lumens per watt, powered by 120-277V ballast-bypass wiring into an extended mogul (EX39) socket. The IP65-rated housing carries 4KV surge protection for damp locations.

Features

  • Wattage & Type: 120 Watt LED HID Replacement (Corncob)
  • Replaces: 600W HID / 750W Incandescent
  • Light Output: 16,560 Lumens, 5000K Natural Light, 80+ CRI
  • Voltage: 120V-277V, 50/60Hz
  • Base: Extended Mogul (EX39)
  • Ballasting: Type B, Ballast Bypass
  • Rated Life: 35,000 Hours
  • Beam Angle: 300°
  • Surge Protection: Built-in 4KV
  • IP Rating: IP65
  • Location Rating: Damp
  • Enclosed Fixture Rated: Yes
  • Operating Position: Base Up or Down
  • Includes: Safety Cable (required for base-up installation)
  • Operating Temp: -13°F to +131°F
  • Warranty: 3 Years

Ideal For: Warehouse high bays • Gymnasium retrofits • Manufacturing plants • Outdoor canopies • Distribution centers

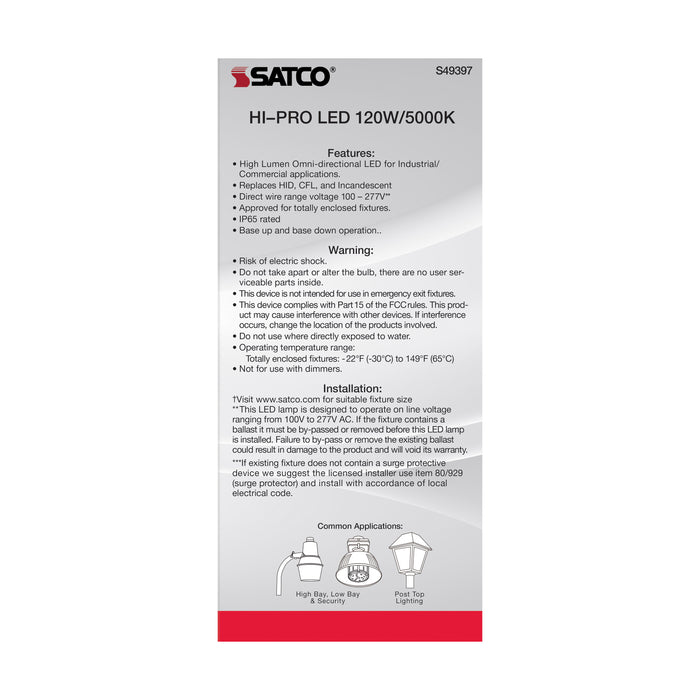

Safety cable required upon installation in high-bay, base-up applications. Suitable for damp locations and enclosed fixtures. Not for use in vapor-tight fixtures. cULus listed. 3-year warranty.

Frequently Asked Questions
How bright is this product?
At 16560 lumens, this product provides high light output suitable for illuminating large areas.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
Is this product dimmable?
This product is non-dimmable and should not be used with a dimmer.
Can this product be used in damp or outdoor locations?
This product is damp location rated meaning it can be used in areas exposed to humidity or light moisture such as covered outdoor areas or bathrooms. It should not be exposed to direct water.
What is the CRI and how does it affect light quality?
This product has a CRI of 80, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
