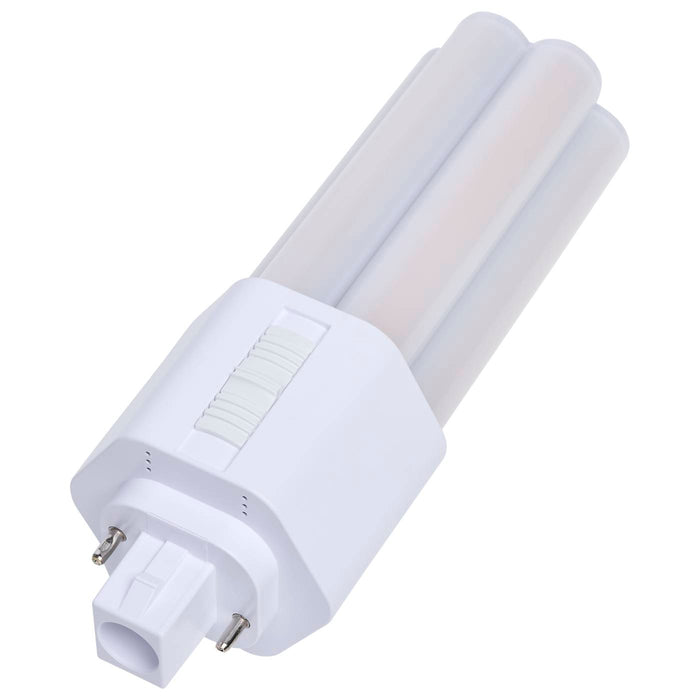

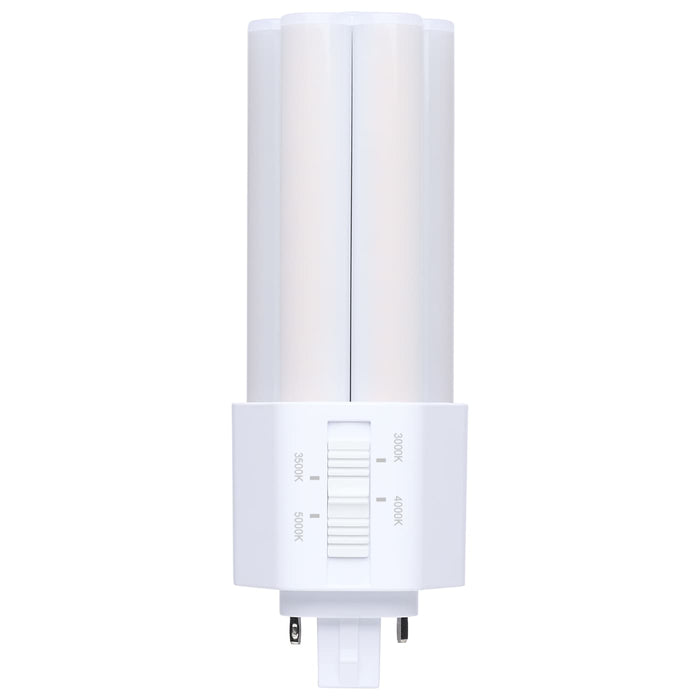

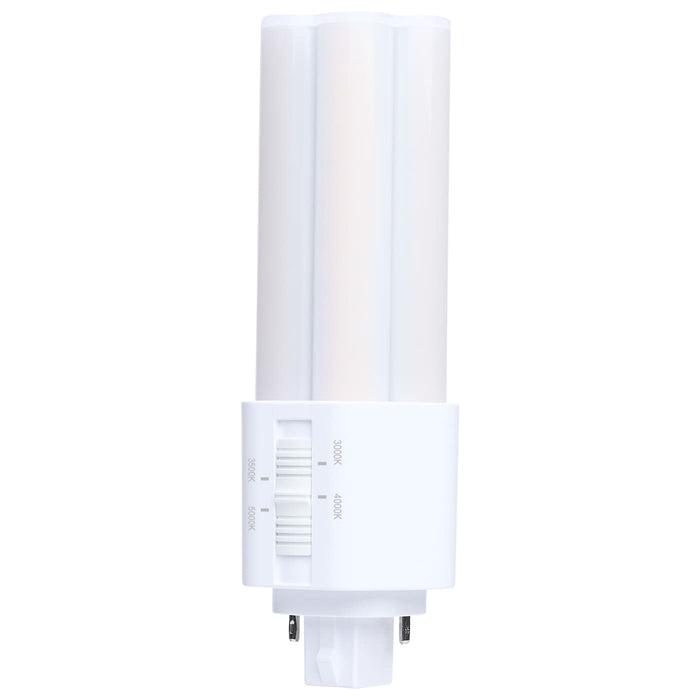

SATCO/NUVO 9W PLT LED GX24d Base CCT Selectable 3000K/3500K/4000K/5000K Omni Type B 120-277V (S29886)

SATCO/NUVO 9W PLT LED GX24d Base CCT Selectable 3000K/3500K/4000K/5000K Omni Type B 120-277V (S29886)

SKU SATCO/NUVO-S29886
by SATCO/NUVO
$16.69 - $16.69
$16.69
Backorder: Usually Ships in 7-14 Days
Product Description

Once a triple-tube PLT fixture has been rewired for ballast bypass, this 9-watt LED drops right in. It wires through a GX24d 2-pin base straight to line voltage and puts out 1,200 lumens, with a switch on the base to pick between 3000K, 3500K, 4000K, and 5000K, replacing a 26W CFL.

Type B bypass only — it will not work with a functioning ballast in the circuit. 120—277V input, non-dimmable, 50,000-hour rated life. Confirm the fixture has been rewired for line-voltage direct before installing.

Features

  • 9 watts, 1,200 lumens, 80+ CRI
  • 4-CCT selectable on the base: 3000K / 3500K / 4000K / 5000K
  • Replaces a 26W CFL
  • GX24d 2-pin base, PLT shape
  • Type B ballast-bypass only — will not work with an existing ballast
  • Non-dimmable
  • 120—277V input, 360° omnidirectional
  • Built-in 0.5kV surge protection
  • 50,000-hour rated life
  • NSF approved, rated for use in enclosed fixtures

Ideal For: Ballast-Bypassed Downlights • Wall Sconces • Corridor Fixtures • Office Retrofit • Commercial Installs

Damp-location rated. Backed by a 5-year Satco warranty.

Frequently Asked Questions
How bright is this product?
Producing 1200 lumens, this product delivers bright illumination suitable for general-purpose lighting.
What color temperature is this product?
This product offers 3000-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product is non-dimmable and should not be used with a dimmer.
Can this product be used in damp or outdoor locations?
This product is damp location rated meaning it can be used in areas exposed to humidity or light moisture such as covered outdoor areas or bathrooms. It should not be exposed to direct water.
What is the beam angle of this product?
This product has a 360-degree beam angle providing an all around light distribution for full surrounding coverage.
What is the CRI and how does it affect light quality?
This product has a CRI of 80, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
