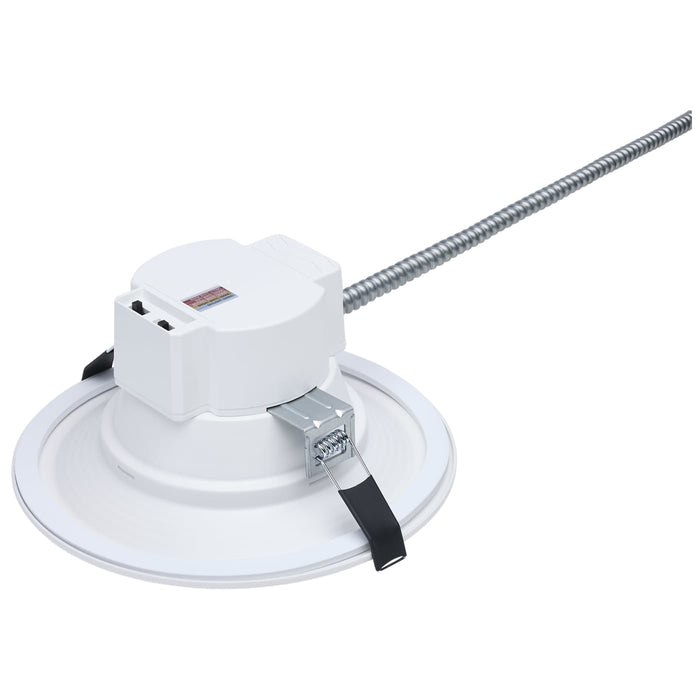

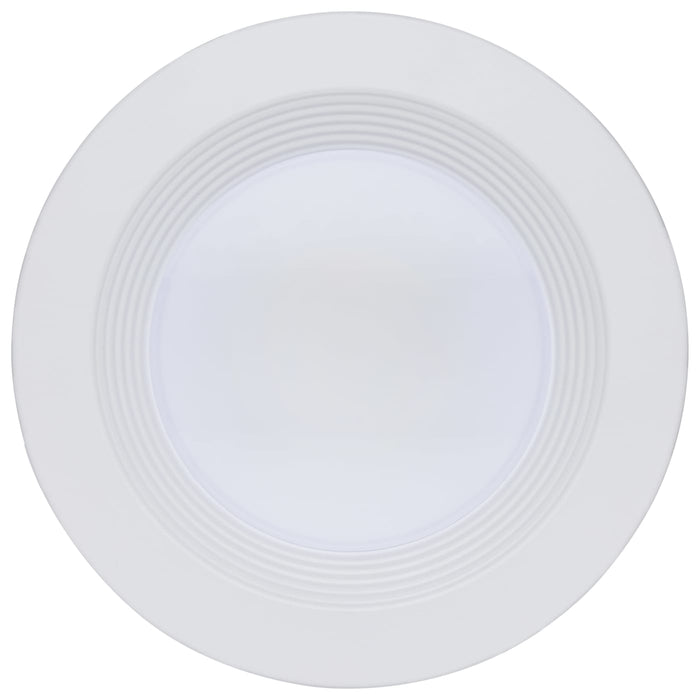

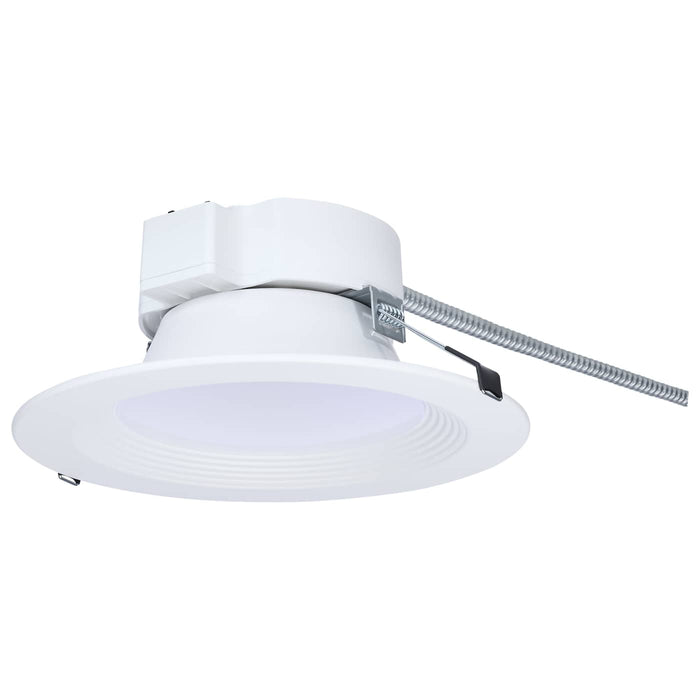

SATCO/NUVO 8 Inch Round LED Commercial Downlight Wattage/CCT Selectable 25.5W/22.5W/17.2W 2700K/3000K/3500K/4000K/5000K 120-347V Dimmable White (S21602)

SATCO/NUVO 8 Inch Round LED Commercial Downlight Wattage/CCT Selectable 25.5W/22.5W/17.2W 2700K/3000K/3500K/4000K/5000K 120-347V Dimmable White (S21602)

SKU SATCO/NUVO-S21602
by SATCO/NUVO
$87.95 - $87.95
$87.95
Backorder: Usually Ships in 7-14 Days
Product Description

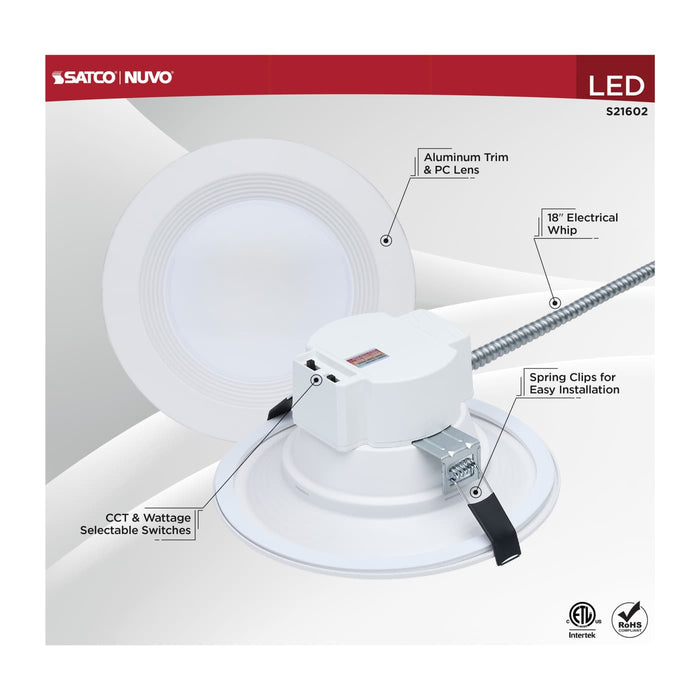

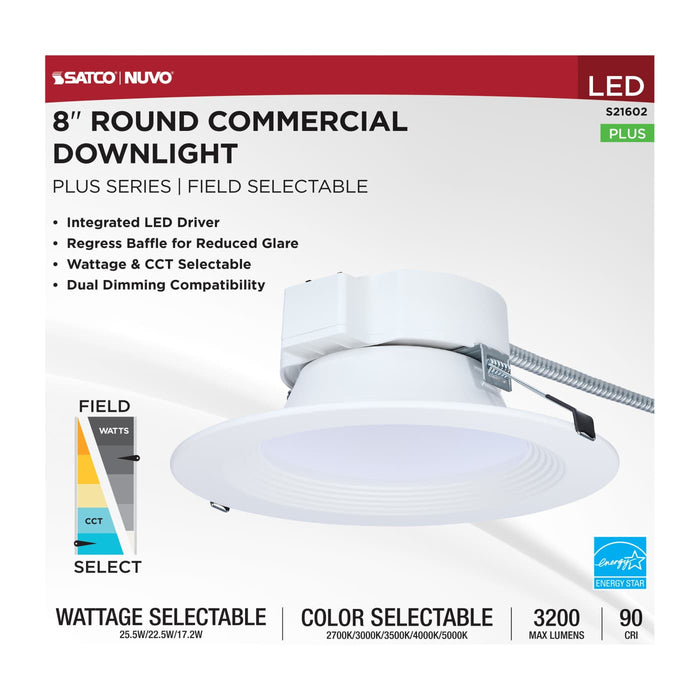

The Plus Series 8-inch round commercial LED downlight retrofits existing 8-inch openings and pairs field-selectable wattage with five-position color tuning, so one fixture covers multiple lighting specs on a job site.

Toggle between 25.5W, 22.5W, or 17.2W to hit the light level you need (3200, 2900, or 2200 lumens), then dial in the color temperature from a warm 2700K up to a crisp 5000K. Dual dimming works with forward or reverse phase controls at 120V and 0-10V controls across the full 120-347V range, so the fixture drops into virtually any commercial dimming system. 90+ CRI keeps merchandise, finishes, and skin tones looking accurate, and built-in 2.5KV surge protection defends against voltage spikes on utility circuits. Rated for 50,000 hours of operation.

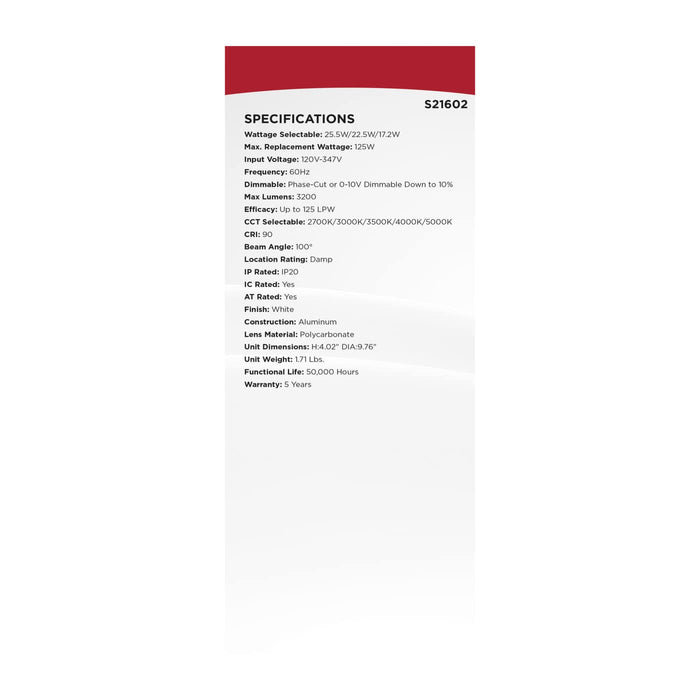

Features

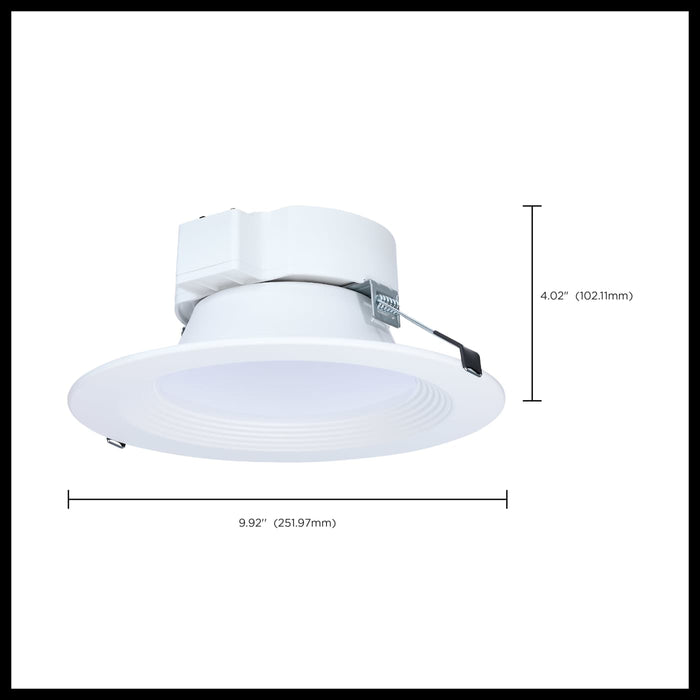

  • 8 inch nominal aperture, 9.76" overall diameter, 7.99" mounting cutout
  • Selectable 25.5W / 22.5W / 17.2W producing 3200 / 2900 / 2200 lumens

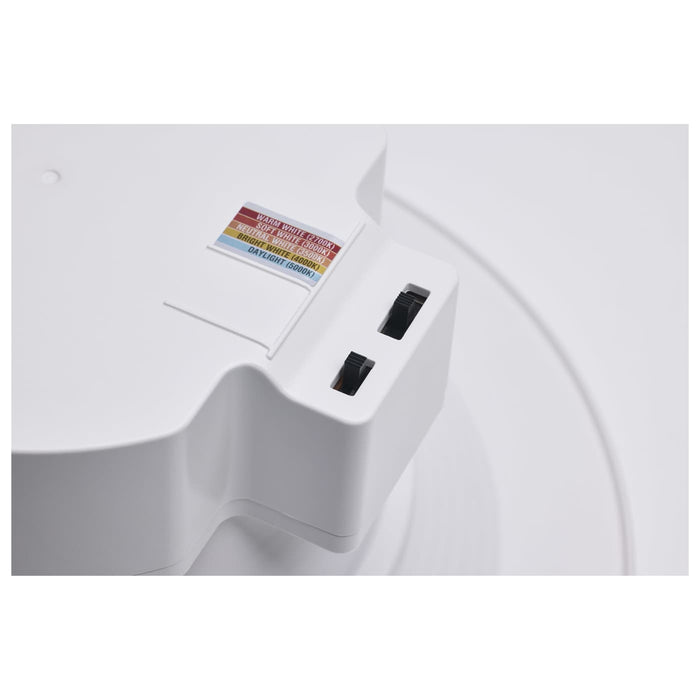

  • CCT selectable on 2700K / 3000K / 3500K / 4000K / 5000K (default 3000K)
  • 90+ CRI, 100° beam angle, 50,000-hour rated life
  • Dual dimming: forward/reverse phase at 120V, 0-10V at 120-347V
  • Replaces up to 125W incandescent or two 26W CFLs
  • Built-in 2.5KV surge protection

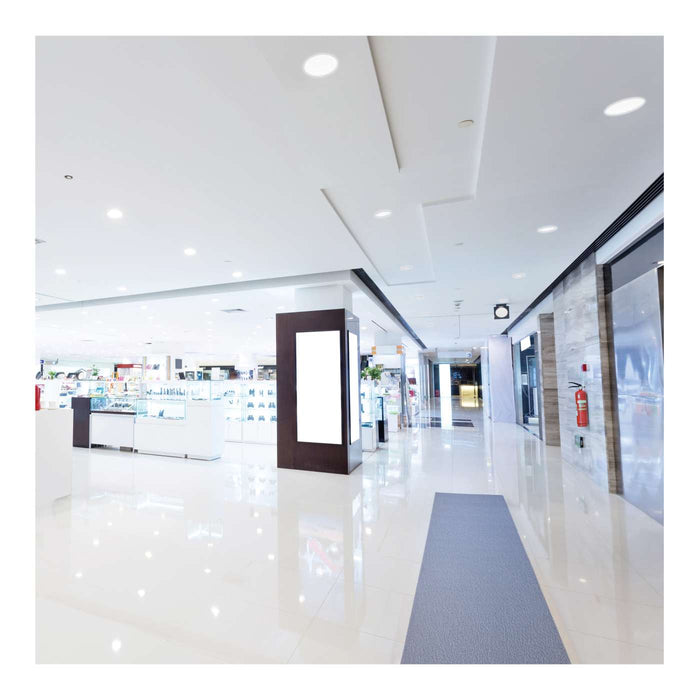

Ideal For: Retail floors • Warehouses • Corridors • Lobbies • Common areas

cETLus Listed. IC Rated and Air Tight. Suitable for Wet Locations.

Frequently Asked Questions
How bright is this product?
This product offers 3200/2900/2200 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product offers 2700-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 120V-347V and is compatible with a broad range of commercial electrical systems including applications that use 347V circuits. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product is dimmable allowing the light output to be adjusted when used with a compatible dimmer. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is damp location rated meaning it can be used in areas exposed to humidity or light moisture such as covered outdoor areas or bathrooms. It should not be exposed to direct water.
What is the CRI and how does it affect light quality?
This product has a CRI of 90, delivering high color accuracy with rich, natural color rendering. Colors will appear vibrant and clearly defined under this light.
