SATCO/NUVO LED Semi Cutoff Wall Pack Wattage/CCT Selectable 45W/60W/80W 3000K/4000K/5000K 80 CRI Dimmable 120-277V Bronze Finish (65-942)

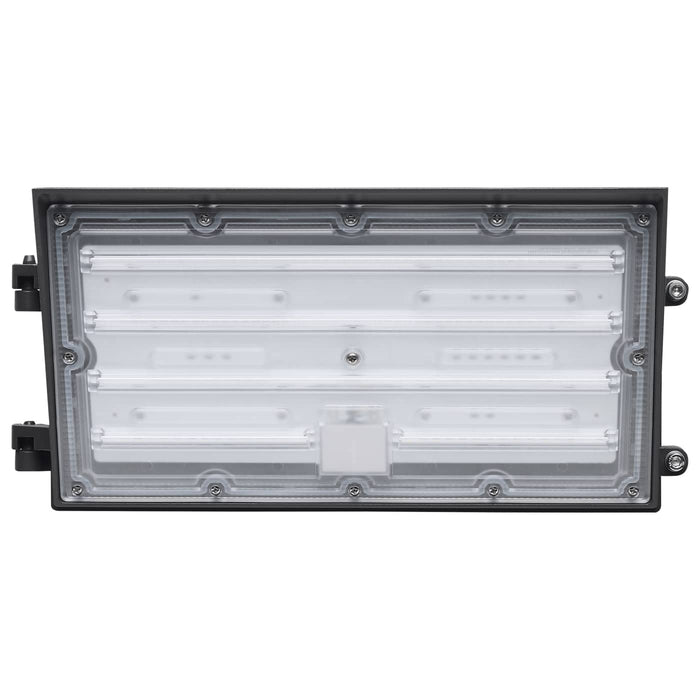

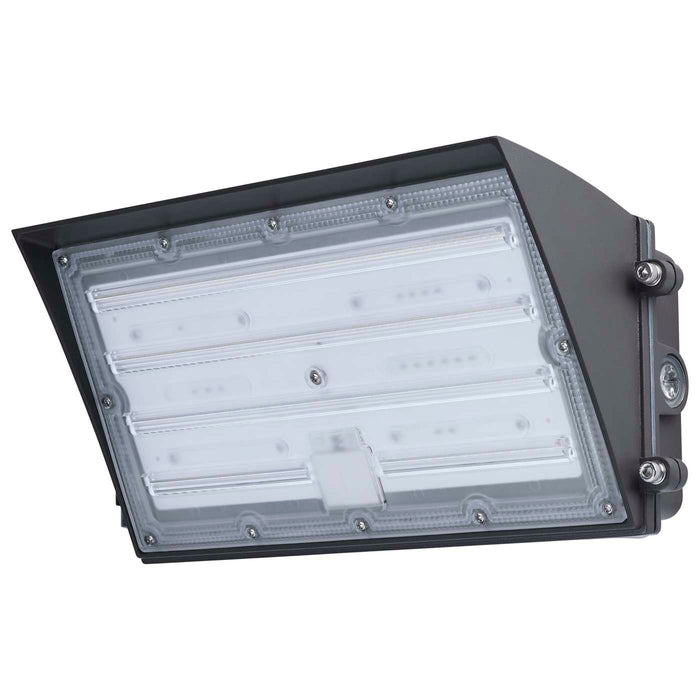

The 65-942 is a die-cast aluminum LED semi cutoff wall pack built for the same commercial perimeter applications as a full cutoff — building exteriors, loading zones, walkways — but with a wider 55° x 105° throw that pushes more light outward across the ground plane. It's a useful choice where coverage between fixtures matters as much as glare control. Field-selectable wattage (45W / 60W / 80W) and CCT (3000K / 4000K / 5000K) handle replacement of 100W–250W HID wall packs from one SKU.

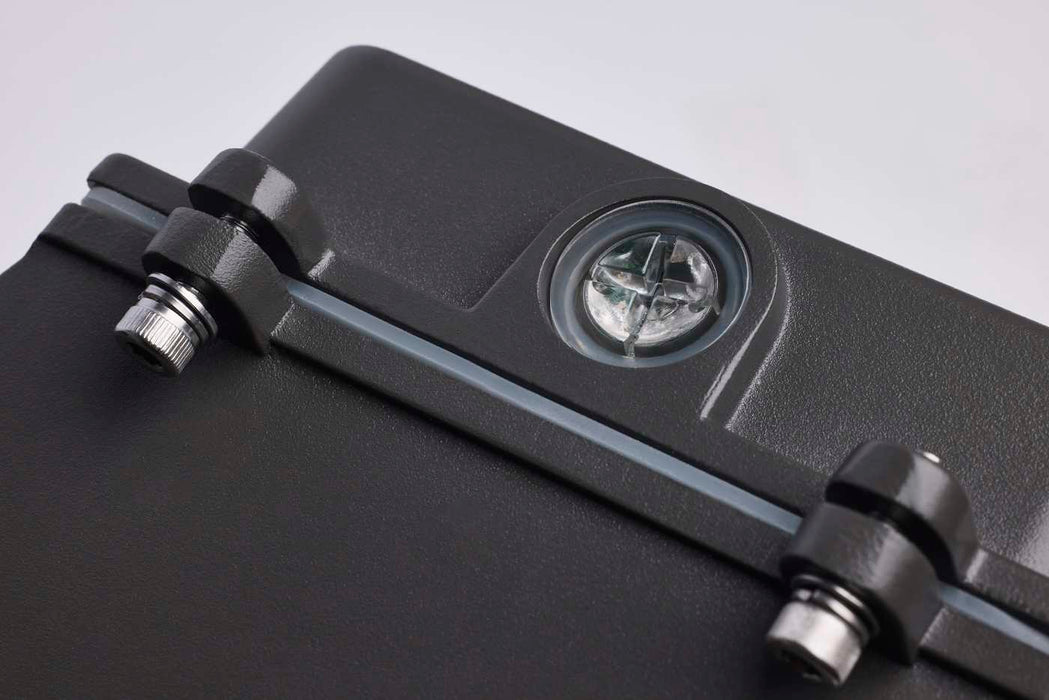

The fixture ships with a bypassable integrated photocell for dusk-to-dawn operation, 0-10V dimming for control integration, and 4kV built-in surge protection. The impact-resistant polycarbonate lens and die-cast aluminum housing are graded for IP65 wet location use across the full North American climate range.

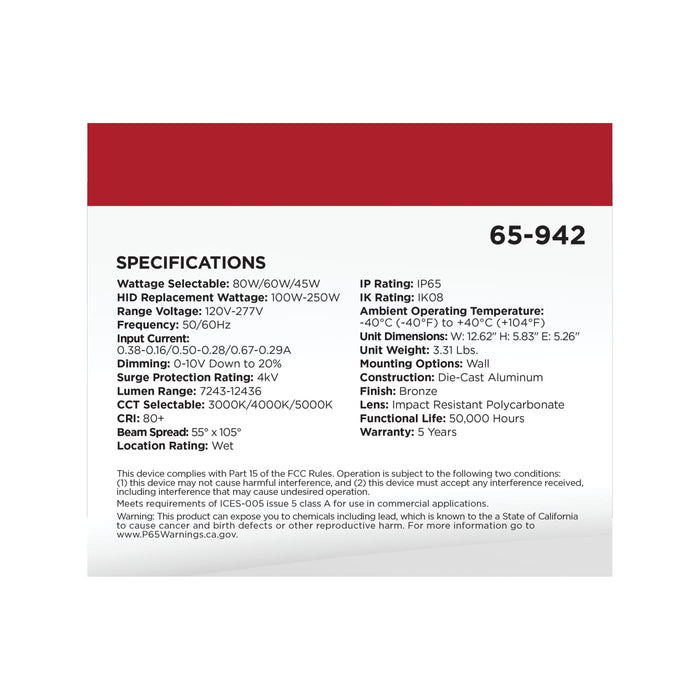

Features

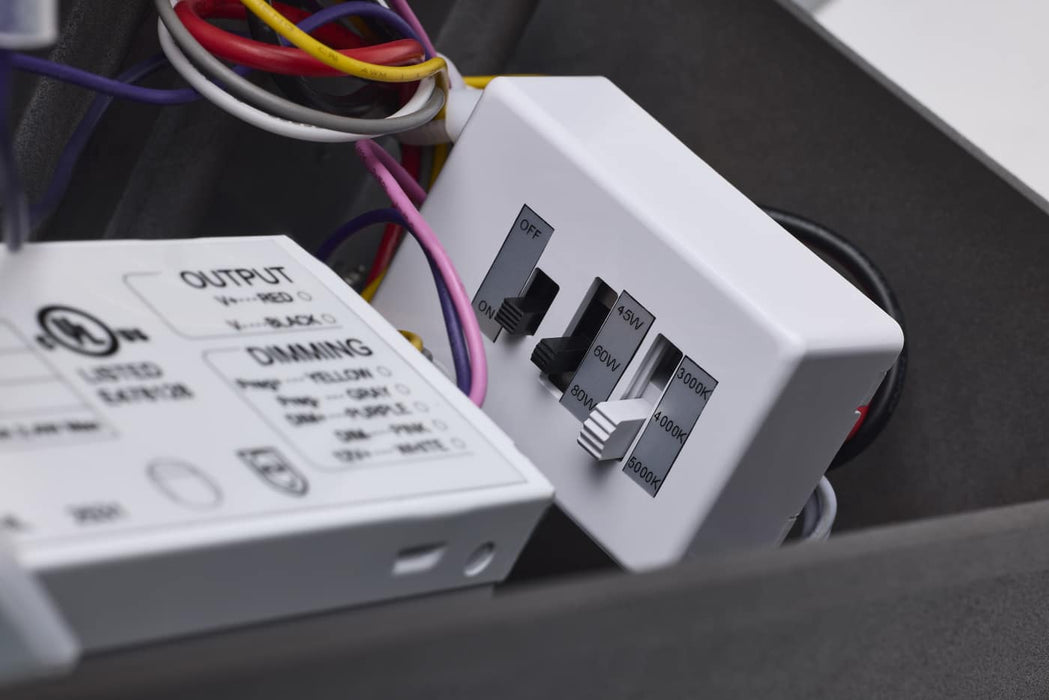

• Selectable Output: 45W / 60W / 80W field-selectable, 7,243–12,436 lumens
• Selectable CCT: 3000K / 4000K / 5000K, 80+ CRI
• Voltage: 120–277V universal, 50/60Hz, >0.9 power factor
• Optics: 55° x 105° semi cutoff distribution
• Controls: 0-10V dimming, bypassable integrated photocell

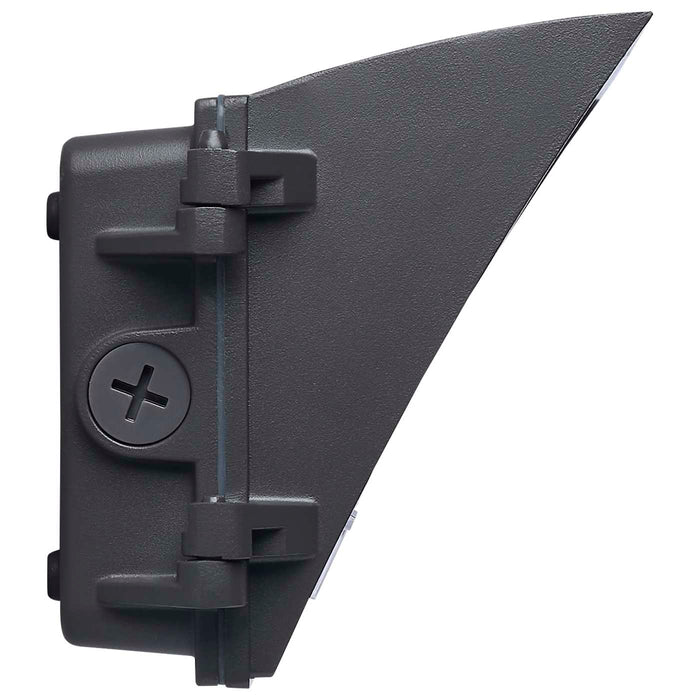

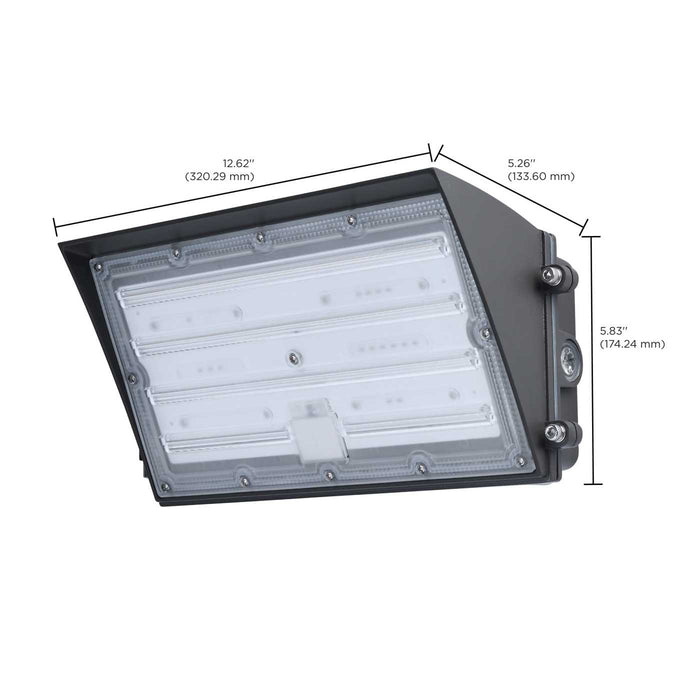

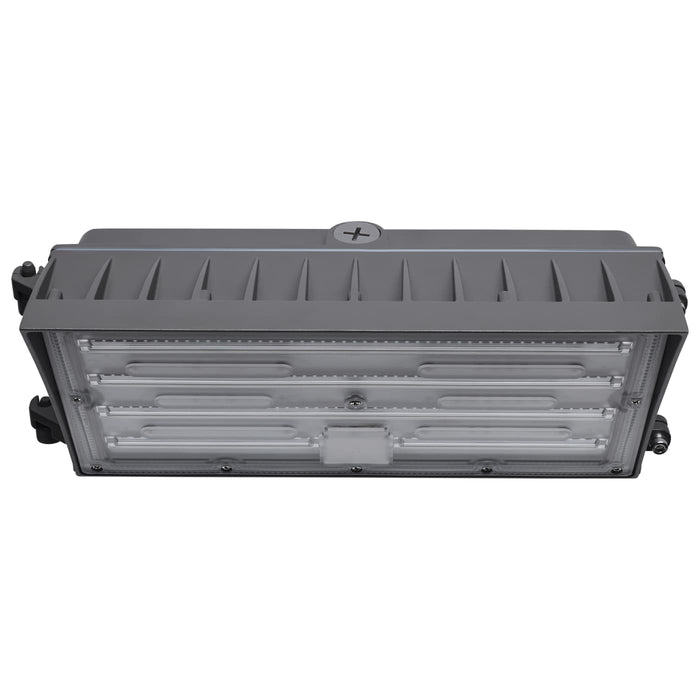

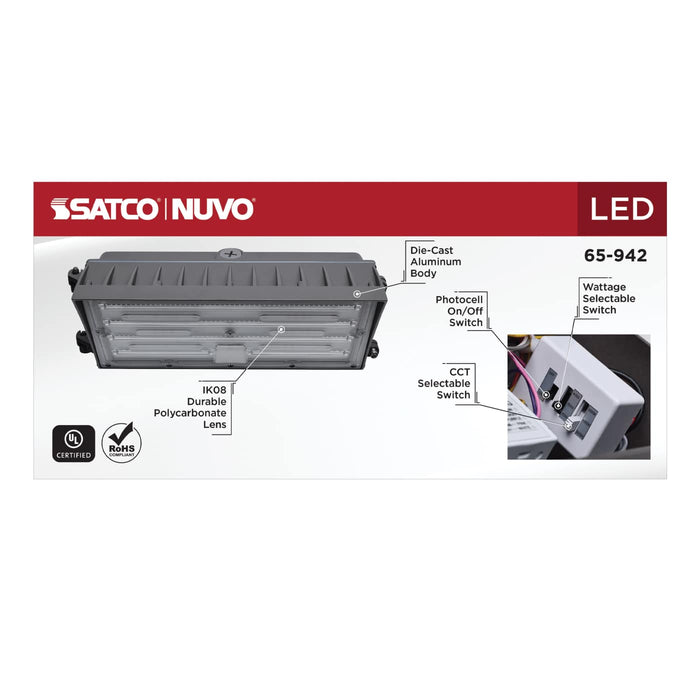

• Construction: Die-cast aluminum housing, bronze finish, impact-resistant PC lens
• Surge Protection: Built-in 4kV
• Rated Life: 50,000 hours
• Operating Range: -40°F to +104°F
• Bug Rating: B1-U4-G3

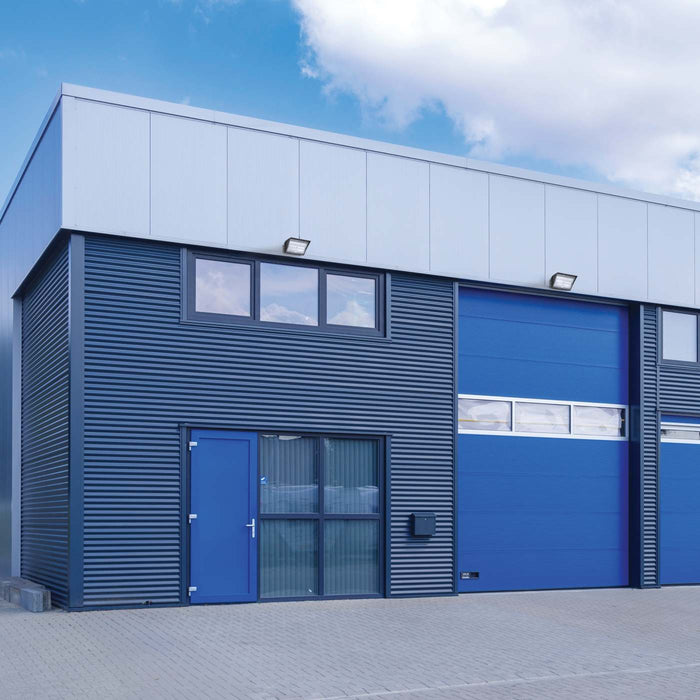

Ideal For: Building Perimeters • Loading Docks • Warehouses • Parking Areas • Commercial Walkways

IP65 wet location rated. cULus certified, DLC approved (S-VC4ZR0), FCC compliant, ROHS compliant, Title 20 exempt. Suitable for replacement of 100W–250W HID wall packs.
