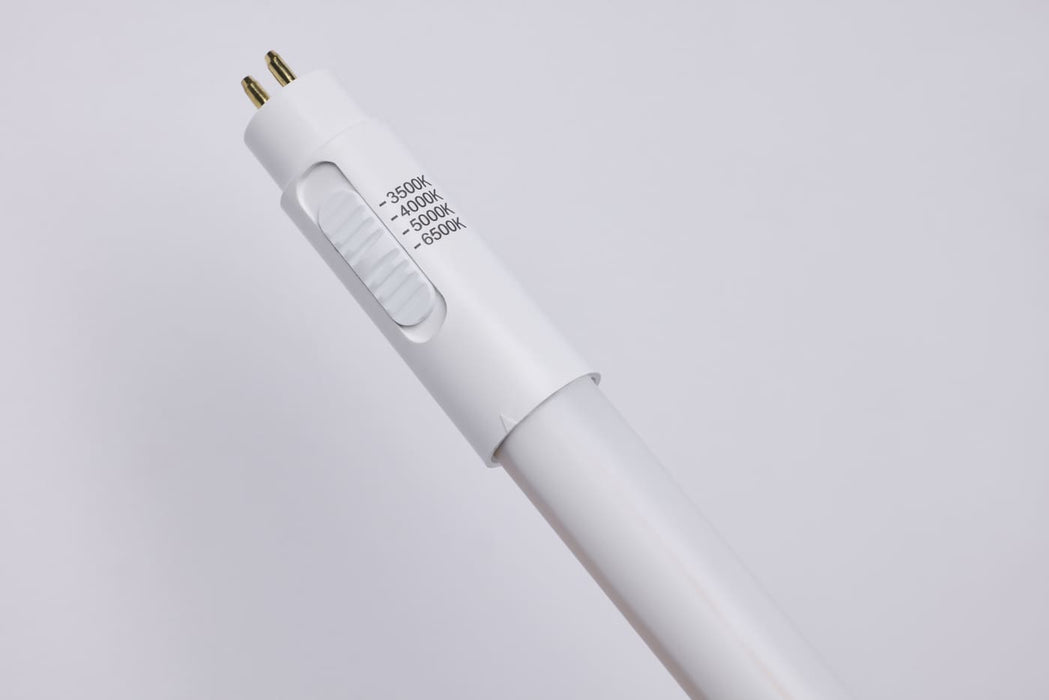

SATCO/NUVO 36 Inch 12W LED T5 G5 Base CCT Selectable 3500K/4000K/5000K/6500K Type B Pet Coated Line Voltage Dimmable 120-347V (S11651R1)

SATCO/NUVO 36 Inch 12W LED T5 G5 Base CCT Selectable 3500K/4000K/5000K/6500K Type B Pet Coated Line Voltage Dimmable 120-347V (S11651R1)

SKU S11651R1
by SATCO/NUVO
$15.52 - $15.52
$15.52
23 in Stock: Ready to Ship

Pickup available, usually ready in 1 hour.
10651 Northend Ave, Ferndale MI 48220
Product Description

Dimmable through standard 120V phase-cut controls, this 36-inch T5 LED wires as Type B on the G5 miniature bi-pin base. It puts out 1,500 lumens on 12 watts, replacing a 21-watt fluorescent while running directly on 120–277V line power without a ballast.

Features

  • Output: 1,500 lumens at 12 watts, 80+ CRI, 180° beam
  • CCT selectable: 3500K / 4000K / 5000K / 6500K
  • Dimming: 120V phase-cut line-voltage dimming (dimming on 120V circuits only)
  • Wiring: Type B ballast bypass on the G5 base; 120–277V line voltage
  • Dimensions: 33.94" MOL, 0.62" tube diameter
  • Safety: PET-coated shatterproof glass; NSF approved for food-handling areas
  • Rated for enclosed fixtures. 50,000-hour rated life.

Ideal For: Office bays • Retail displays • Undercabinet fixtures • Cove lighting • Restaurant back-of-house

cULus Listed for damp locations. Backed by a 5-year warranty.

Frequently Asked Questions
How bright is this product?
Producing 1500 lumens, this product delivers bright illumination suitable for general-purpose lighting.
What color temperature is this product?
This product offers 3500-6500 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 120V-347V and is compatible with a broad range of commercial electrical systems including applications that use 347V circuits. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product is dimmable allowing the light output to be adjusted when used with a compatible dimmer. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is damp location rated meaning it can be used in areas exposed to humidity or light moisture such as covered outdoor areas or bathrooms. It should not be exposed to direct water.
What is the beam angle of this product?
This product has a 180-degree beam angle, providing very wide light distribution that spreads evenly across a large coverage area.
What is the CRI and how does it affect light quality?
This product has a CRI of 80, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
