Product Description

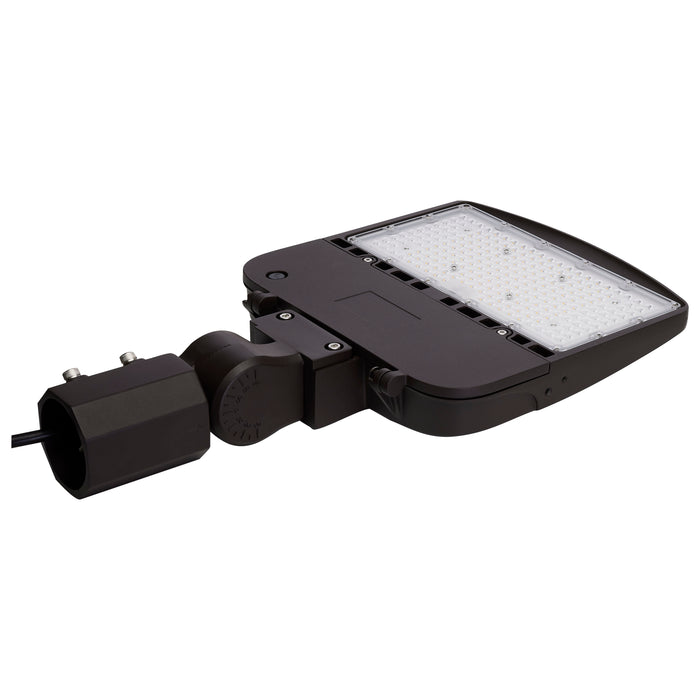

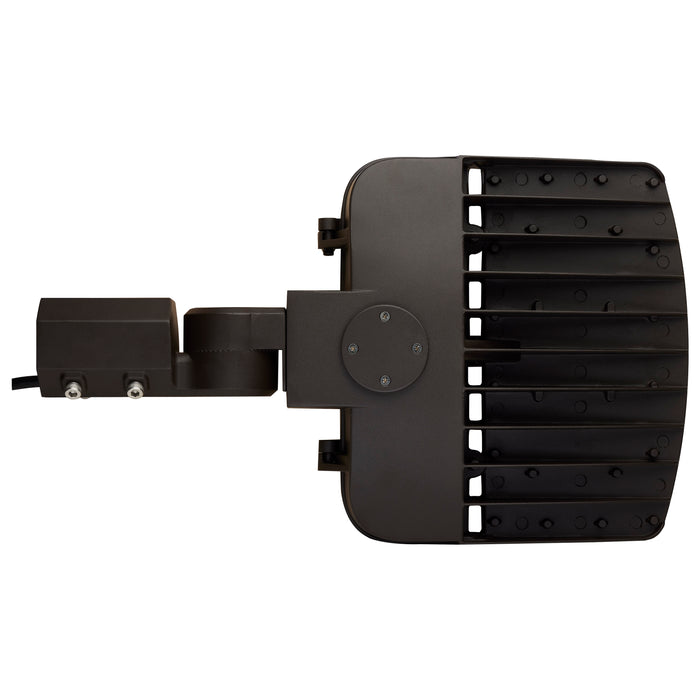

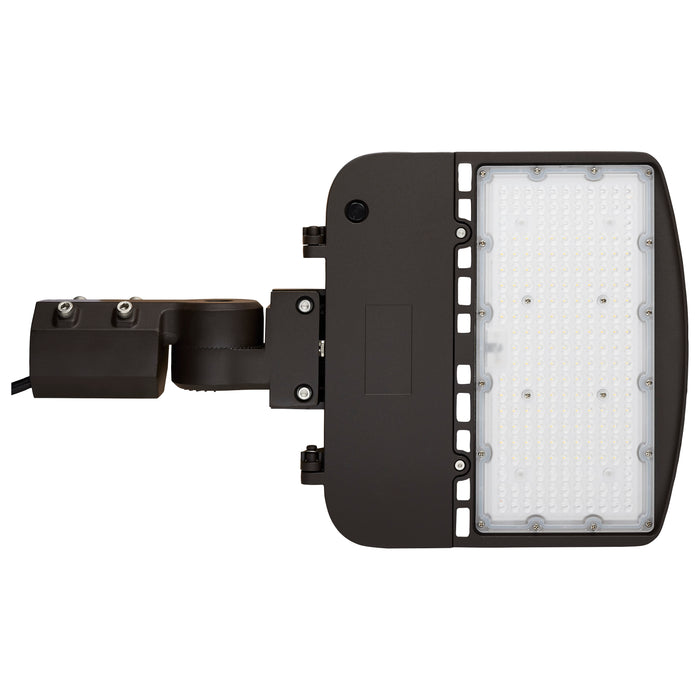

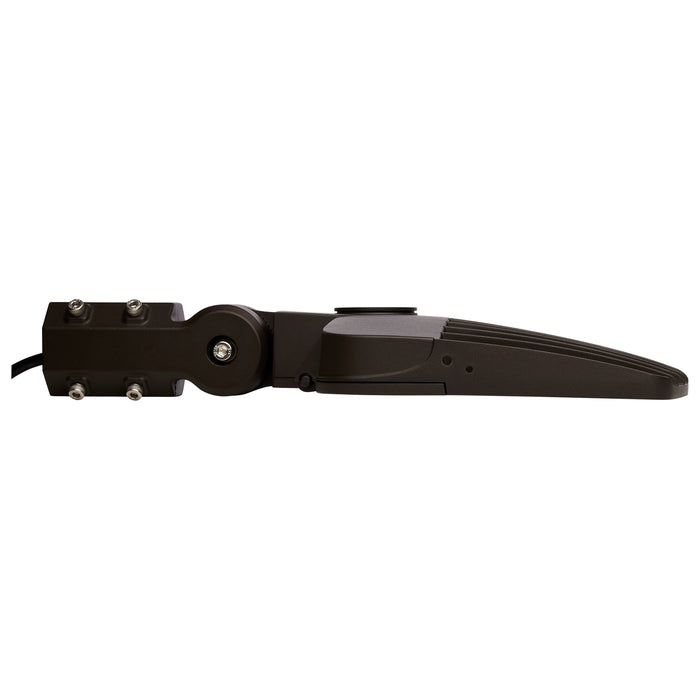

This 150W LED area light delivers 19,507 lumens of bright, uniform 4000K illumination from a rugged die-cast aluminum housing finished in bronze. Designed to replace a 320W HID fixture at a fraction of the energy draw, it mounts to standard pole arms with the included slip-fitter and operates on 277V-480V for flexible commercial and industrial installations.

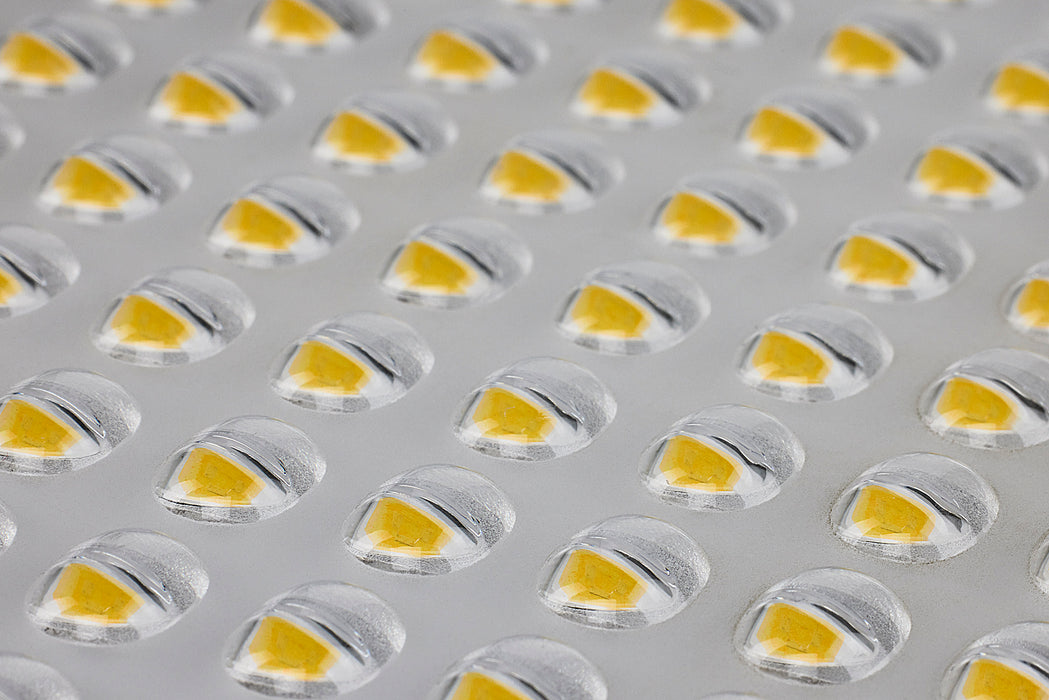

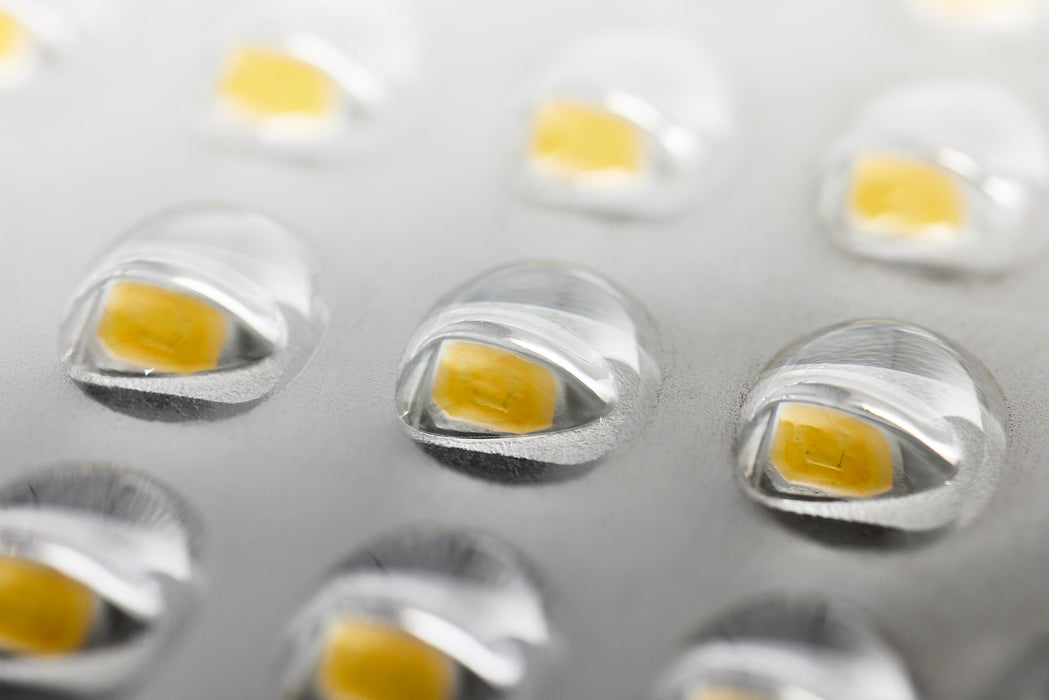

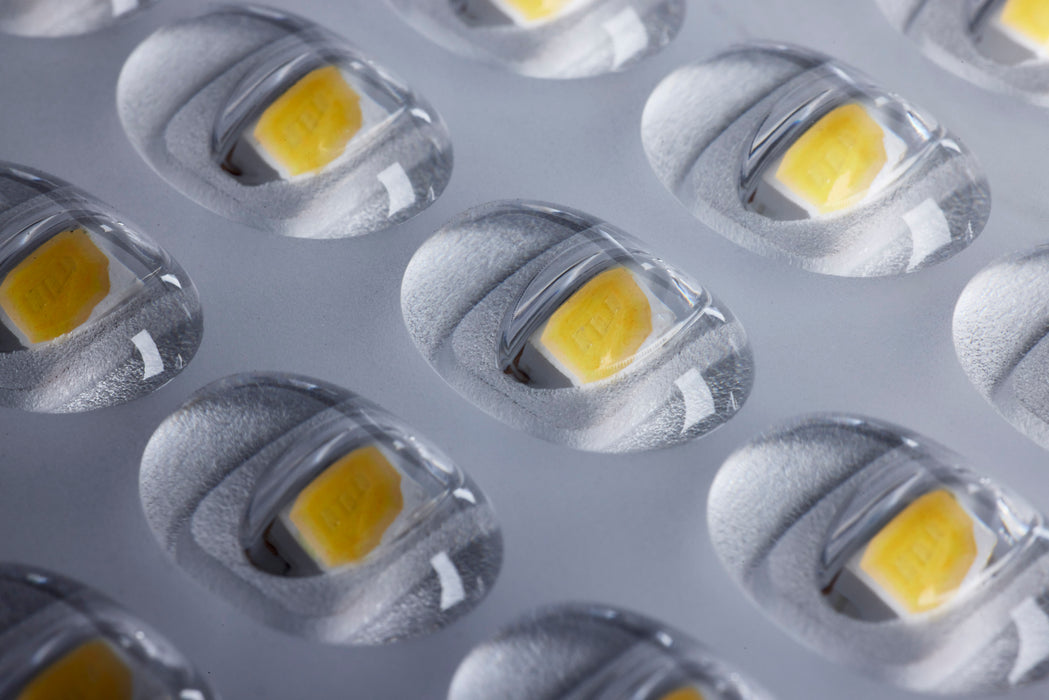

Type IV distribution delivers a forward-throw rectangular pattern designed for wall-mount and perimeter pole applications, projecting light away from the fixture to cover parking lot edges, building exteriors, and loading zones. A powder-coated die-cast aluminum body and polycarbonate lens stand up to wet locations and temperature swings from -40°F to 113°F, while built-in 4kV surge protection helps shield the driver from line transients common in outdoor settings.
Features
-
Output: 19,507 lumens at 150W, replacing roughly 320W HID
-
Color & Quality: 4000K color temperature, 80+ CRI
-
Voltage: 277V-480V multi-tap input
-

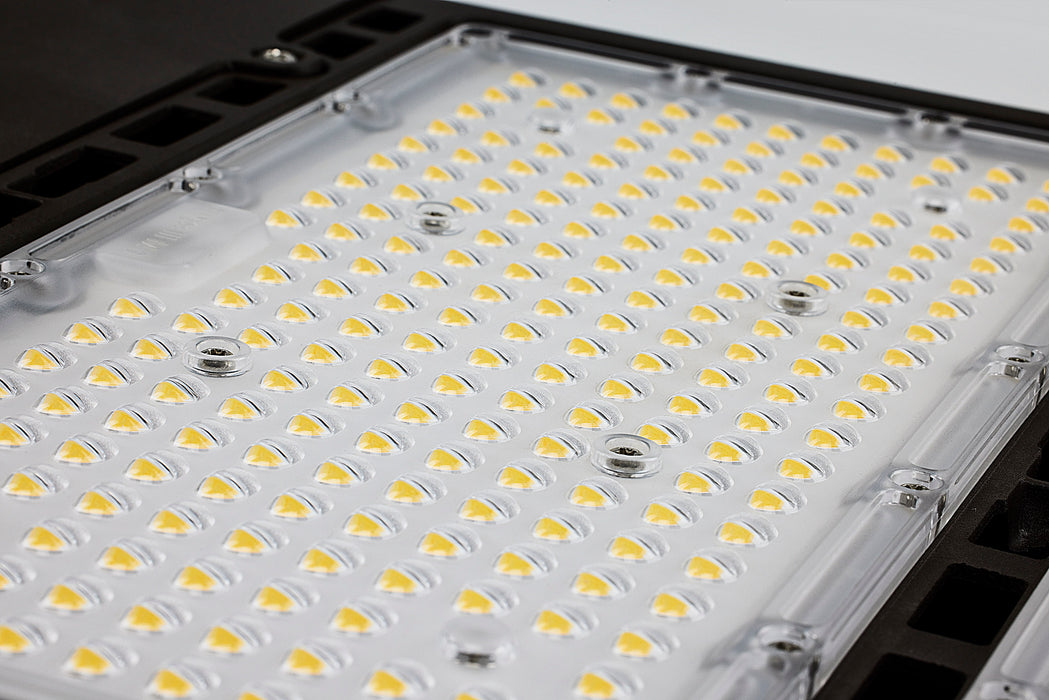

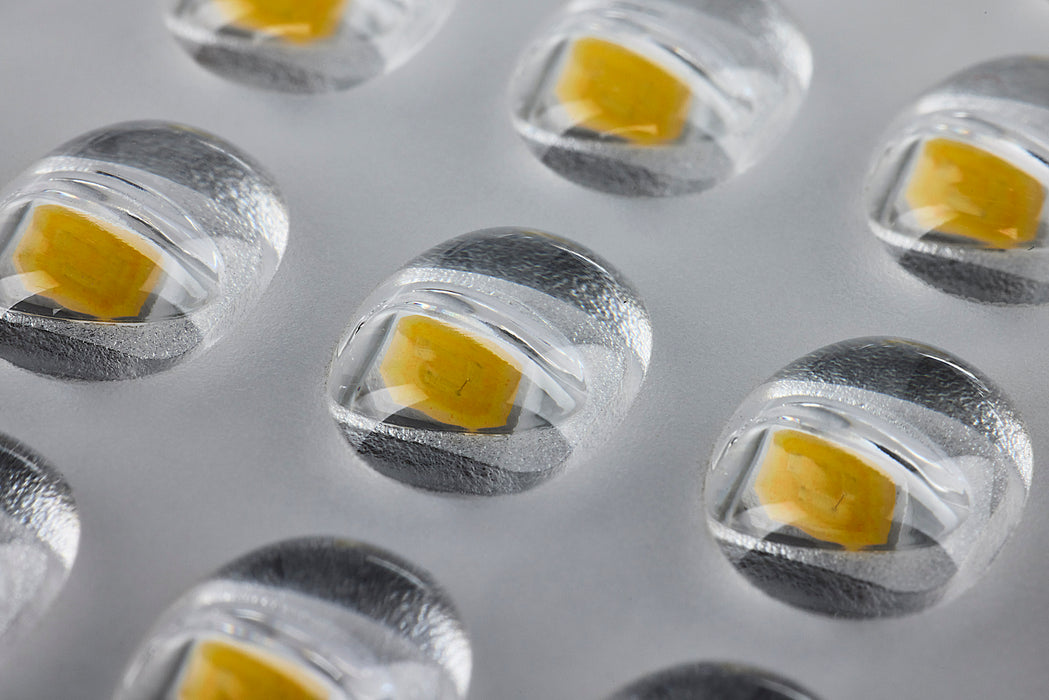

Optic: Type IV light distribution; BUG rating B4-U3-G4
-
Dimming: 0-10V Dimming
-

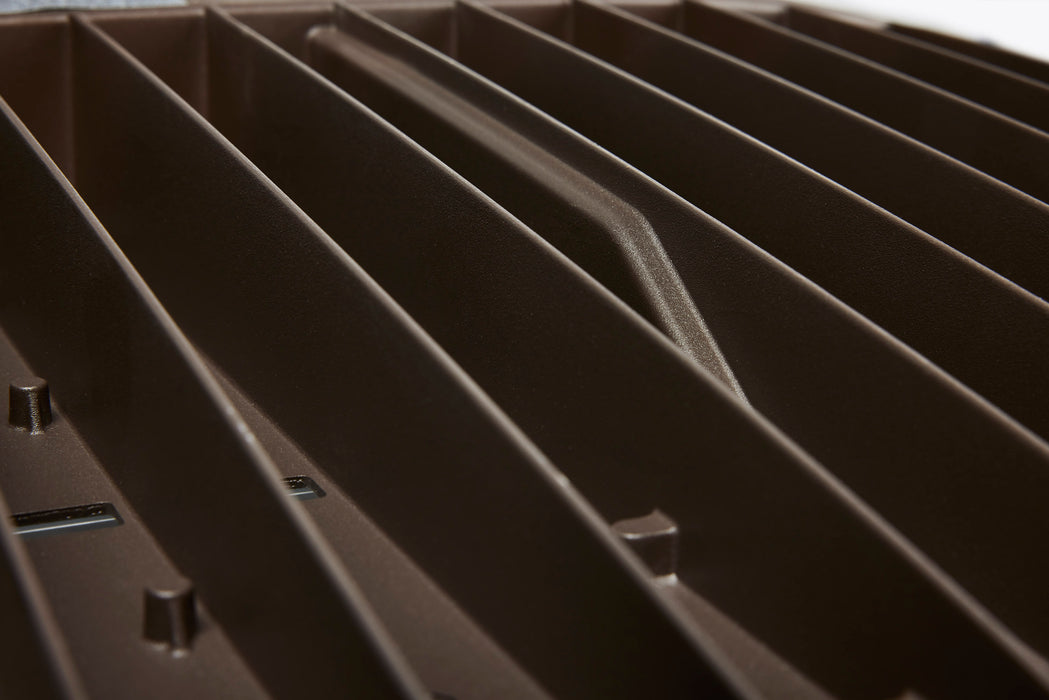

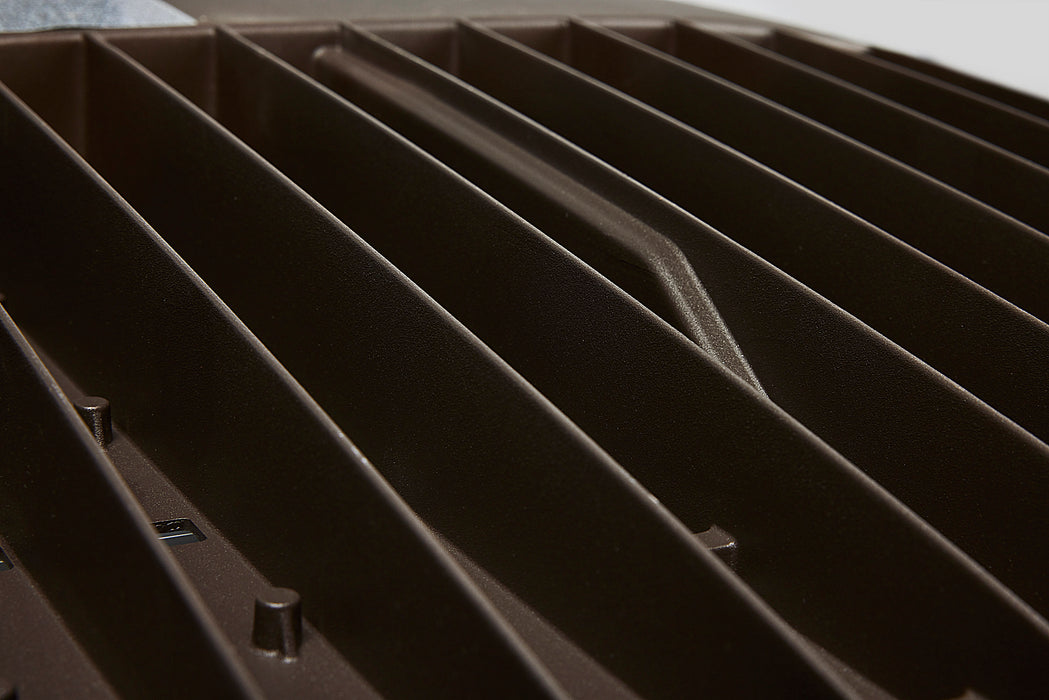

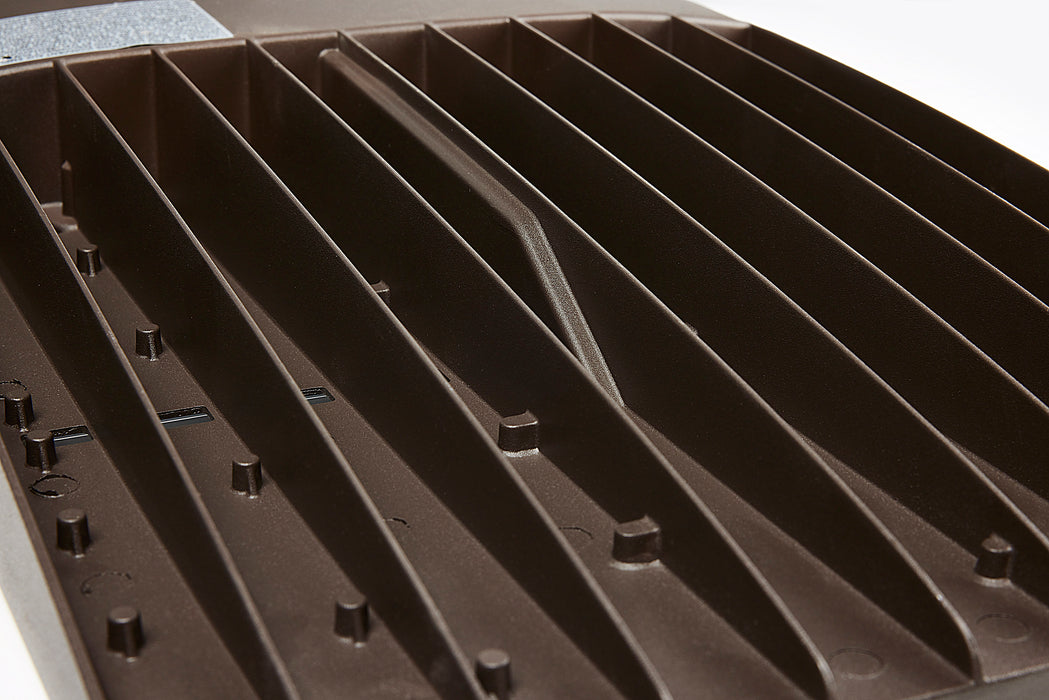

Build: Die-cast Aluminum, powder coated bronze finish with Polycarbonate (PC) lens
-

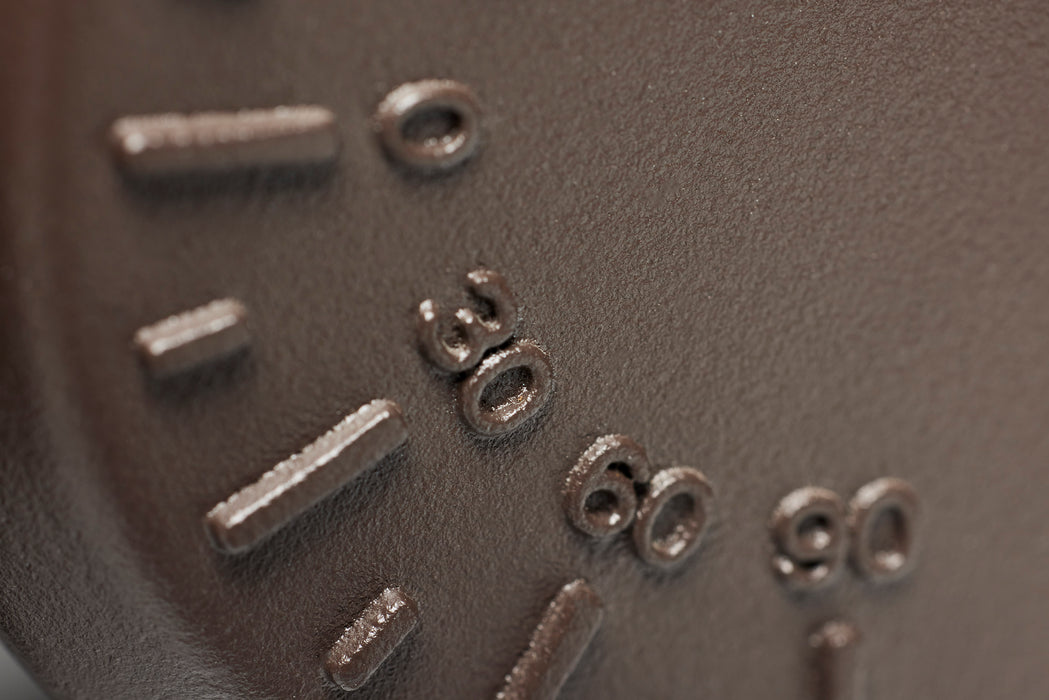

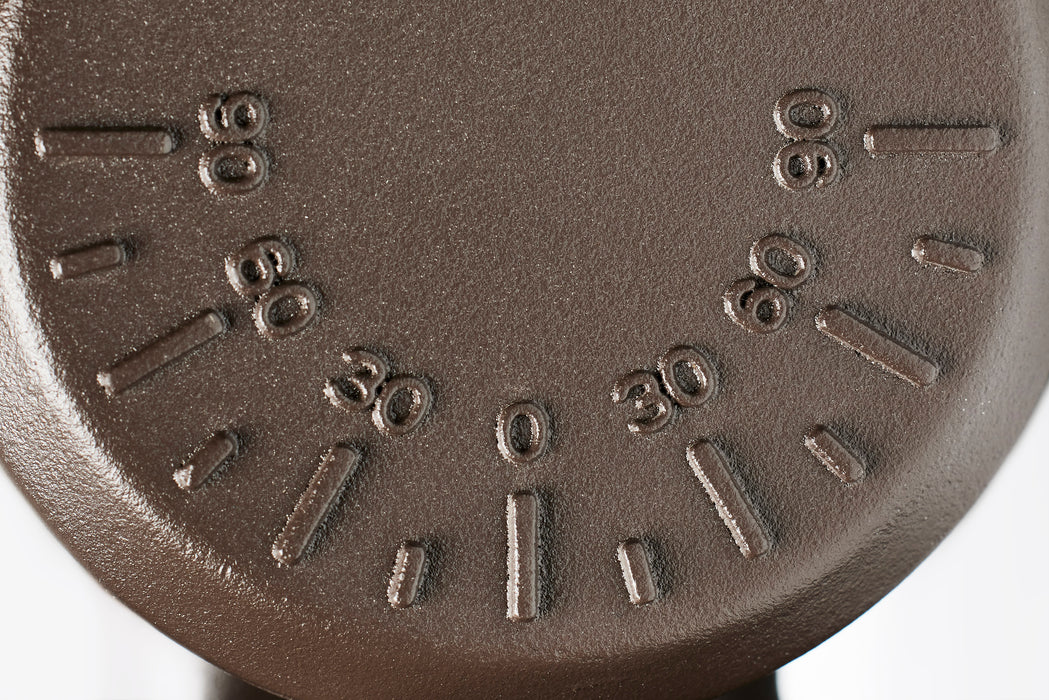

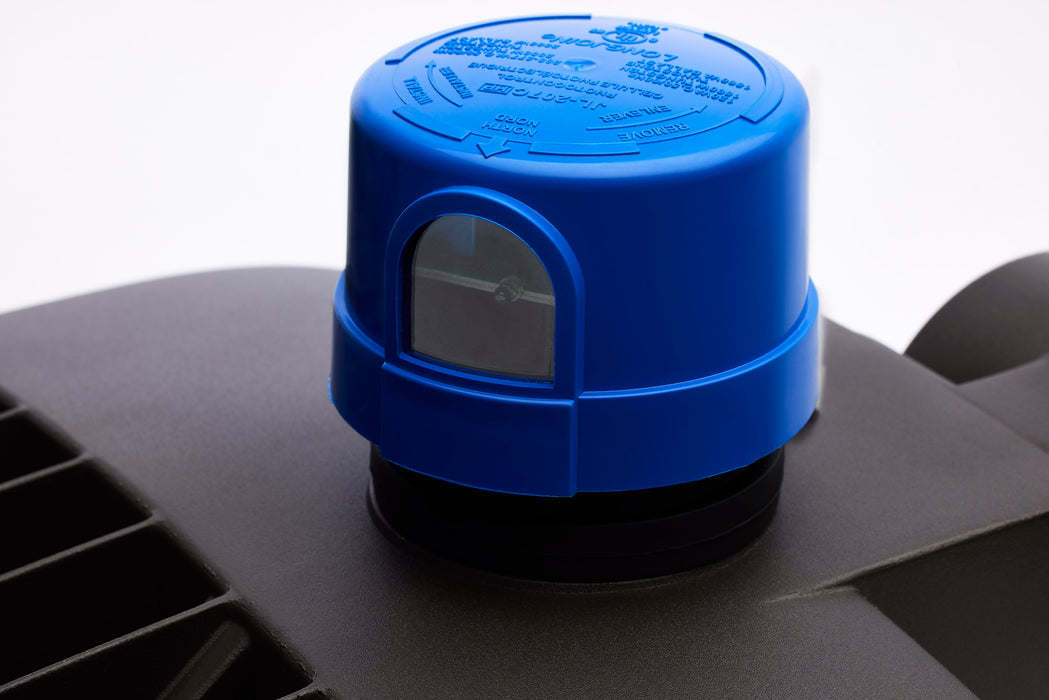

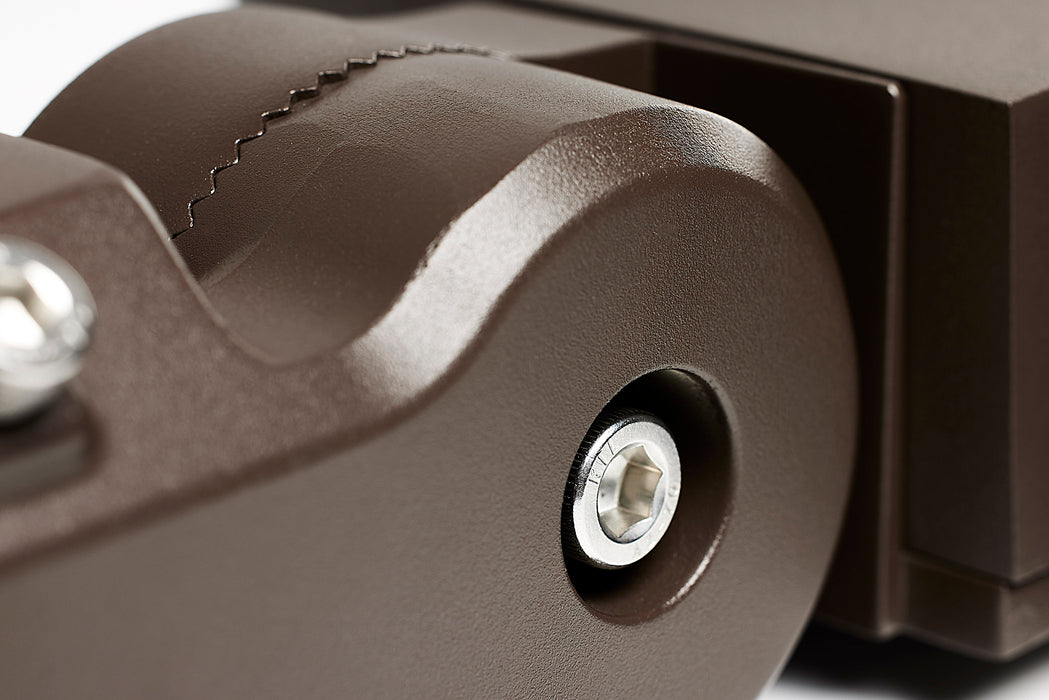

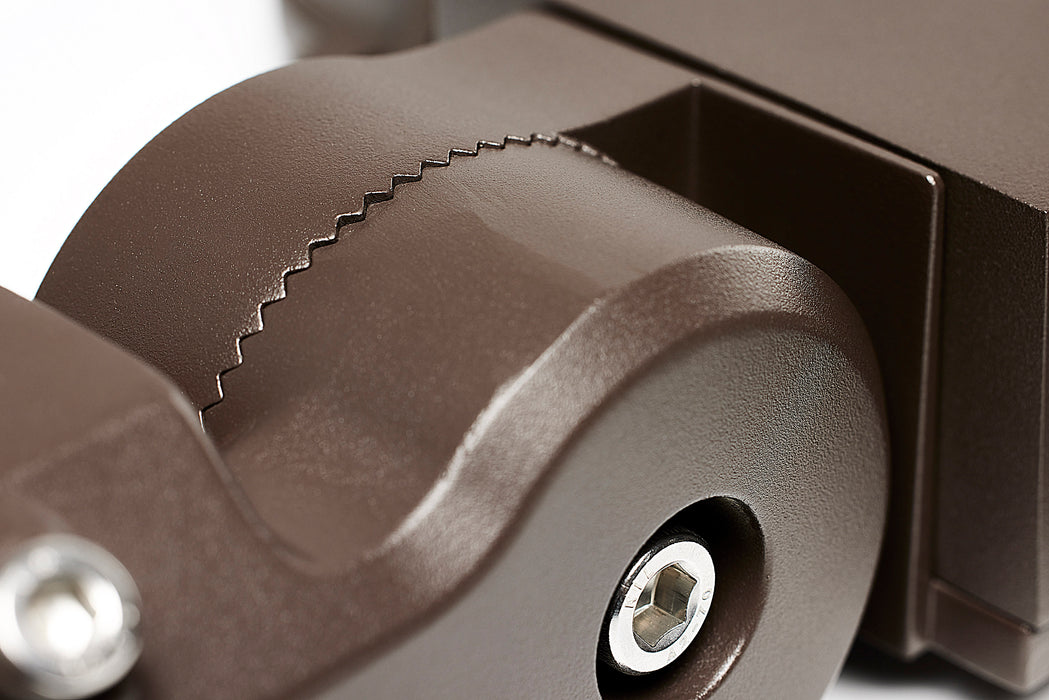

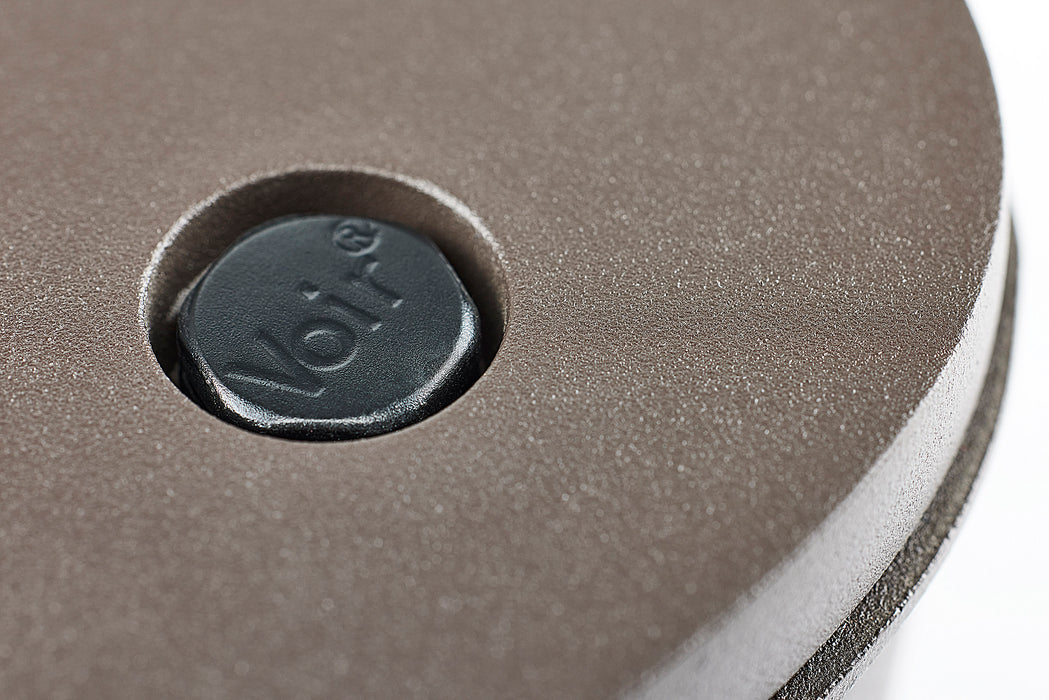

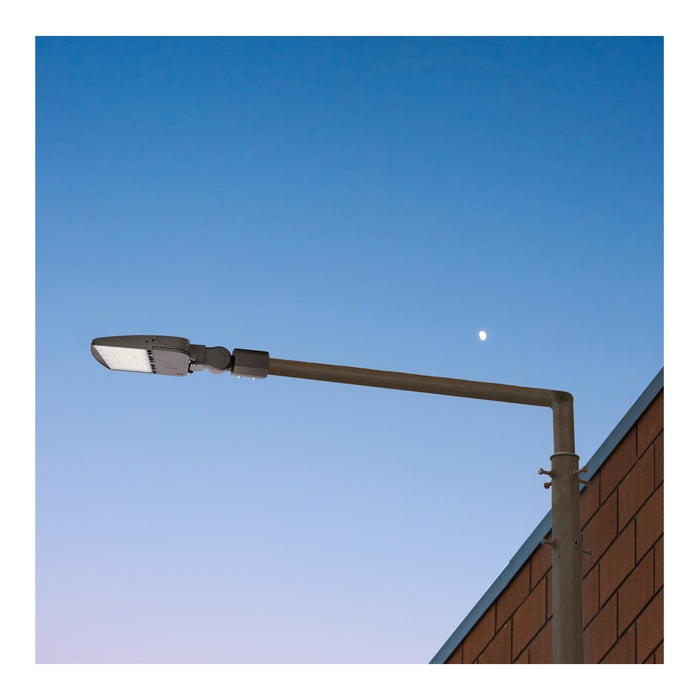

Mounting: Includes slip-fitter mount; optional photocell-ready
-

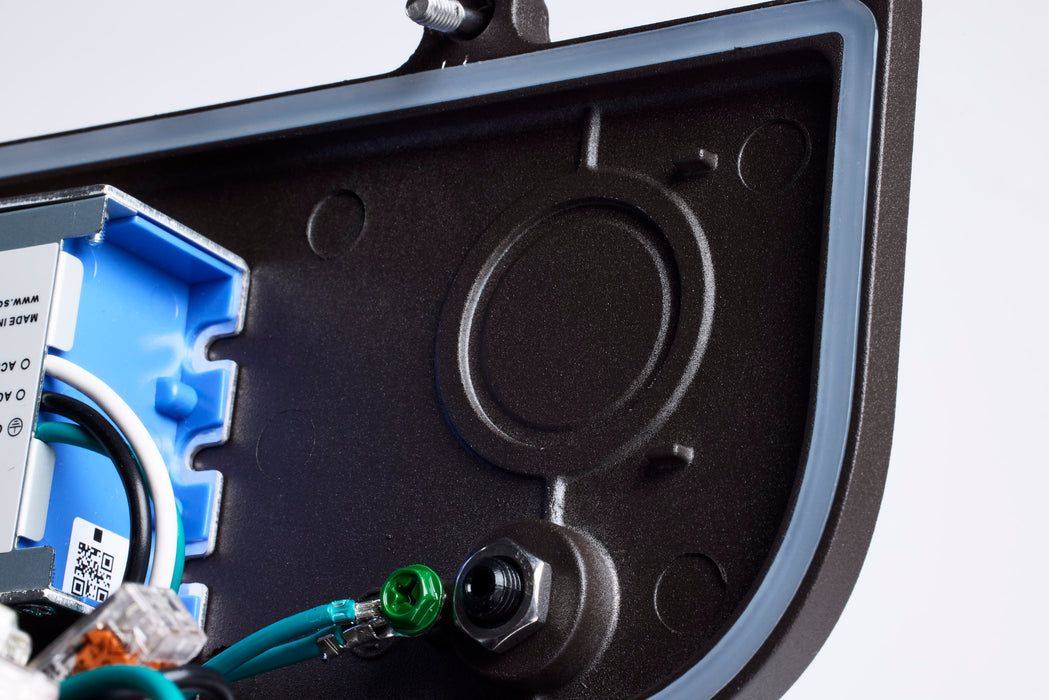

Protection: IP65 rated for wet locations; Built-in surge protection - 4KV
-
Lifespan: 50,000-hour rated L70 LED life
-
Operating Range: -40F to +113F (-40C to +45C); power factor >0.9
Ideal For: Parking Lot Perimeters • Wall-Mount Applications • Loading Docks • Building Exteriors • Storage Facilities
cULus - Certified, DLC qualified, FCC compliant, RoHS compliant. Suitable for wet locations.
