SATCO/NUVO 1X4 LED Backlit Flat Panel Wattage/CCT Selectable 20W/30W/40W 3500K/4000K/5000K 120-347V White (65-1673)

SATCO/NUVO 1X4 LED Backlit Flat Panel Wattage/CCT Selectable 20W/30W/40W 3500K/4000K/5000K 120-347V White 2-Pack Priced Per Each (65-1673)

SKU 65-1673
by SATCO/NUVO
$59.99 - $59.99
$119.98 case of 2
$59.99 each
Backorder: Usually Ships in 7-14 Days
Product Description

A 1x4 LED backlit flat panel with extended 120V–347V driver range, built for narrow-format ceiling runs on projects that need to cover both North American and Canadian commercial voltages with a single SKU.

Three wattage steps (20W / 30W / 40W) and three CCT options (3500K / 4000K / 5000K) keep the part number flexible across spec changes. Diffuse polystyrene optics and a 120° beam angle deliver consistent illumination along long corridors and galley spaces.

Features

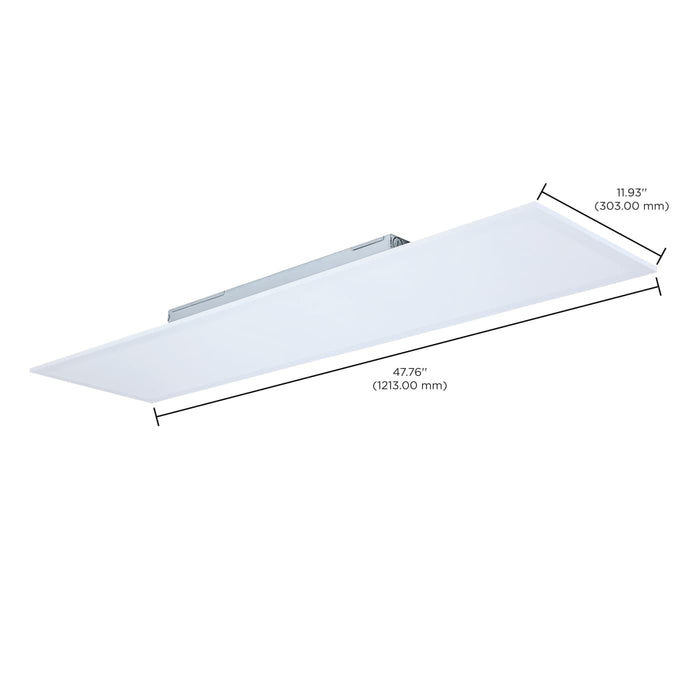

  • 1ft x 4ft rectangular LED backlit flat panel with integrated LED engine

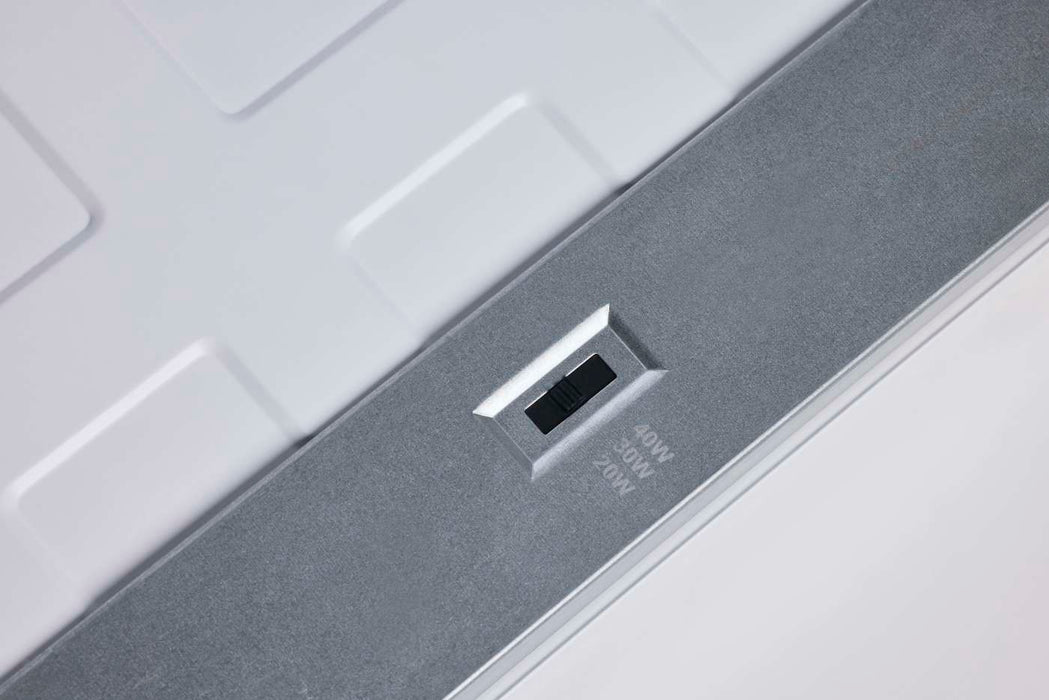

  • Selectable wattage: 20W / 30W / 40W
  • Selectable lumens: 2,500 / 3,750 / 5,000 lm

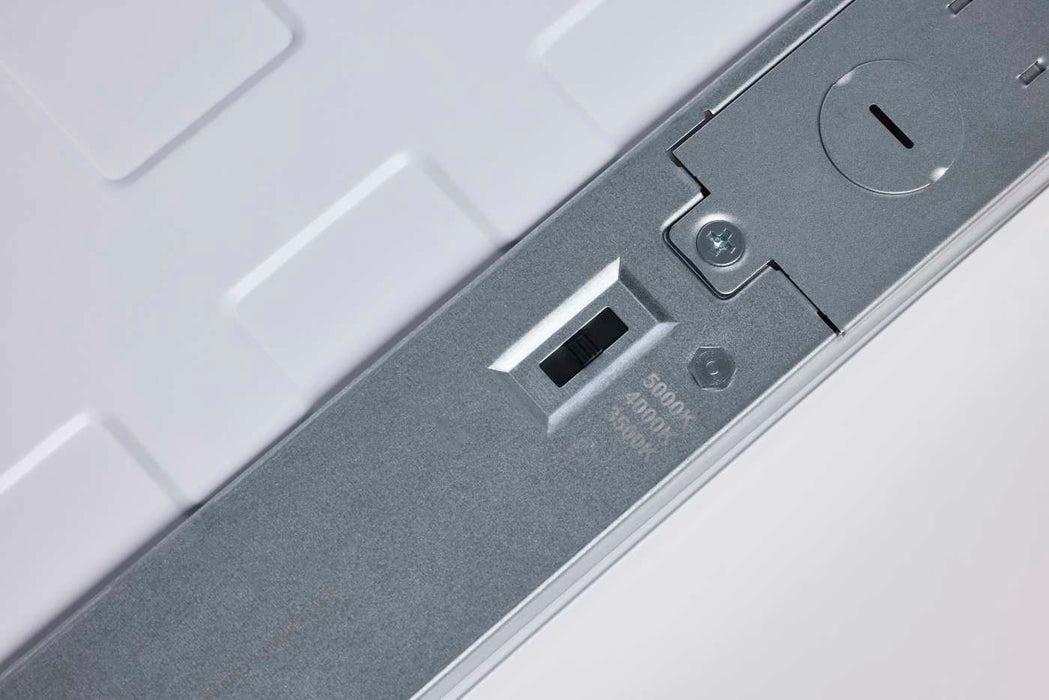

  • Selectable CCT: 3500K / 4000K / 5000K, 80+ CRI
  • Extended-range 120V–347V voltage, 0–10V dimming
  • 50,000-hour rated life, 120° beam angle
  • Built-in 2KV surge protection, <20% THD, 0.9 power factor
  • Die-cast aluminum housing, white finish, polystyrene lens

Ideal For: Cross-Border Projects • Corridors • Galley Kitchens • Equipment Aisles • Tenant Build-Outs

Integrated LED — no separate lamp required. IP20, damp location rated. cULus listed, DLC qualified, FCC compliant, ROHS compliant. CA Prop 65: Lead. Indoor use only.

Frequently Asked Questions
How bright is this product?
This product offers 2500/3750/5000 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product offers 3500-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 120V-347V and is compatible with a broad range of commercial electrical systems including applications that use 347V circuits. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product is dimmable allowing the light output to be adjusted when used with a compatible dimmer. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is damp location rated meaning it can be used in areas exposed to humidity or light moisture such as covered outdoor areas or bathrooms. It should not be exposed to direct water.
What is the beam angle of this product?
This product has a 120-degree beam angle, delivering a wide, directional spread of light for broad area illumination.
What is the CRI and how does it affect light quality?
This product has a CRI of 80, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
