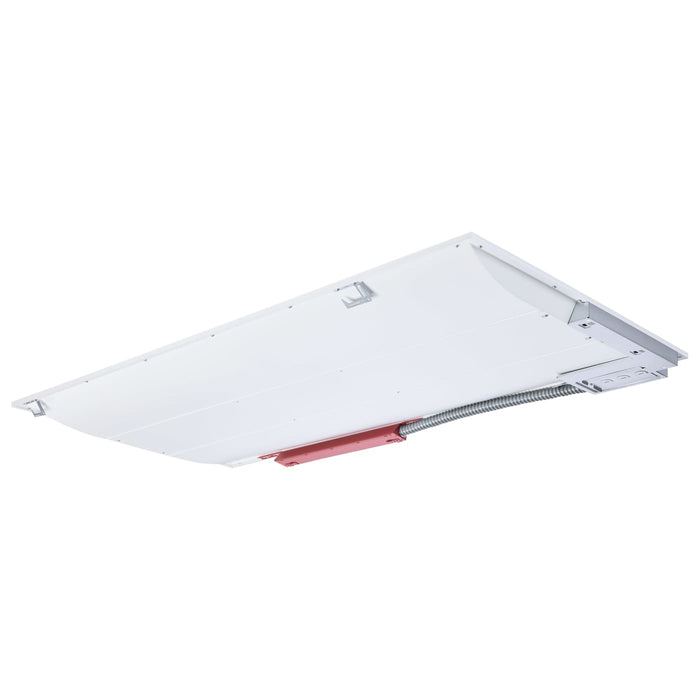

SATCO/NUVO 2X4 LED Single Basket Troffer Wattage/CCT Selectable 30W/40W/50W 3500K/4000K/5000K Emergency Battery 120-277V White Finish (65-1604)

The 65-1604 is a 2x4 LED single-basket troffer from Nuvo with integrated emergency battery backup, sized for the standard 2x4 grid module. Built for code-required emergency lighting integration in offices, schools, and healthcare facilities, with field-selectable wattage (30W/40W/50W) and CCT (3500K/4000K/5000K).

Lumen output ranges from 3,750 to 6,250 in normal operation, with the integrated battery providing emergency illumination during power loss. The steel housing carries a white finish and white polycarbonate lens; 0-10V dimming, 80+ CRI, 50,000 hour rated life, and 120-277V input round out the spec.

Features

• Integrated emergency battery backup for egress illumination
• Field-selectable 30W / 40W / 50W output

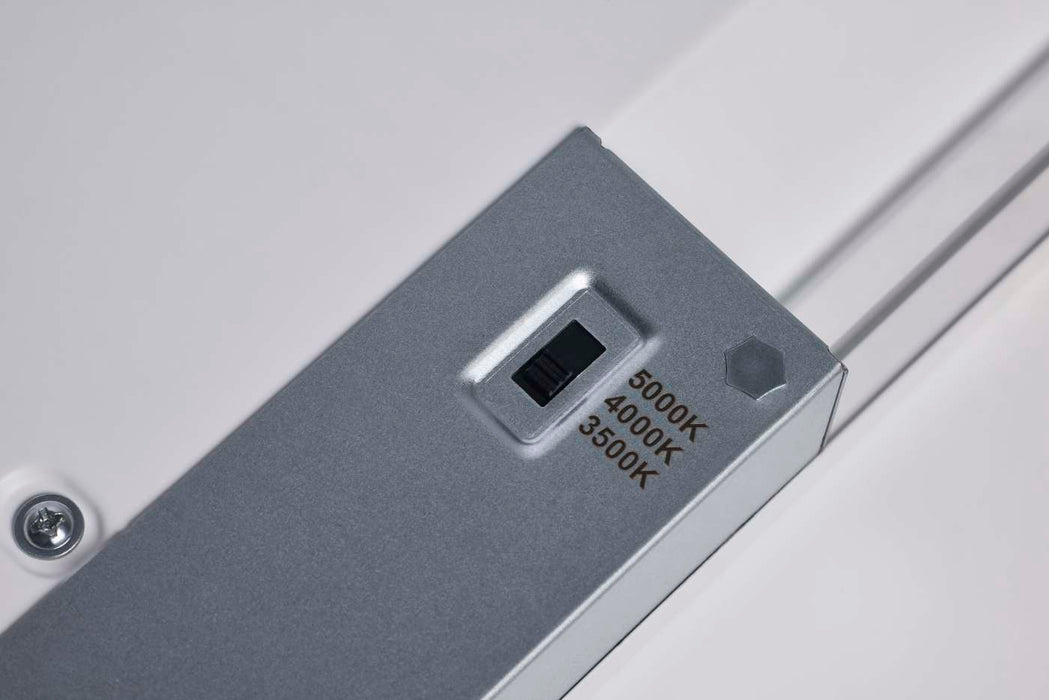

• Field-selectable 3500K / 4000K / 5000K CCT
• 3,750 / 4,500 / 6,250 lumens matched to wattage setting
• 80+ CRI; 50,000 hour rated life
• 120-277V input; 0-10V dimmable
• Built-in 2KV surge protection
• Steel housing with white polycarbonate lens; white finish
• 2x4 single-basket form factor; 120° beam angle

Ideal For: Offices • Classrooms • Healthcare Corridors • Retail Spaces • Commercial Egress Paths

Integrated LED – no separate lamp required. IC rated; damp location rated; IP20. cULus certified, DLC qualified, FCC compliant, ROHS compliant. Title 20 compliant. CA Prop 65 warning applies: Lead.
