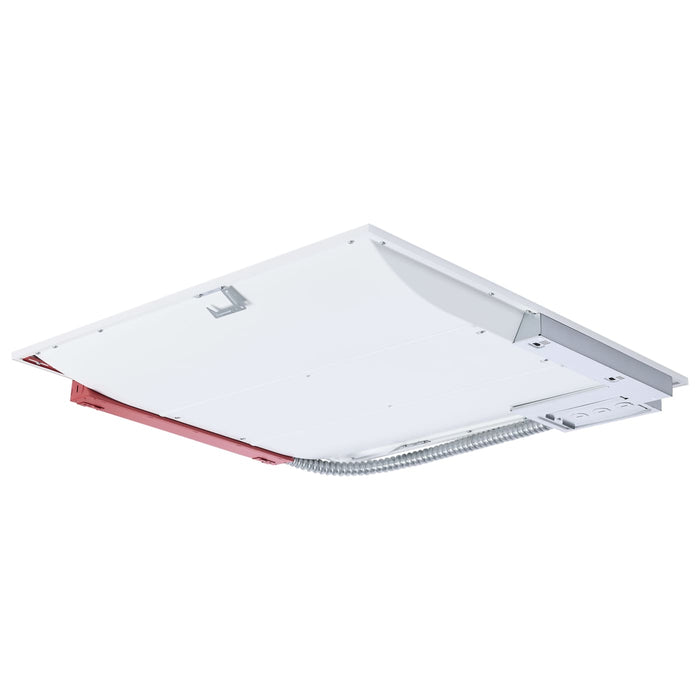

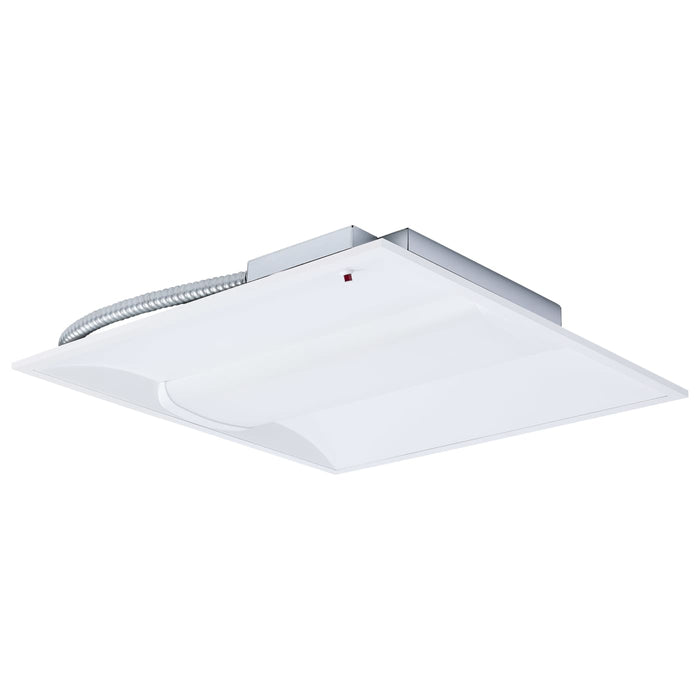

SATCO/NUVO 2X2 LED Single Basket Troffer Wattage/CCT Selectable 20W/30W/40W 3500K/4000K/5000K Emergency Battery 120-277V White Finish (65-1603)

The 65-1603 is a 2x2 LED single-basket troffer from Nuvo with integrated emergency battery backup, designed for commercial spaces where code-required egress lighting needs to be built directly into the ambient fixtures. Field-selectable wattage (20W/30W/40W) and CCT (3500K/4000K/5000K) keep specification flexible.

Lumen output ranges from 2,500 to 5,000 in normal operation, with the integrated battery providing emergency illumination during power loss. The steel housing carries a white finish with a white polycarbonate lens; 0-10V dimming, 80+ CRI, 50,000 hour rated life, and 120-277V input are included.

Features

• Integrated emergency battery backup for egress illumination

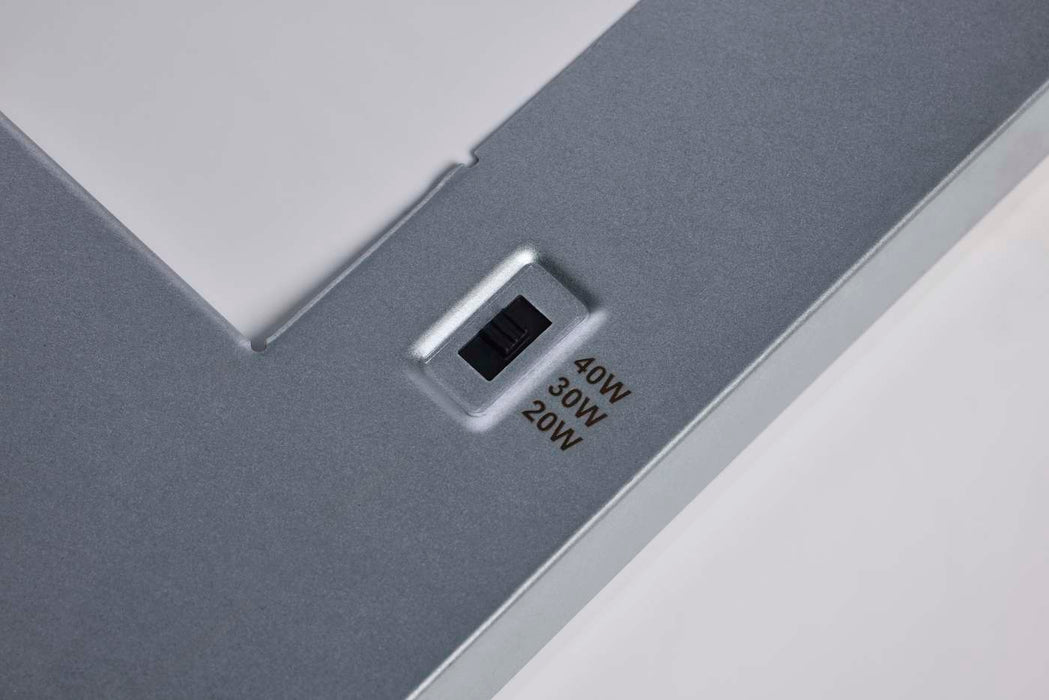

• Field-selectable 20W / 30W / 40W output

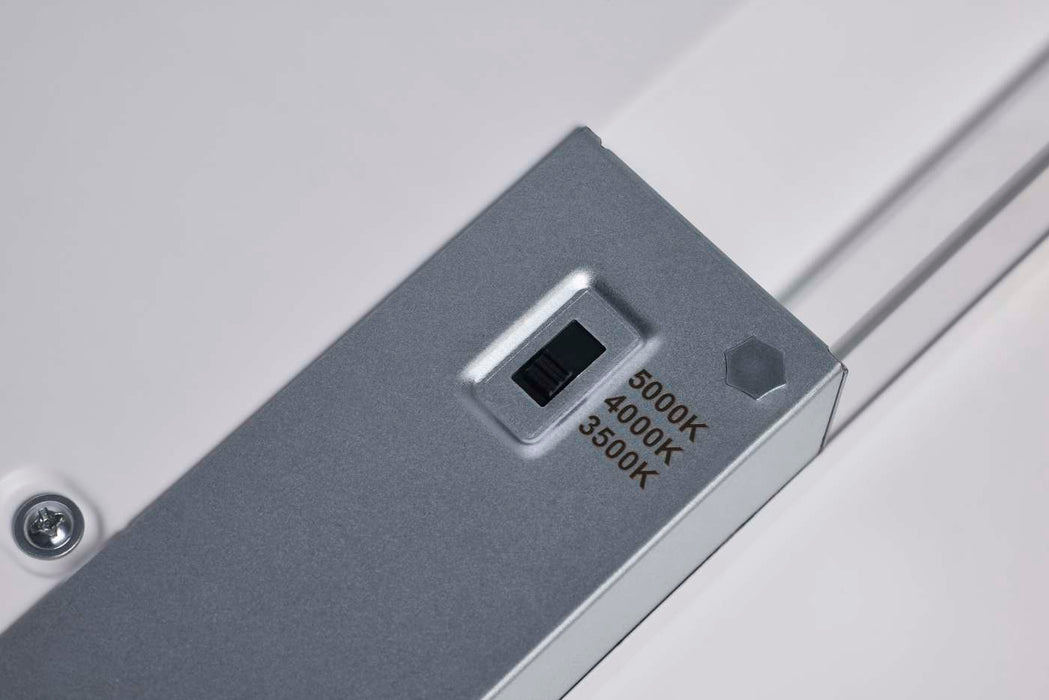

• Field-selectable 3500K / 4000K / 5000K CCT
• 2,500 / 3,750 / 5,000 lumens matched to wattage setting
• 80+ CRI; 50,000 hour rated life
• 120-277V input; 0-10V dimmable
• Built-in 2KV surge protection
• Steel housing with white polycarbonate lens; white finish
• 2x2 single-basket form factor; 120° beam angle

Ideal For: Offices • Schools • Healthcare Facilities • Corridors • Commercial Egress Paths

Integrated LED – no separate lamp required. IC rated; damp location rated; IP20. cULus certified, DLC qualified, FCC compliant, ROHS compliant. Title 20 compliant. CA Prop 65 warning applies: Lead.
