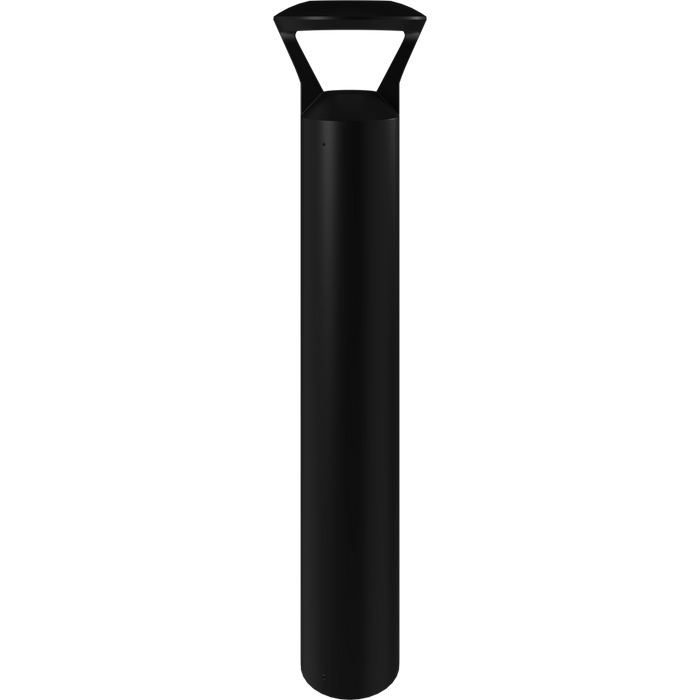

RAB Bollard B17 Wattage/CCT Selectable 24W/19W/14W 5000K/4000K/3000K Round Y-Hat Top On/Off Photocell Black (B17HB)

This black bollard uses a capped Y-hat head to direct field-adjustable landscape lighting straight down across walkways and plantings, keeping the LED hidden from view for lower glare at pedestrian eye level.

Both wattage and color temperature are set in the field at install, letting one bollard cover warm path-light runs or brighter parking lot settings without needing a different fixture. An integrated photocell handles dusk-to-dawn switching automatically, and 0-10V dimming lets a controller trim output further after hours.

Features

• Wattage: Field-selectable 24W / 19W / 14W (24W factory default)
• Color Temperature: Field-selectable 3000K / 4000K / 5000K (4000K factory default)
• Light Output: 2,050-3,591 lumens depending on wattage setting
• Efficacy: 146.5-154.1 lumens per watt
• Color Rendering: 72-75 CRI
• Input Voltage: 120-277V
• Dimming: 0-10V, down to 10%
• Photocell: Integrated with on/off switch
• Surge Protection: 4 kV
• Rated Life: 50,000 hours
• Housing: Die-cast aluminum
• Lens: Polycarbonate
• Ingress Protection: IP65 against dust and water
• Mounting: Three anchor bolts (round base)

Ideal For: Walkways • Parking Lot Islands • Landscape Borders • Courtyards • Business Parks

UL Listed for wet locations. Rated for cold-start down to -40°F and continuous use up to 113°F ambient.
