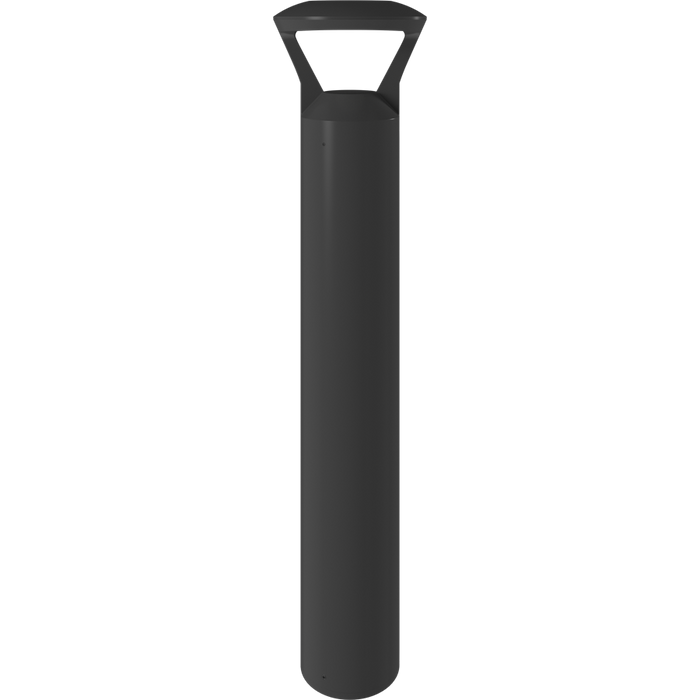

RAB Bollard B17 Wattage/CCT Selectable 24W/19W/14W 5000K/4000K/3000K Round Y-Hat Top Battery Backup Bronze (B17H/E)

This bronze bollard uses a capped Y-hat head to direct field-adjustable landscape lighting straight down across walkways and plantings, keeping the LED hidden from view for lower glare at pedestrian eye level.

Both wattage and color temperature are set in the field at install, letting one bollard cover warm path-light runs or brighter parking lot settings without needing a different fixture. An integrated photocell handles dusk-to-dawn switching automatically, and 0-10V dimming lets a controller trim output further after hours. Built-in battery backup keeps the fixture lit for 90 minutes during a power loss, meeting emergency egress code on walkways where darkness during an outage is a safety risk.

Features

• Wattage: Field-selectable 24W / 19W / 14W (24W factory default)
• Color Temperature: Field-selectable 3000K / 4000K / 5000K (4000K factory default)
• Light Output: 2,050-3,591 lumens depending on wattage setting
• Efficacy: 146.5-154.1 lumens per watt
• Color Rendering: 72-75 CRI
• Input Voltage: 120-277V
• Dimming: 0-10V, down to 10%
• Photocell: Integrated with on/off switch
• Surge Protection: 4 kV
• Battery Backup: 90-minute runtime at full output during a power loss
• Rated Life: 50,000 hours
• Housing: Die-cast aluminum
• Lens: Polycarbonate
• Ingress Protection: IP65 against dust and water
• Mounting: Three anchor bolts (round base)

Ideal For: Emergency Egress Paths • Hotel Grounds • Hospital Campuses • Parking Lot Islands • Code-Required Walkways

UL Listed for wet locations. Battery backup carries the fixture for 90 minutes at full output during a power loss. Cold-start rated down to 32°F; continuous use up to 113°F ambient.
