RAB LED Medium Area Light Type IV Wattage/CCT Selectable 150W/125W/100W 3000K/4000K/5000K Pole Mount 120-277V Bronze (A34T4M)

RAB LED Medium Area Light Type IV Wattage/CCT Selectable 150W/125W/100W 3000K/4000K/5000K Pole Mount 120-277V Bronze (A34T4M)

SKU RAB-A34T4M
by RAB
$464.00 - $464.00
$464.00
Backorder: Usually Ships in 4-7 Days
Product Description

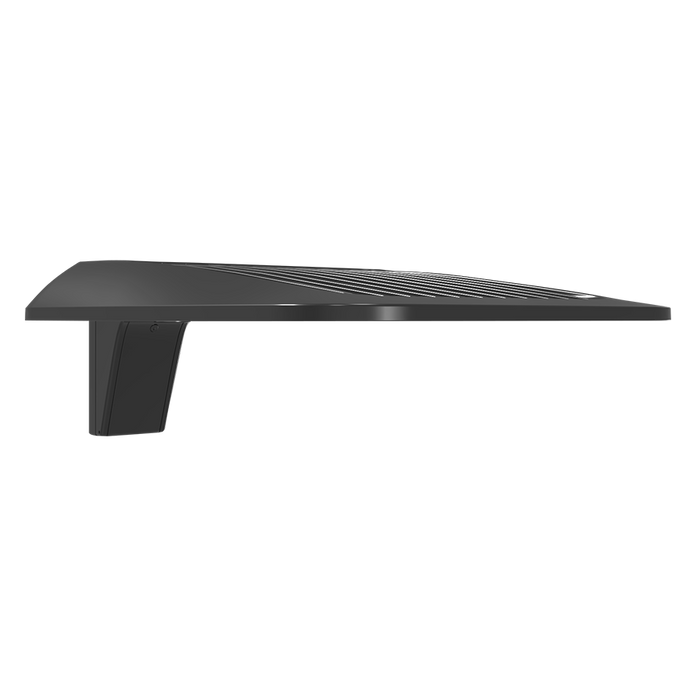

This pole-mount area light casts a Type IV forward-throw pattern across parking lots and perimeter zones from a bronze die-cast aluminum housing. Field-selectable output ranges from 100 to 150 watts with up to 24,630 lumens on a 120-277V circuit, and color temperature switches between 3000K, 4000K, and 5000K to match the site.

An integrated photocell handles dusk-to-dawn switching automatically, and 0-10V dimming down to 10% pairs with any standard 0-10V control system. At 150 watts, this fixture replaces up to 750W metal halide or 400W high-pressure sodium while holding L70 for 100,000 hours.

Features

  • Field-adjustable 150W/125W/100W (factory default 125W)
  • Field-selectable 3000K/4000K/5000K (factory default 4000K)
  • Type IV (Forward Throw) IES distribution
  • Up to 24,630 lumens at 179.9 lm/W efficacy
  • 82-84 CRI
  • 120-277V input, 0-10V dimming to 10%
  • Integrated dusk-to-dawn photocell
  • Universal mounting arm fits 1" to 5-1/2" hole spacing; round pole adapter included
  • Surge protection: 6kV L-L / 6kV L/N-G
  • Clear polycarbonate lens, die-cast aluminum housing, Bronze finish
  • EPA: 0.3
  • L70 rated for 100,000 hours

Ideal For: Parking Lots • Perimeter Lighting • Roadways • Loading Docks • Storage Yards

UL Listed for wet locations. IP65 rated for dust and water. Cold-start rated to -40°F. Suitable for use in ambient temperatures up to 104°F. 3G ANSI C136.31 vibration rating.

Frequently Asked Questions
What color temperature is this product?
This product offers 3000-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is wet location rated and can be used in areas with direct exposure to rain or water including outdoor applications.
Is this product UL listed?
This product is UL Listed meaning it has been tested and certified by Underwriters Laboratories to meet established safety standards.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 80, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
