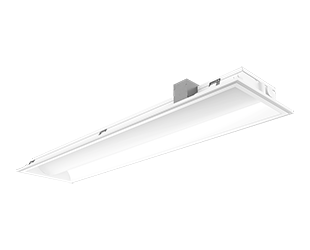

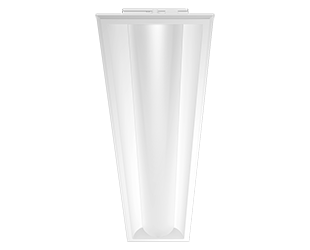

RAB C-Swish 1X4 Center Basket Troffer Wattage/CCT Selectable 20W/25W/30W 3500K/4000K/5000K 120-277V 0-10V Dimming Microwave Occupancy Sensor/Battery Backup White (C-SWISH1X4/MVS/E)

RAB C-Swish 1X4 Center Basket Troffer Wattage/CCT Selectable 20W/25W/30W 3500K/4000K/5000K 120-277V 0-10V Dimming Microwave Occupancy Sensor/Battery Backup White (C-SWISH1X4/MVS/E)

SKU C-SWISH1X4/MVS/E
by RAB
$215.00 - $215.00
$215.00
Backorder: Usually Ships in 4-7 Days
Product Description

This 1-foot by 4-foot C-Swish center-basket LED troffer drops into a standard grid ceiling and runs on field-adjustable wattage and color temperature, pairing a built-in microwave occupancy sensor with a 90-minute emergency battery backup so the panel runs lights-out automation during normal operation and stays lit during a power failure.

The 120-277V driver covers most commercial and institutional circuits without a swap, and 0-10V dimming down to 10% ties into standard building-management systems for daylight harvesting or scheduled scene control. An integral side reflector spreads light evenly across the center-basket diffuser.

Features

  • Size: 1' x 4' recessed grid-ceiling troffer
  • Field-Adjustable Wattage: 30W / 25W / 20W, factory default 30W
  • Field-Adjustable Color Temperature: 3500K / 4000K / 5000K, factory default 4000K
  • Lumen Output: 2,661–4,028 lumens depending on wattage and CCT setting
  • Efficacy: 131.2–137.9 lumens per watt
  • Color Accuracy: 84–85 CRI
  • Lifespan: 100,000-hour rated LED lifespan
  • Voltage: 120-277V input
  • Dimming: 0-10V dimming down to 10%
  • Emergency Battery Backup: 90-minute runtime at power loss, wired for 120-277V
  • Occupancy Sensor: 5.8GHz high-frequency microwave, 26-foot detection diameter at 16-foot mounting height, programmable time delay and dimming cut-off
  • Mounting: Recessed grid ceiling

Ideal For: Offices • Classrooms • Corridors • Retail Spaces • Healthcare Interiors

UL Listed for damp locations. IC rated for direct contact with insulation.

Frequently Asked Questions
What color temperature is this product?
This product offers 3500-5000 Selectable color temperature options, allowing you to adjust the light output to your preferred tone from the available settings.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Can this product be used in damp or outdoor locations?
This product is rated for dry or damp locations and can be used indoors or in covered outdoor areas where it is not directly exposed to water.
Is this product UL listed?
This product is UL Listed meaning it has been tested and certified by Underwriters Laboratories to meet established safety standards.
Is this product DLC listed and eligible for rebates?
This product is DLC listed meaning it meets DesignLights Consortium performance standards and may qualify for utility rebate programs depending on local utility requirements. Consult with your local energy company to confirm DLC compatibility and programs.
