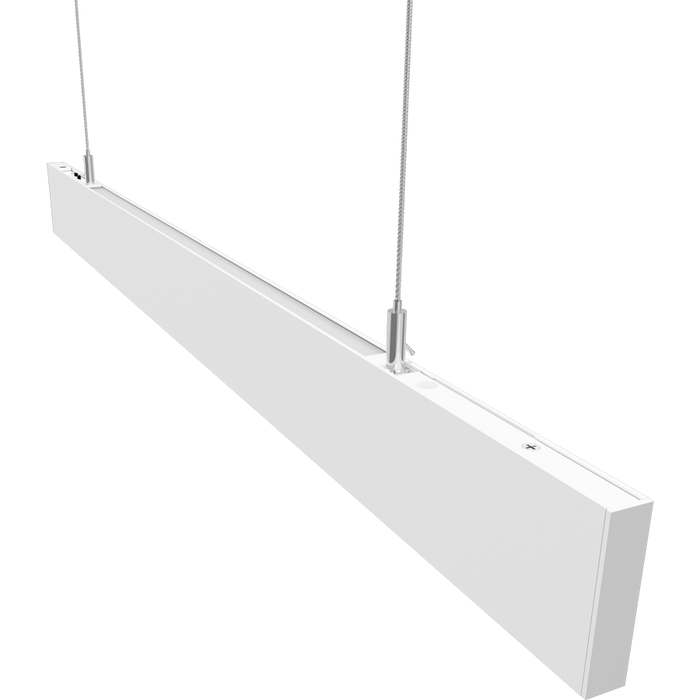

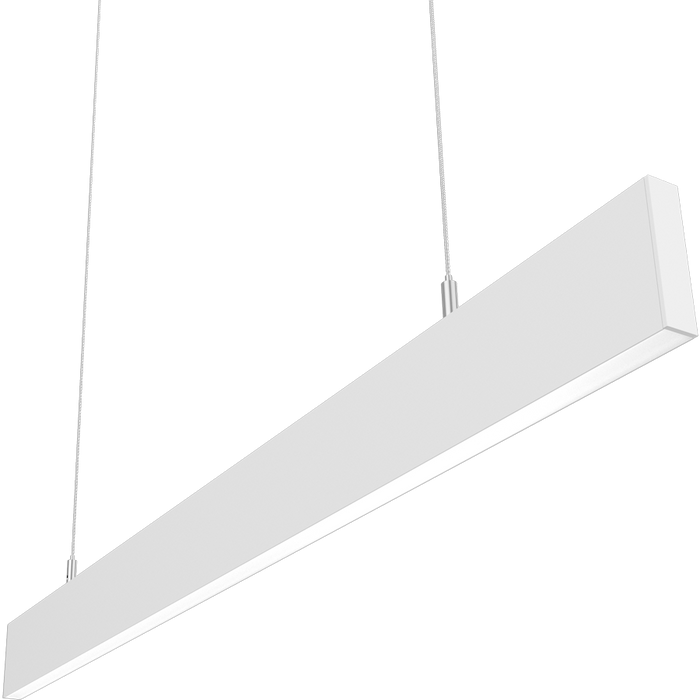

RAB BOA Edge 3 Foot Uplight/Downlight Maximum 30W CCT Selectable 3000K/3500K/4000K 120-277V 0-10V Dimming Pendant Mount Flat White (BOAE3PUW)

This 3-foot linear pendant delivers both uplight and downlight from a single flat white housing, well-suited to open offices, conference rooms, and reception areas where a mix of task light and softer ceiling fill improves how the whole space reads. A five-position power preset splits output between the top and bottom emitters, and three color-temperature settings adjust warmth to the room — one SKU covers a range of application needs.

Total output is field-adjustable between 30W or 15W, and fixtures can be chained end-to-end up to a 600-watt total for continuous runs. The fixture ships with 94 inches of aircraft cable and adjustable grippers for easy leveling after install, and 0-10V dimming carries down to 10% for lower-light modes.

Features

• Length: 3 feet
• Field-Adjustable Output: 30W or 15W (factory default 30W)
• Power Preset: 100/0 (downlight only), 70/30, 60/40, 50/50, or 0/100 (uplight only)
• Selectable CCT: 3000K, 3500K, or 4000K (factory default 4000K)
• Light Output: 3,916 to 4,214 lumens, depending on preset and CCT
• Efficacy: up to 141.1 lumens per watt
• Color Accuracy: 93-95 CRI
• Dimming: 0-10V, down to 10%
• Continuous Runs: Chain end-to-end up to 600 watts total
• Mounting: Pendant with 94 inches of aircraft cable and adjustable grippers
• Lens: Frosted polycarbonate
• Housing: Sheet metal and extruded aluminum
• Lifespan: 100,000-hour L70
• Finish: Flat White

Ideal For: Open Offices • Conference Rooms • Reception Areas • Retail Displays • Hospitality Lobbies

UL Listed for damp locations. IP20 rated for indoor use. Cold-weather starting to -4°F. Suitable for use in ambient temperatures up to 104°F.
