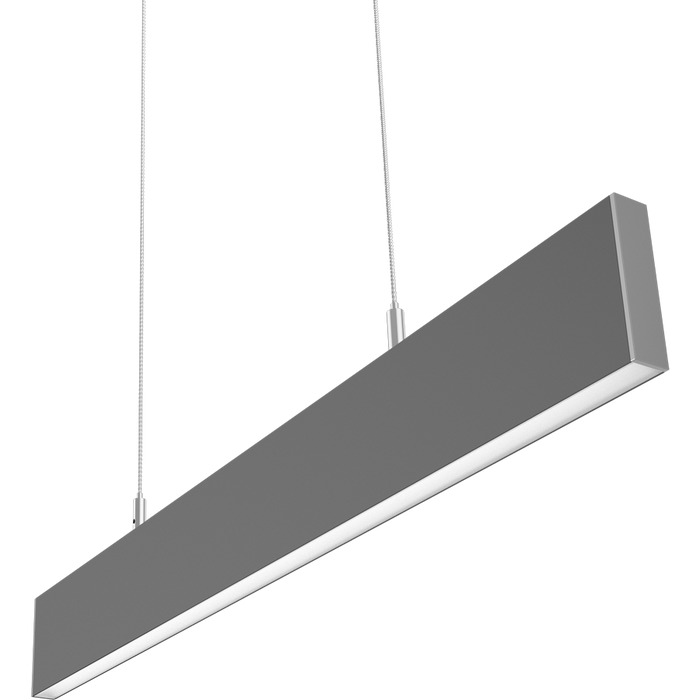

RAB BOA Edge 2 Foot Downlight Wattage/CCT Selectable 20W/14W/12W/10W/6W 3000K/3500K/4000K 120-277V 0-10V Dimming Pendant Mount Flat Silver (BOAE2PS)

This 2-foot linear pendant delivers field-adjustable downlight from a slim flat silver housing, well-suited to kitchen islands, retail counters, open offices, and conference tables where even, high-CRI light matters. Five output steps and three color-temperature settings tune the fixture to the room without swapping SKUs — one part number covers a range of brightness and warmth targets.

Fixtures can be chained end-to-end up to a 600-watt total for continuous runs across long surfaces, and the fixture ships with 94 inches of aircraft cable and adjustable grippers for easy leveling after install. A frosted polycarbonate lens softens the output into a smooth line of light, and 0-10V dimming carries down to 10% for lower-light modes.

Features

• Length: 2 feet
• Field-Adjustable Output: 20, 14, 12, 10, or 6 watts (factory default 20W)
• Selectable CCT: 3000K, 3500K, or 4000K (factory default 3500K)
• Light Output: 648 to 2,647 lumens, depending on wattage and CCT
• Efficacy: 111.7 to 132.7 lumens per watt
• Color Accuracy: 93-95 CRI
• Dimming: 0-10V, down to 10%
• Continuous Runs: Chain end-to-end up to 600 watts total
• Mounting: Pendant with 94 inches of aircraft cable and adjustable grippers
• Lens: Frosted polycarbonate
• Housing: Sheet metal and extruded aluminum
• Lifespan: 100,000-hour L70
• Finish: Flat Silver

Ideal For: Kitchen Islands • Retail Counters • Open Offices • Conference Tables • Reception Areas

UL Listed for damp locations. IP20 rated for indoor use. Cold-weather starting to -4°F. Suitable for use in ambient temperatures up to 104°F.
