Product Description

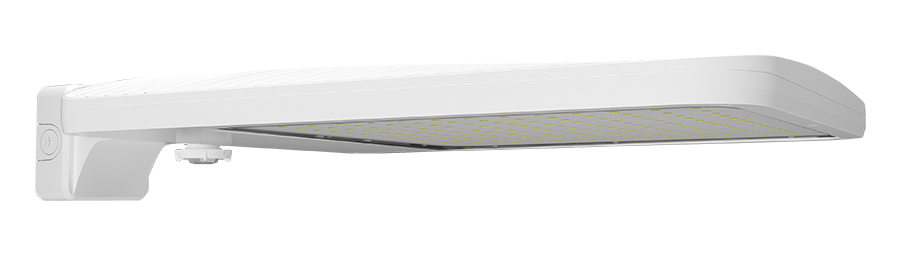

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking lots, service drives, loading zones, and large commercial sites without requiring a pole. Field-adjustable output lets a single fixture run at 300W, 345W, or 385W — one SKU covers three light levels, with the factory default set to 385W.
At the top wattage, the fixture puts out 48,952 lumens of 5000K cool white light with Car Dealership optics tuned for wide coverage and controlled backspill toward the street. A factory-installed WattStopper multi-level motion sensor with a 20-foot detection lens turns the fixture up on motion and down (or off) during inactivity, cutting off-hours energy while keeping the site lit when needed. The 180-degree viewing angle sweeps the full length of the wall from one fixture, and 10kV line-to-line surge protection is built in. The die-cast aluminum housing carries a 3G vibration rating per ANSI C136.31 and a -40°F cold-start minimum for round-the-year outdoor service.
Features
-
Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
-
Lumens: 40,973 / 44,021 / 48,952 across the 300W, 345W, and 385W settings
-
Color Temperature: 5000K Cool
-
CRI: 85
-
Input Voltage: 480V
-
Dimming: 0-10V dimmable down to 10%
-
Controls: WattStopper multi-level motion sensor with 20-foot detection lens, 180-degree viewing angle
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Equivalent: Replaces 1,500W metal halide
-
Lifespan: 100,000 hours (L70)
-
Housing: Die-cast aluminum, white finish
-
Mount: Wall
Ideal For: Parking Lots • Service Drives • Loading Zones • Car Dealerships • Commercial Building Exteriors
UL Listed for wet locations. IP66 ingress protection. -40°F cold-start minimum. Rated for ambient temperatures up to 104°F. 3G vibration rating per ANSI C136.31.
