Product Description

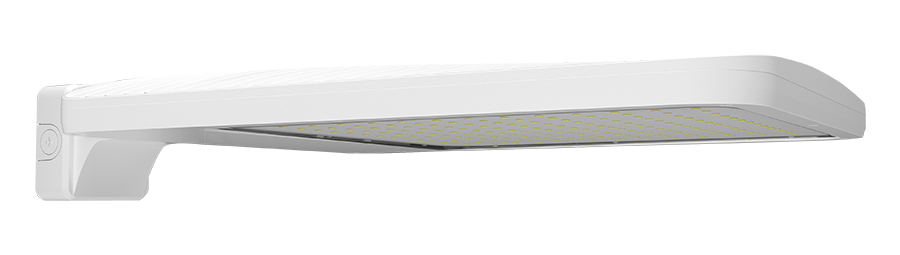

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking lots, service drives, loading zones, and large commercial sites without requiring a pole. Field-adjustable output lets a single fixture run at 300W, 345W, or 385W — one SKU covers three light levels, with the factory default set to 385W.
At the top wattage, the fixture puts out 48,952 lumens of 5000K cool white light with Car Dealership optics tuned for wide coverage and controlled backspill toward the street. A top-mounted ANSI C136.41 7-pin receptacle accepts wireless control nodes from most major networked lighting platforms, so a connected system can switch, dim, and report over 0-10V without opening the fixture. 10kV line-to-line surge protection is built in. The die-cast aluminum housing carries a 3G vibration rating per ANSI C136.31 and a -40°F cold-start minimum for round-the-year outdoor service.
Features
-
Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
-
Lumens: 40,973 / 44,021 / 48,952 across the 300W, 345W, and 385W settings
-
Color Temperature: 5000K Cool
-
CRI: 85
-
Input Voltage: 480V
-
Dimming: 0-10V dimmable down to 10%
-
Controls: ANSI C136.41 7-pin receptacle for a wireless control node (sold separately)
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Equivalent: Replaces 1,500W metal halide
-
Lifespan: 100,000 hours (L70)
-
Housing: Die-cast aluminum, white finish
-
Mount: Wall
Ideal For: Parking Lots • Service Drives • Loading Zones • Car Dealerships • Commercial Building Exteriors
UL Listed for wet locations. IP66 ingress protection. -40°F cold-start minimum. Rated for ambient temperatures up to 104°F. 3G vibration rating per ANSI C136.31.
