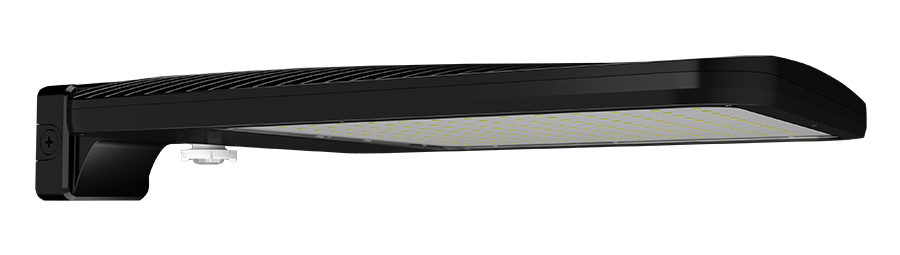

RAB ALED 300W-345W-385W At 5000K Wall Mount WS Sensor 40 Foot Lens Black (ALEDXLATWMB/WS4)

RAB ALED 300W-345W-385W At 5000K Wall Mount WS Sensor 40 Foot Lens Black (ALEDXLATWMB/WS4)

SKU ALEDXLATWMB/WS4
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts directly to a wall or vertical building surface, delivering field-adjustable output of 300, 345, or 385 watts so one fixture tunes to the lighting level each site needs. At full 385-watt output it puts out up to 48,600 lumens of 5000K cool white light at 85 CRI, enough coverage to replace a 1,500-watt metal halide across parking areas, loading docks, and large service yards without requiring a pole.

The black die-cast aluminum housing recedes against dark backgrounds and matches modern commercial trim. A 120-277V multi-tap driver handles standard commercial power, with 0-10V dimming down to 10 percent for scheduled dimming or integration with a lighting control system. A WattStopper multi-level motion sensor with a 40-foot detection lens dims the fixture during low-activity periods and ramps it back to full output when motion is detected across a wider zone, cutting off-hours energy while keeping the site lit.

Features

  • Field-Adjustable Wattage: 300W / 345W / 385W, factory default 385W
  • Light Output: 39,199 to 48,635 lumens across the three wattage steps at 5000K
  • Efficacy: up to 134.6 lumens per watt
  • Color Accuracy: 85 CRI
  • Lifespan: 100,000-hour L70 LED life
  • Dimming: 0-10V, down to 10 percent
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Driver: 120-277V multi-tap, constant current, non-Class 2, 50/60 Hz
  • Motion Sensor: WattStopper multi-level with 40-foot detection lens, 180° viewing angle
  • Optics: Wide distribution with intentional hot spot, aluminum reflector with white polycarbonate
  • Ingress Protection: IP66 against dust and water
  • Housing: Die-cast aluminum with polycarbonate lens
  • Finish: Black, durable powder coat
  • Vibration: 3G rating per ANSI C136.31
  • Mounting: Direct wall mount

Ideal For: Parking Lots • Loading Docks • Service Yards • Industrial Sites • Dealership Lots • Wall Pack Replacements

UL Listed for wet locations with IP66 ingress protection. Rated for -40°F cold starts and 104°F maximum ambient. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39199/42068/48635 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
