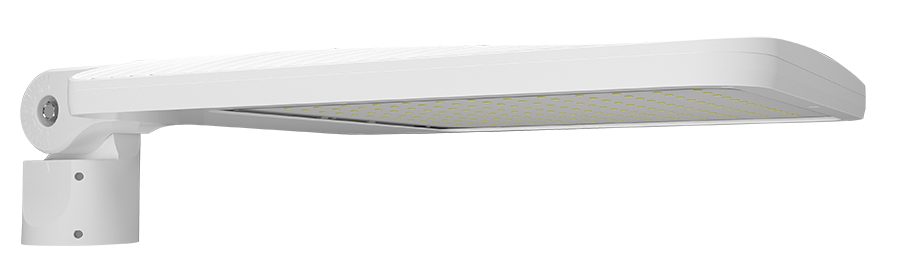

RAB ALED 300W-345W-385W At 5000K With Slipfitter White (ALEDXLATSFW)

RAB ALED 300W-345W-385W At 5000K With Slipfitter White (ALEDXLATSFW)

SKU ALEDXLATSFW
by RAB
$1,683.00 - $1,683.00
$1,683.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra large ALED area light delivers up to 48,635 lumens of cool 5000K light across parking lots, dealership front rows, and large commercial sites. RAB's Car Dealership optic spreads a wide beam with an intentional front-row hot spot — eye-catching where it matters, with reduced backspill toward the street. A 2-3/8 inch slipfitter mount with stainless steel hardware and 5-degree tilt increments lets installers aim the beam, and the white die-cast aluminum housing with polycarbonate lens is built for outdoor use, with LEDs rated for 100,000-hour L70 life.

Output is selectable on the fixture between 300, 345, and 385 watts, so one SKU covers a range of pole heights and lighting plans. Standard 0-10V dimming reaches 10%, and the universal 120-277V driver covers common commercial voltage ranges.

Features

  • Light output: 39,199 / 42,068 / 48,635 lumens at 300W / 345W / 385W settings
  • Color temperature: 5000K cool, 85 CRI
  • Field-selectable wattage: 300W / 345W / 385W (factory default 385W)
  • Dimming: 0-10V dimmable down to 10%
  • Input voltage: 120-277V
  • Optic: Car Dealership distribution (wide beam with front-row hot spot)
  • Mount: 2-3/8" slipfitter with stainless steel hardware
  • Tilt: Adjustable in 5-degree increments
  • Housing: Die-cast aluminum with white finish
  • Lens: Polycarbonate
  • Surge protection: 10 kV line-to-line, 6 kV line-to-ground
  • Lifespan: 100,000-hour L70
  • Replaces: Up to 1,500W metal halide

Ideal For: Car Dealerships • Parking Lots • Auto Service Drives • Commercial Properties • Industrial Yards • Large Retail Lots

UL Listed and suitable for wet locations. IP66 rated against dust and water. Cold-start to -40°F, rated for 104°F max ambient, and 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39199/42068/48635 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
