RAB ALED 300W-345W-385W At 5000K With Slipfitter WS Sensor 40 Foot Lens Bronze (ALEDXLATSF/WS4)

RAB ALED 300W-345W-385W At 5000K With Slipfitter WS Sensor 40 Foot Lens Bronze (ALEDXLATSF/WS4)

SKU ALEDXLATSF/WS4
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

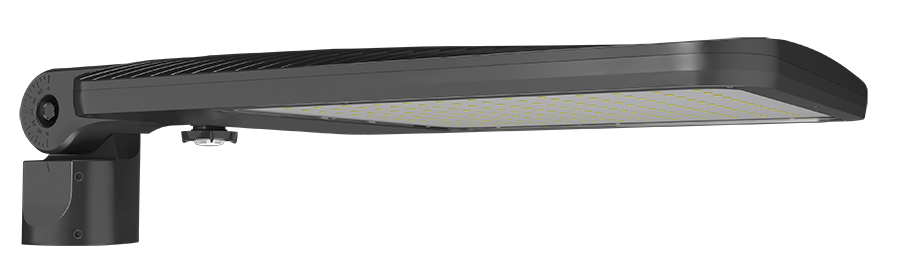

This extra-large ALED field-adjustable area light slides onto a standard 2-3/8 inch tenon at the top of a straight pole, delivering up to 48,635 lumens of 5000K cool white across parking lots, car dealerships, service drives, and large commercial sites. Field-selectable wattage lets one fixture cover a range of lighting plans — choose 300W, 345W, or 385W to match pole spacing and target illuminance, replacing 1,500W metal halide heads at roughly a quarter of the energy.

A die-cast aluminum housing seals the optics against dust and water at IP66 behind a polycarbonate lens, and the slipfitter rotates in 5-degree increments to aim the beam precisely at the parking surface or facade. Car dealership optics throw a wide, intentionally hot-spotted distribution that pushes eye-catching light onto the front row of vehicles while limiting backspill toward the street. A factory-installed WattStopper multi-level motion sensor dims the fixture during low-activity periods and ramps back to full output on motion, with a 180-degree viewing angle and a 40-foot detection diameter.

Features

  • Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
  • CCT: 5000K cool white
  • Lumens: 48,635 at 385W • 42,068 at 345W • 39,199 at 300W
  • Efficiency: Up to 134.6 lumens per watt, 85 CRI
  • Equivalency: Replaces 1,500W metal halide heads
  • Mount: 2-3/8 inch slipfitter with stainless steel hardware, rotates in 5-degree increments
  • Voltage: 120-277V
  • Dimming: 0-10V dimmable down to 10 percent
  • Occupancy Sensing: Factory-installed WattStopper multi-level motion sensor, 180-degree view, 40-foot detection diameter
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Finish: Bronze
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Lifespan: 100,000-hour L70

Ideal For: Parking Lots • Car Dealerships • Service Drives • Industrial Yards • Large Commercial Properties

UL Listed for wet locations with an IP66 ingress rating. Cold-starts to -40°F and operates in ambient temperatures up to 104°F. 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39199/42068/48635 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
