Product Description

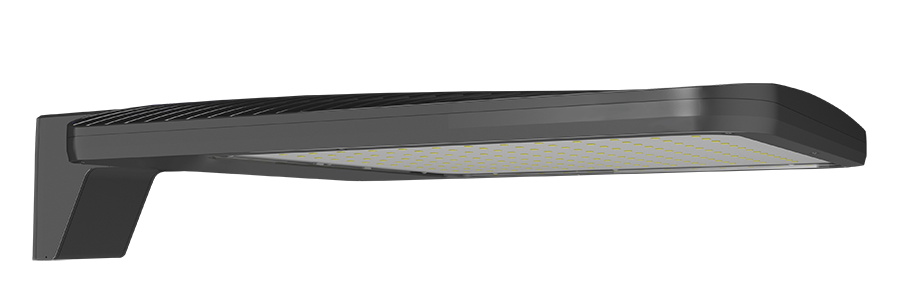

This extra-large ALED field-adjustable area light mounts on a universal arm to a square or round pole, wired for 480V service and delivering up to 50,022 lumens of 4000K neutral white across parking lots, car dealerships, service drives, and large commercial sites. Field-selectable wattage lets one fixture cover a range of lighting plans — choose 300W, 345W, or 385W to match pole spacing and target illuminance, replacing 1,500W metal halide heads at roughly a quarter of the energy.
A die-cast aluminum housing seals the optics against dust and water at IP66 behind a polycarbonate lens, with car dealership optics throwing a wide, intentionally hot-spotted distribution that pushes eye-catching light onto the front row of vehicles while limiting backspill toward the street. Integrated 10kV/6kV surge protection and 0-10V dimming down to 10 percent drop the fixture into standard site-lighting controls without an added surge module.
Features
-
Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
-
CCT: 4000K neutral white
-
Lumens: 50,022 at 385W • 44,525 at 345W • 41,422 at 300W
-
Efficiency: Up to 141.8 lumens per watt, 83 CRI
-
Equivalency: Replaces 1,500W metal halide heads
-
Mount: Universal arm with slide-and-lock, hole-spacing patterns from 1 inch to 3 inch center-to-center (round-pole adapter included)
-
Voltage: 480V
-
Dimming: 0-10V dimmable down to 10 percent
-
Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
-
Finish: Bronze
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Lifespan: 100,000-hour L70
Ideal For: Parking Lots • Car Dealerships • Service Drives • Industrial Yards • Large Commercial Properties
UL Listed for wet locations with an IP66 ingress rating. Cold-starts to -40°F and operates in ambient temperatures up to 104°F. 3G vibration rated per ANSI C136.31.
