Product Description

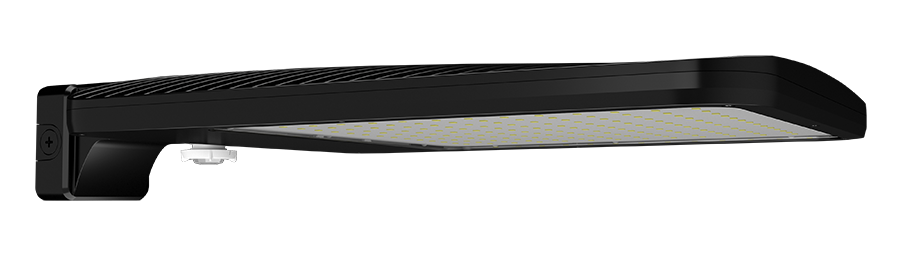

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing broad Type V coverage across parking areas, service drives, loading zones, and other large outdoor spaces where a pole is not practical. The black die-cast aluminum housing stands up to weather and job site handling, and the integrated LED engine replaces up to a 1,500-watt metal halide head while using a fraction of the energy.
Field-selectable output lets a single fixture cover three specs: 300, 345, or 385 watts, set on the housing at install (385 watts out of the box). 4000K neutral white looks balanced on signage, asphalt, and painted surfaces, and the multi-volt 120-277V driver dims to 10% on any 0-10V control system. A built-in WattStopper multi-level motion sensor with a 40-foot detection lens covers larger driveways and perimeter areas, dropping output when the space is empty and restoring it when cars or people move through.
Features
-
Fixture Type: Extra-large LED area light, wall mount
-
Distribution: Type V (wide, uniform 360° pattern for large open areas)
-
Field-Selectable Wattage: 300W / 345W / 385W (factory default 385W)
-
Output: 44,916 / 48,137 / 55,106 lumens at 300W / 345W / 385W
-
Replaces: Up to 1,500W metal halide
-
Color Temperature: 4000K neutral white
-
CRI: 83
-
Lifespan: 100,000 hours (L70)
-
Input Voltage: 120-277V multi-volt
-
Dimming: 0-10V, dims to 10%
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Integrated Sensor: WattStopper multi-level motion sensor with 40-foot detection lens for larger drives and perimeters; drops output when the area is empty, restores it when motion is detected
-
Housing: Die-cast aluminum, black finish
-
Lens: Polycarbonate
Ideal For: Parking Lots • Service Drives • Loading Zones • Corporate Campuses • Wall Pack Replacement
UL Listed for wet locations. IP66 rated. Cold-start to -40°F, maximum ambient 104°F. 3G vibration rating per ANSI C136.31.
