Product Description

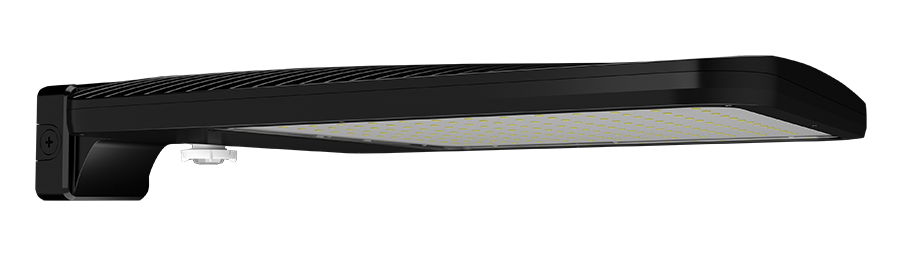

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing broad Type V coverage across parking areas, service drives, loading zones, and other large outdoor spaces where a pole is not practical. The black die-cast aluminum housing stands up to weather and job site handling, and the integrated LED engine replaces up to a 1,500-watt metal halide head while using a fraction of the energy.
Field-selectable output lets a single fixture cover three specs: 300, 345, or 385 watts, set on the housing at install (385 watts out of the box). 4000K neutral white looks balanced on signage, asphalt, and painted surfaces, and the 480V driver dims to 10% on any 0-10V control system. A built-in WattStopper multi-level motion sensor with a 40-foot detection lens covers larger driveways and perimeter areas, dropping output when the space is empty and restoring it when cars or people move through.
Features
-
Fixture Type: Extra-large LED area light, wall mount
-
Distribution: Type V (wide, uniform 360° pattern for large open areas)
-
Field-Selectable Wattage: 300W / 345W / 385W (factory default 385W)
-
Output: 45,659 / 49,080 / 55,139 lumens at 300W / 345W / 385W
-
Replaces: Up to 1,500W metal halide
-
Color Temperature: 4000K neutral white
-
CRI: 83
-
Lifespan: 100,000 hours (L70)
-
Input Voltage: 480V
-
Dimming: 0-10V, dims to 10%
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Integrated Sensor: WattStopper multi-level motion sensor with 40-foot detection lens for larger drives and perimeters; drops output when the area is empty, restores it when motion is detected
-
Housing: Die-cast aluminum, black finish
-
Lens: Polycarbonate
Ideal For: Parking Lots • Service Drives • Loading Zones • Corporate Campuses • Wall Pack Replacement
UL Listed for wet locations. IP66 rated. Cold-start to -40°F, maximum ambient 104°F. 3G vibration rating per ANSI C136.31.
