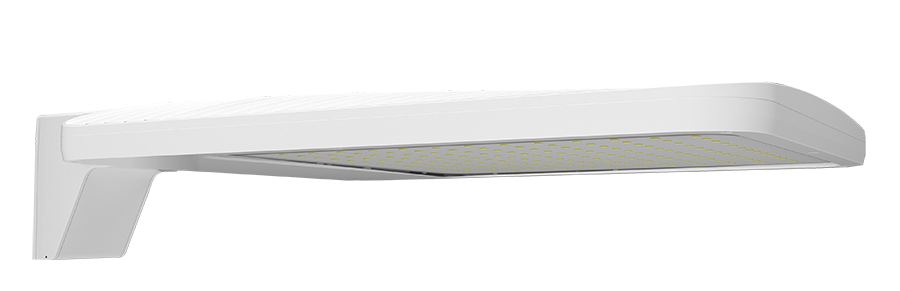

RAB ALED 300W-345W-385W Type V 5000K 480V Pole Mount White (ALEDXL5TW/480)

RAB ALED 300W-345W-385W Type V 5000K 480V Pole Mount White (ALEDXL5TW/480)

SKU ALEDXL5TW/480
by RAB
$1,775.00 - $1,775.00
$1,775.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts to a square pole or wall with its included universal arm and delivers broad, uniform Type V light across parking lots, campuses, and large outdoor sites on 480V service, with field-selectable wattage so one SKU covers 300W, 345W, and 385W installs.

Set to its 385W default, the fixture delivers 54,000 lumens of 5000K cool white light at 85 CRI, with a Type V distribution that spreads a wide, even wash in every direction — one fixture replaces a 1,500W metal halide and runs on roughly a quarter the power. Stepping the switch down drops output to 48,560 lumens at 345W or 45,198 lumens at 300W, which lets a single SKU cover a range of pole spacing and foot-candle targets without restocking. A 10 kV / 6 kV surge module and a cold-start rating to -40°F keep the fixture live through storms and winter nights.

Standard 0-10V dimming carries down to 10 percent, so the fixture integrates cleanly with lighting-control panels and photocell systems supplied separately.

Features

  • Fixture Type: Extra-large LED area light, field-adjustable wattage
  • Wattage: 300W, 345W, or 385W, selectable on the fixture (factory default 385W)
  • Light Output: 45,198 / 48,560 / 54,000 lumens at 300W / 345W / 385W
  • Color Temperature: 5000K cool white
  • CRI: 85
  • Replaces: 1,500W metal halide
  • Distribution: Type V, wide 360° uniform pattern
  • Lifespan: 100,000 hours (L70)
  • Voltage: 480V
  • Dimming: 0-10V, dims to 10 percent
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Mount: Universal mounting arm, fits 1" to 3" hole spacing with included round-pole adapter
  • Housing: Die-cast aluminum
  • Lens: Polycarbonate
  • Finish: White
  • EPA: 0.7 (single fixture)

Ideal For: Parking Lots • Campus Walkways • Industrial Yards • Car Dealerships • Logistics Centers

UL Listed for wet locations. IP66 rated against dust and water. Cold-start to -40°F, maximum ambient 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 45198/48560/54000 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
