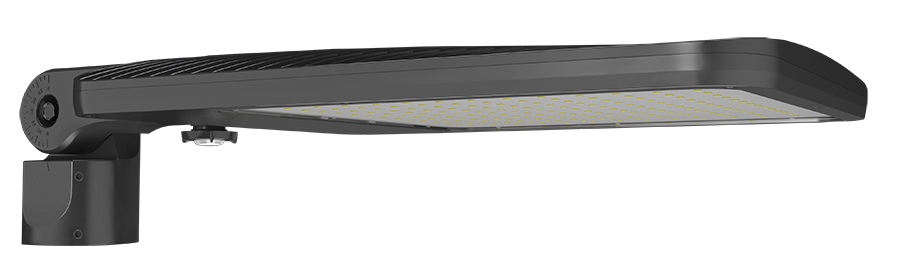

RAB ALED 300W-345W-385W Type V 5000K With Slipfitter WS Sensor 20 Foot Lens Bronze (ALEDXL5TSF/WS2)

RAB ALED 300W-345W-385W Type V 5000K With Slipfitter WS Sensor 20 Foot Lens Bronze (ALEDXL5TSF/WS2)

SKU ALEDXL5TSF/WS2
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED field-adjustable area light slips onto a 2-3/8 inch tenon and throws Type V distribution in a wide 360° pattern — the coverage parking lots, corporate campuses, and large retail sites need. Cool 5000K output (85 CRI) delivers the crisp, high-contrast light security cameras and foot traffic depend on after dark, and the die-cast aluminum housing is wired for universal 120-277V input.

Field-selectable wattage switches between 300W, 345W, and 385W from a toggle on the driver, delivering 44,042 lumens at 300W, 47,266 at 345W, and 54,644 at the full 385W setting — enough output to replace a 1,500-watt metal halide head across the whole range. One SKU covers specification changes without pulling product off the pole.

An integrated WattStop motion sensor with a 20-foot lens handles multi-level dimming on its own, so no separate control panel is needed. The 180° viewing angle reads movement along the full length of the fixture's throw, bringing the light up to full output when activity is detected and dropping back to a lower setting when the area clears. Settings adjust from the ground with the WSREM handheld wireless tool.

Features

  • Field-Selectable Wattage: 300W / 345W / 385W (factory default 385W)
  • Light Output: 44,042 lumens at 300W, 47,266 at 345W, 54,644 at 385W
  • Color Temperature: 5000K Cool White (85 CRI)
  • Distribution: Type V, wide 360° pattern for open-area coverage
  • Metal Halide Replacement: Replaces up to 1,500 watts of metal halide
  • Mounting: 2-3/8" slipfitter mount with stainless steel hardware; rotates in 5-degree increments
  • Voltage: 120-277V universal input
  • Controls: Integrated WattStop motion sensor, 20-foot lens, 180° viewing angle; 0-10V dimming to 10%; adjustable with WSREM handheld tool
  • Finish: Bronze, formulated for high-durability outdoor exposure
  • Housing & Lens: Die-cast aluminum housing, polycarbonate lens, high-temperature silicone gaskets
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Rated Life: 100,000 hours (L70)

Ideal For: Parking Lots • Corporate Campuses • Retail Parking • Service Drives • Loading Zones • Industrial Yards

UL Listed for wet locations with an IP66 rating against dust and water intrusion. Cold-starts down to -40°F and runs in ambient temperatures up to 104°F. Rated for 3G vibration per ANSI C136.31 for pole-mounted service.

Frequently Asked Questions
How bright is this product?
This product offers 44042/47266/54644 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
