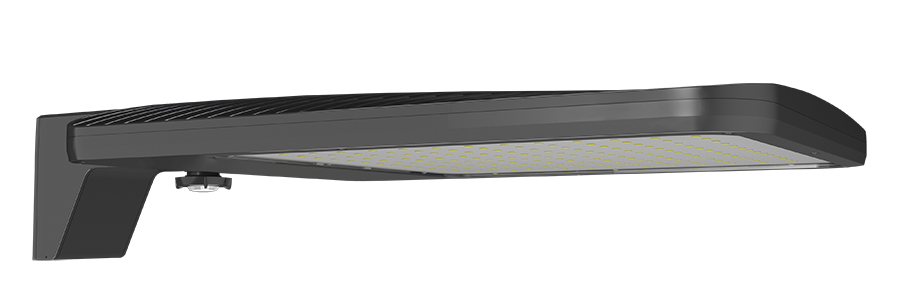

RAB ALED 300W-345W-385W Type V 5000K Pole Mount WS Sensor 40 Foot Lens Bronze (ALEDXL5T/WS4)

RAB ALED 300W-345W-385W Type V 5000K Pole Mount WS Sensor 40 Foot Lens Bronze (ALEDXL5T/WS4)

SKU ALEDXL5T/WS4
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts to a square or round pole with the included universal arm, delivering field-adjustable output of 300, 345, or 385 watts from a single catalog number. The wattage step is set on the driver during install, so one fixture covers lot sizes and pole spacings that would otherwise need three separate SKUs — bright enough at the 385-watt setting to replace a 1,500-watt metal halide across parking lots, service drives, and large commercial sites.

Running on standard 120–277V service, this bronze fixture carries a wide Type V distribution for a 360-degree pattern built for the open ground of parking areas, campuses, and retail sites. The 5000K cool white output shines through an IP66-sealed polycarbonate lens, and the die-cast aluminum housing is rated for cold starts to -40°F and ambient temperatures up to 104°F. An integrated WattStopper multi-level motion sensor with a 40-foot detection lens dims the fixture when the area is empty and returns to full output when motion is detected across a longer approach.

Features

  • Wattage: 300W / 345W / 385W, field-adjustable on the driver (factory default 385W)
  • Light Output: 44,042 / 47,266 / 54,644 lumens (at 300W / 345W / 385W)
  • Color Temperature: 5000K (cool white)
  • CRI: 85
  • Light Distribution: Type V (360-degree)
  • Input Voltage: 120-277V
  • Dimming: 0-10V dimming down to 10%
  • Lens: Polycarbonate
  • Housing: Die-cast aluminum
  • Finish: Bronze
  • Rated Life: 100,000-hour L70
  • Mounting: Universal arm, 1" to 3" bolt-hole spacing, round-pole adapter included
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Cold-Start Rating: -40°F
  • Max Ambient: 104°F
  • Vibration Rating: 3G per ANSI C136.31
  • Ingress Protection: IP66
  • Replaces: 1,500W metal halide
  • Occupancy Sensor: WattStopper multi-level motion sensor with 40-foot detection lens

Ideal For: Parking Lots • Service Drives • Commercial Campuses • Retail Centers • Loading Zones

UL Listed for wet locations. IP66 ingress protection. Rated for cold starts to -40°F and ambient temperatures up to 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 44042/47266/54644 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
