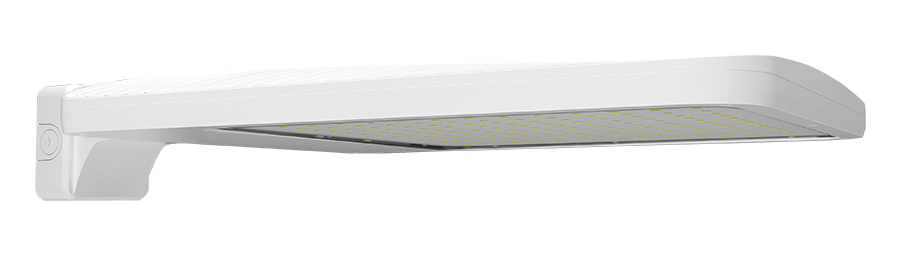

RAB ALED 300W-345W-385W Type IV 5000K 480V Wall Mount 7-Pin Receptacle White (ALEDXL4TWMW/480/7PR)

RAB ALED 300W-345W-385W Type IV 5000K 480V Wall Mount 7-Pin Receptacle White (ALEDXL4TWMW/480/7PR)

SKU ALEDXL4TWMW/480/7PR
by RAB
$1,821.00 - $1,821.00
$1,821.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Wattage is field-selectable among 300, 345, and 385 watts, so one SKU covers a range of brightness needs on retrofits or new installs.

The white die-cast aluminum housing is wet-location rated and built for continuous outdoor duty, with a Type IV distribution pattern that spreads a semicircular throw along the sides of buildings and across perimeter parking. 5000K cool white produces a crisp, daylight-toned beam that reads bright and clean on perimeter walls, loading bays, and service drives where high visibility matters most. A 7-pin receptacle on top accepts twist-lock photocells and wireless control nodes compliant with ANSI C136.41, so dusk-to-dawn control, scheduling, or site-wide dimming can be added without opening the fixture.

Features

  • Output: 41,538 / 44,628 / 49,627 lumens, field-selectable on 300W / 345W / 385W
  • Color Temperature: 5000K Cool
  • Color Rendering: 85 CRI
  • Wattage: 300W / 345W / 385W, field-adjustable in three discrete steps (factory default 385W)
  • Voltage: 480V dedicated, 50/60 Hz, constant-current driver
  • Control Receptacle: ANSI C136.41 7-pin twist-lock, compatible with photocells and wireless control nodes
  • Distribution: Type IV, optimized for wall-mounted perimeter and parking-area lighting
  • Dimming: 0-10V, dims down to 10%
  • Equivalent To: 1,500-watt metal halide at the top wattage setting
  • Housing: Die-cast aluminum with a white finish formulated for durability and color retention
  • Lens: Polycarbonate
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Mounting: Wall mount
  • Rated Life: 100,000 hours to L70

Ideal For: Parking Lots • Loading Docks • Service Drives • Building Perimeters • Industrial Yards • Wall Pack Replacement

UL Listed for wet locations. IP66-rated housing. Minimum starting temperature -40°F, maximum ambient 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 41538/44628/49627 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
