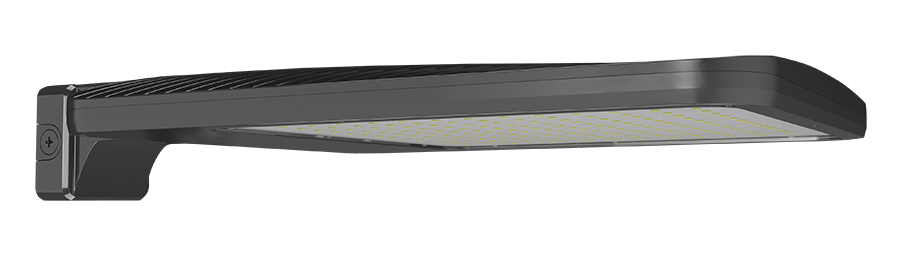

RAB ALED 300W-345W-385W Type IV 5000K 480V Wall Mount Bronze (ALEDXL4TWM/480)

RAB ALED 300W-345W-385W Type IV 5000K 480V Wall Mount Bronze (ALEDXL4TWM/480)

SKU ALEDXL4TWM/480
by RAB
$1,775.00 - $1,775.00
$1,775.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts directly to a wall or vertical building surface, delivering broad Type IV light across parking areas, service drives, and loading zones without requiring a pole. Three selectable wattages — 300W, 345W, and 385W — set on the fixture to match the install, with 385W as the factory default.

At 385W, the fixture delivers up to 49,627 lumens; at 345W, 44,628 lumens; at 300W, 41,538 lumens, all at 85 CRI in a 5000K cool-white tone that favors visibility and nighttime security. Factory-wired for 480V service, so one SKU covers campuses, industrial sites, and utility applications where 480V is the standard distribution. The die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets is built for continuous outdoor service, with 10kV line-to-line surge protection and 0-10V dimming to 10% rounding out the electrical package.

Features

  • Mount: Direct wall mount for vertical building surfaces
  • Wattage (field-selectable): 300W / 345W / 385W; factory default 385W
  • Light Output: 41,538 / 44,628 / 49,627 lumens at the three wattage settings
  • Efficacy: up to 143.2 lumens per watt
  • Color Temperature: 5000K cool white, 85 CRI
  • Rated Life: 100,000 hours (L70)
  • Distribution: Type IV, suited for perimeter parking areas and the sides of buildings
  • Replaces: up to 1,500W metal halide
  • Input Voltage: 480V, 50/60 Hz
  • Dimming: 0-10V, dims down to 10%
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Construction: die-cast aluminum housing, polycarbonate lens, high-temperature silicone gaskets
  • Finish: Bronze

Ideal For: Parking Lots • Perimeter Drives • Loading Zones • Industrial Sites • Commercial Campuses

UL Listed for wet locations. IP66-rated for dust and water ingress. Cold-start to -40°F; max ambient 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 41538/44628/49627 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
