Product Description

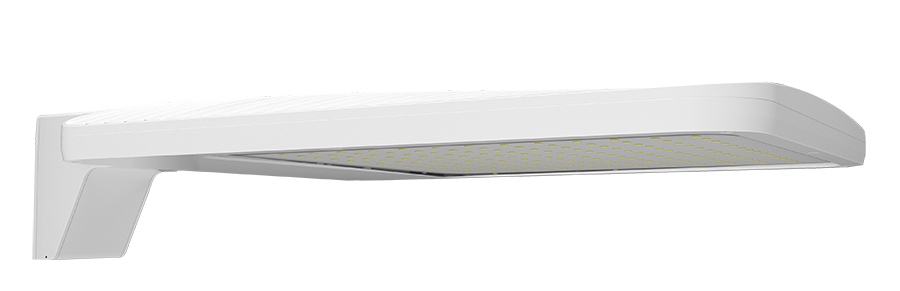

This extra-large ALED area light mounts to a square or round pole with a universal slide-and-lock arm, delivering broad Type IV light across parking lots, perimeter drives, and large commercial sites. Three selectable wattages — 300W, 345W, and 385W — set on the fixture to match the install, with 385W as the factory default.
At 385W, the fixture delivers up to 49,627 lumens; at 345W, 44,628 lumens; at 300W, 41,538 lumens, all at 85 CRI in a 5000K cool-white tone that favors visibility and nighttime security. Factory-wired for 480V service, so one SKU covers campuses, industrial sites, and utility applications where 480V is the standard distribution. The die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets is built for continuous outdoor service, with 10kV line-to-line surge protection and 0-10V dimming to 10% rounding out the electrical package.
Features
-
Mount: Universal slide-and-lock arm, fits hole patterns from 1" to 3" center-to-center; round-pole adapter plate included
-
Wattage (field-selectable): 300W / 345W / 385W; factory default 385W
-
Light Output: 41,538 / 44,628 / 49,627 lumens at the three wattage settings
-
Efficacy: up to 143.2 lumens per watt
-
Color Temperature: 5000K cool white, 85 CRI
-
Rated Life: 100,000 hours (L70)
-
Distribution: Type IV, suited for perimeter parking areas and the sides of buildings
-
Replaces: up to 1,500W metal halide
-
Input Voltage: 480V, 50/60 Hz
-
Dimming: 0-10V, dims down to 10%
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Construction: die-cast aluminum housing, polycarbonate lens, high-temperature silicone gaskets
-
Finish: White
Ideal For: Parking Lots • Perimeter Drives • Loading Zones • Industrial Sites • Commercial Campuses
UL Listed for wet locations. IP66-rated for dust and water ingress. Cold-start to -40°F; max ambient 104°F. 3G vibration rating per ANSI C136.31.
