Product Description

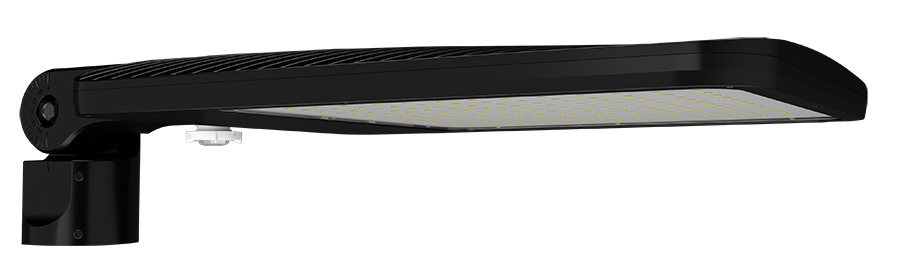

This extra-large ALED area light mounts to a 2-3/8 inch pole tenon via a built-in slipfitter and covers parking lots, truck yards, service drives, and perimeter zones with Type IV forward-throw distribution. Field-selectable output steps between 300, 345, and 385 watts to replace a 1,500-watt metal halide fixture, delivering roughly 41,024 to 50,899 lumens across the three settings in 5000K cool white at 85 CRI. An integrated WattStopper multi-level motion sensor with a 20-foot detection pattern dims the fixture during inactive hours and switches to full output on motion, with 120-277V input and 0-10V dimming.
Die-cast aluminum housing seals to IP66 with high-temperature silicone gaskets that keep driven rain and airborne dust out, and a polycarbonate lens handles impact without yellowing under UV exposure. Cold-weather starting runs down to -40°F for Northern-climate reliability, and the 3G vibration rating per ANSI C136.31 handles the shake of highway-adjacent and traffic-heavy poles. The black finish stays visually low-key against darker buildings, poles, and nighttime backgrounds.
Features
-
Wattage: 385W, field-selectable to 345W or 300W
-
Color Temperature: 5000K Cool White
-
Lumens: 41,024 to 50,899 lumens across the three wattage steps
-
CRI: 85
-
Distribution: Type IV (Forward Throw)
-
Voltage: 120-277V
-
Motion Sensor: Integrated WattStopper multi-level occupancy sensor, 20-foot detection pattern, 180° viewing angle
-
Dimming: 0-10V dimmable to 10%
-
Equivalent To: 1,500W Metal Halide
-
Mounting: 2-3/8" slipfitter with stainless steel hardware
-
Housing: Die-cast aluminum, Black finish
-
Lens: Polycarbonate
-
Rated Life: 100,000 hours
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
Ideal For: Parking Lots • Low-Activity Zones • Energy-Code Compliance • Office Complexes • Secure Perimeters
UL Listed for wet locations • IP66 rated for dust and water • Cold-start to -40°F (-40°C) • 104°F (40°C) maximum ambient temperature • 3G vibration rated per ANSI C136.31
