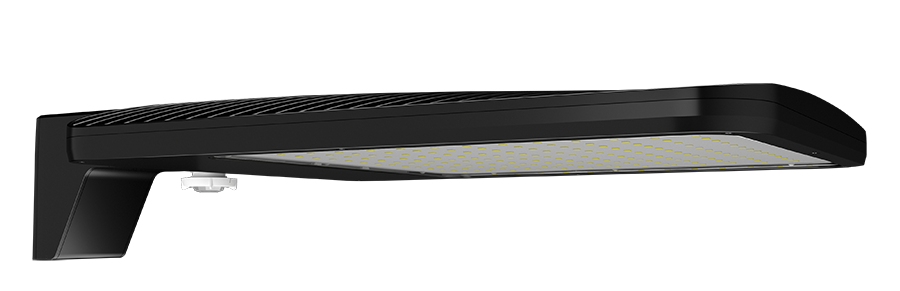

RAB ALED 300W-345W-385W Type IV 5000K Pole Mount WS Sensor 20 Foot Lens Black (ALEDXL4TB/WS2)

RAB ALED 300W-345W-385W Type IV 5000K Pole Mount WS Sensor 20 Foot Lens Black (ALEDXL4TB/WS2)

SKU ALEDXL4TB/WS2
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large arm-mount area light delivers field-adjustable high output for parking lots, loading docks, and other large outdoor sites where fewer poles and broader coverage matter. The 5000K LED runs on 120-277V universal input and ships in a black die-cast aluminum housing. A built-in multi-level motion sensor with a 20-foot detection pattern cuts output when the lot is empty and brings it back to full brightness the moment someone drives or walks through, trimming off-hours energy without leaving the site dark.

A three-step field selector on the fixture sets light output at 300, 345, or 385 watts (factory default 385 watts), so one unit covers a range of mounting heights and pole spacings without swapping SKUs. The Type IV distribution throws a semicircular pattern toward the front of the fixture, which suits perimeter rows, building-side mounting, and the street side of parking lots where light should spill forward and stop at the property line. Peak output replaces a 1,500-watt metal halide fixture at a fraction of the energy and with none of the warm-up delay.

Features

  • Light Output: 41024/44027/50899 lumens at 300W / 345W / 385W
  • Wattage: Field-adjustable 300W / 345W / 385W (factory default 385W)
  • Color Temperature: 5000K Cool, 85 CRI
  • Efficacy: Up to 141.6 lumens per watt
  • Distribution: Type IV (semicircular, forward-throw) for perimeter and street-side mounting
  • Input Voltage: 120-277V universal
  • Control: 0-10V dimmable to 10%, with an integrated multi-level motion sensor and 20-foot detection pattern
  • Mounting: Universal arm with 1" to 3" hole spacing, round pole adapter plate included
  • Housing: Die-cast aluminum with polycarbonate lens
  • Finish: Black
  • Rated Life: 100,000 hours (L70)
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground

Ideal For: Parking Lots • Loading Docks • Industrial Sites • Commercial Properties • Perimeter Lighting

UL Listed for wet locations. IP66 ingress protection. Cold-start rated to -40°F (-40°C) with a maximum ambient of 104°F (40°C). 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 41024/44027/50899 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
