Product Description

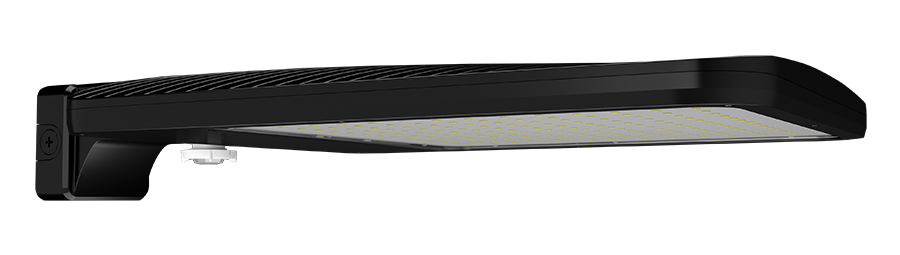

This extra-large ALED area light mounts directly to a wall or other vertical building surface, throwing broad, controlled light across parking areas, service drives, loading docks, and perimeter zones without requiring a pole or arm. Factory default is 385 watts; field-adjustable settings on the driver let you step down to 345 or 300 watts to match the actual light levels and energy budget of the site, delivering up to 49,283 lumens of 4000K neutral white with a Type III forward-throw distribution.
Standard 120-277V multi-tap wiring covers the common commercial voltages found on most sites. An integrated WattStopper multi-level motion sensor with a 40-foot detection lens runs the fixture at reduced output during quiet hours, then ramps it up to full brightness when it picks up movement from pedestrians or vehicles. The 40-foot lens reaches further out from the wall, which suits taller mounting heights where the fixture needs to cover deeper into the parking area or drive lane. Dimming thresholds, hold times, and sensitivity are configured wirelessly with the handheld WSREM tool, so an installer can tune the fixture without a ladder.
Features
-
Wattage: Field-selectable 300, 345, or 385 watts (factory default 385)
-
Output: Up to 49,283 lumens at 385 watts, 83 CRI, 4000K Neutral
-
Driver: 0-10V dimmable down to 10%, 120-277V multi-tap
-
Distribution: Type III forward-throw with a B3 U0 G5 BUG rating
-
Motion Sensor: Integrated WattStopper multi-level sensor with 40-foot detection lens, 180° viewing angle
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Construction: Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets, Black finish
-
Life: 100,000-hour L70 rated LED life
-
Replaces: Equivalent to a 1,500-watt metal halide area light
Ideal For: Parking Lots • Service Drives • Loading Docks • Warehouses • Perimeter Lighting
UL Listed for wet locations with IP66 ingress protection. Cold-start to -40°F, with a maximum ambient operating temperature of 104°F. 3G vibration rating per ANSI C136.31. Mercury and UV free.
