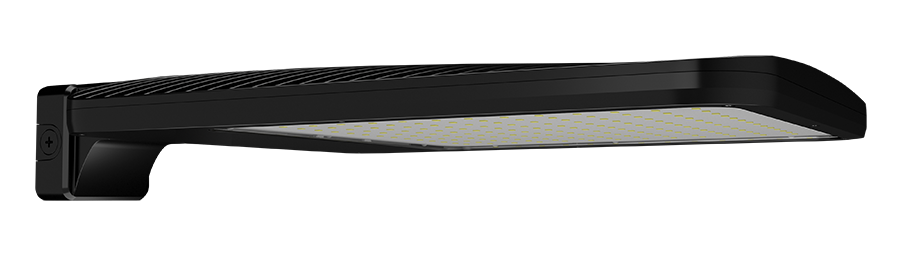

RAB ALED 300W-345W-385W Type III 4000K Wall Mount Black (ALEDXL3TWMNB)

RAB ALED 300W-345W-385W Type III 4000K Wall Mount Black (ALEDXL3TWMNB)

SKU ALEDXL3TWMNB
by RAB
$1,683.00 - $1,683.00
$1,683.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts directly to a wall or other vertical building surface, throwing broad, controlled light across parking areas, service drives, loading docks, and perimeter zones without requiring a pole or arm. Factory default is 385 watts; field-adjustable settings on the driver let you step down to 345 or 300 watts to match the actual light levels and energy budget of the site, delivering up to 49,283 lumens of 4000K neutral white with a Type III forward-throw distribution.

Standard 120-277V multi-tap wiring covers the common commercial voltages found on most sites. The 0-10V driver dims smoothly down to 10% output, so a central lighting control system or an astronomical time clock can taper brightness during off-peak hours instead of running every fixture at full power all night.

Features

  • Wattage: Field-selectable 300, 345, or 385 watts (factory default 385)
  • Output: Up to 49,283 lumens at 385 watts, 83 CRI, 4000K Neutral
  • Driver: 0-10V dimmable down to 10%, 120-277V multi-tap
  • Distribution: Type III forward-throw with a B3 U0 G5 BUG rating
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Construction: Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets, Black finish
  • Life: 100,000-hour L70 rated LED life
  • Replaces: Equivalent to a 1,500-watt metal halide area light

Ideal For: Parking Lots • Service Drives • Loading Docks • Warehouses • Perimeter Lighting

UL Listed for wet locations with IP66 ingress protection. Cold-start to -40°F, with a maximum ambient operating temperature of 104°F. 3G vibration rating per ANSI C136.31. Mercury and UV free.

Frequently Asked Questions
How bright is this product?
This product offers 40170/43050/49283 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
