Product Description

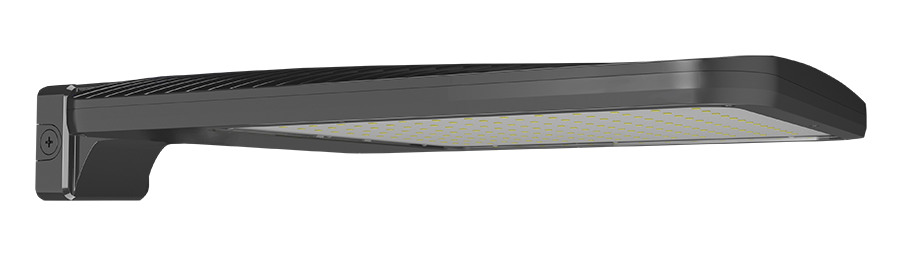

This extra-large ALED area light mounts directly to a wall or other vertical building surface, throwing broad, controlled light across parking areas, service drives, loading docks, and perimeter zones without requiring a pole or arm. Factory default is 385 watts; field-adjustable settings on the driver let you step down to 345 or 300 watts to match the actual light levels and energy budget of the site, delivering up to 49,283 lumens of 4000K neutral white with a Type III forward-throw distribution.
Standard 120-277V multi-tap wiring covers the common commercial voltages found on most sites. An ANSI C136.41 7-pin twist-lock receptacle sits on top of the housing, ready to accept a photocontrol, a wireless node, or a networked lighting controller from any manufacturer that follows the standard. The 0-10V driver dims down to 10% output through those controls.
Features
-
Wattage: Field-selectable 300, 345, or 385 watts (factory default 385)
-
Output: Up to 49,283 lumens at 385 watts, 83 CRI, 4000K Neutral
-
Driver: 0-10V dimmable down to 10%, 120-277V multi-tap
-
Distribution: Type III forward-throw with a B3 U0 G5 BUG rating
-
Control Receptacle: ANSI C136.41 7-pin twist-lock on top of the housing
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Construction: Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets, Bronze finish
-
Life: 100,000-hour L70 rated LED life
-
Replaces: Equivalent to a 1,500-watt metal halide area light
Ideal For: Parking Lots • Service Drives • Loading Docks • Warehouses • Perimeter Lighting
UL Listed for wet locations with IP66 ingress protection. Cold-start to -40°F, with a maximum ambient operating temperature of 104°F. 3G vibration rating per ANSI C136.31. Mercury and UV free.
