Product Description

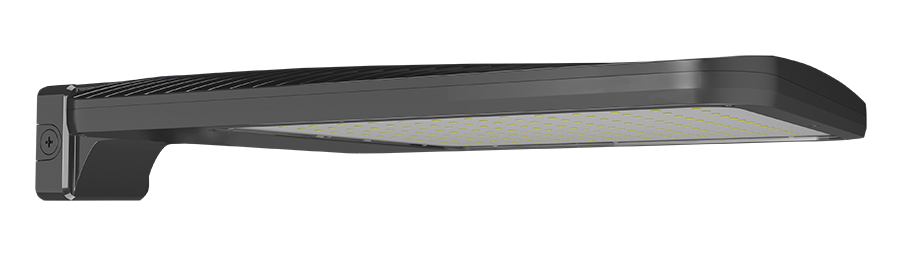

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole.
The 5000K cool white output pairs with a Type III distribution that projects an elongated pool of light outward from the building face, filling long rectangular areas without heavy spill into neighboring property. Three discrete wattage steps let one fixture replace up to a 1,500-watt metal halide across a range of mounting heights. Factory-wired for 480V input to match high-voltage service feeds on larger commercial sites, the fixture also carries an ANSI C136.41 7-pin twist-lock receptacle on top for a photocell or wireless control node, supporting dusk-to-dawn operation and smart-city network integration. The bronze finish settles against brick, warm stone, and earth-tone building skins.
Features
-
Light Output: 39,253 / 42,126 / 48,702 lumens, field-adjustable in three steps (300W / 345W / 385W, factory-set 385W)
-
Color Temperature: 5000K cool white, 85 CRI
-
Distribution: Type III, for elongated throw along parking rows and roadways
-
Input Voltage: 480V, 50/60 Hz
-
Dimming: 0-10V dimming down to 10% (separate dimming circuit required)
-
Control: ANSI C136.41 7-pin twist-lock receptacle for photocell or wireless control node
-
Mount: Wall mount for direct attachment to vertical building surfaces
-
Finish: Bronze die-cast aluminum housing with polycarbonate lens
-
Lifespan: L70 at 100,000 hours
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Equivalency: Replaces up to a 1,500-watt metal halide fixture
Ideal For: Building Perimeters • Service Drives • Loading Zones • Wall Pack Replacements • Industrial Sites
UL Listed for wet locations. IP66 rated against dust and water. -40°F cold start, 104°F maximum ambient. 3G vibration rating per ANSI C136.31.
