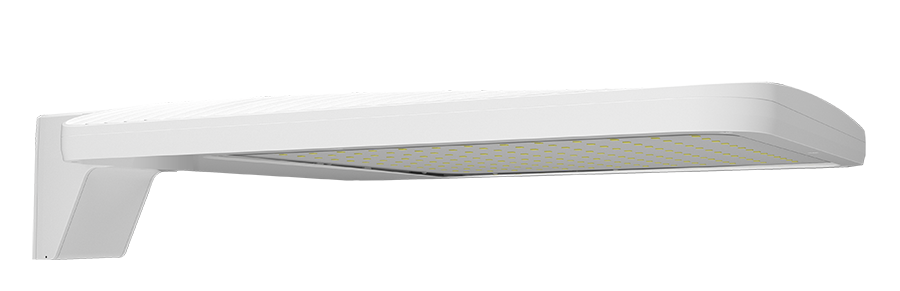

RAB ALED 300W-345W-385W Type III 5000K Pole Mount 7-Pin Receptacle White (ALEDXL3TW/7PR)

RAB ALED 300W-345W-385W Type III 5000K Pole Mount 7-Pin Receptacle White (ALEDXL3TW/7PR)

SKU ALEDXL3TW/7PR
by RAB
$1,728.00 - $1,728.00
$1,728.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts to a square or round pole with a universal arm that handles hole-spacing patterns from 1 inch to 3 inch center-to-center, delivering a field-adjustable 300 to 385 watts for parking lots, campus walkways, and large commercial exteriors.

The 5000K cool white output pairs with a Type III distribution that projects an elongated pool of light outward from the pole, filling long rectangular areas without heavy spill into neighboring property. Three discrete wattage steps let one fixture replace up to a 1,500-watt metal halide across a range of mounting heights, and an ANSI C136.41 7-pin receptacle on top accepts a twist-lock photocell or a wireless control node for dusk-to-dawn operation and smart-city network integration. The white finish fits modern commercial sites with lighter-colored facades and newer architectural metal.

Features

  • Light Output: 39,253 / 42,126 / 48,702 lumens, field-adjustable in three steps (300W / 345W / 385W, factory-set 385W)
  • Color Temperature: 5000K cool white, 85 CRI
  • Distribution: Type III, for elongated throw along parking rows and roadways
  • Input Voltage: 120-277V, 50/60 Hz
  • Dimming: 0-10V dimming down to 10% (separate dimming circuit required)
  • Control: ANSI C136.41 7-pin twist-lock receptacle for photocell or wireless control node
  • Mount: Universal mounting arm with 1" to 3" hole-spacing patterns, round-pole adapter plate included
  • Finish: White die-cast aluminum housing with polycarbonate lens
  • Lifespan: L70 at 100,000 hours
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Equivalency: Replaces up to a 1,500-watt metal halide fixture

Ideal For: Parking Lots • Campus Walkways • Commercial Properties • Roadways • Industrial Sites

UL Listed for wet locations. IP66 rated against dust and water. -40°F cold start, 104°F maximum ambient. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39253/42126/48702 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
