RAB ALED 300W-345W-385W Type III 5000K 480V With Slipfitter WS Sensor 20 Foot Lens White (ALEDXL3TSFW/480/WS2)

RAB ALED 300W-345W-385W Type III 5000K 480V With Slipfitter WS Sensor 20 Foot Lens White (ALEDXL3TSFW/480/WS2)

SKU ALEDXL3TSFW/480/WS2
by RAB
$1,936.00 - $1,936.00
$1,936.00
Backorder: Usually Ships in 4-7 Days
Product Description

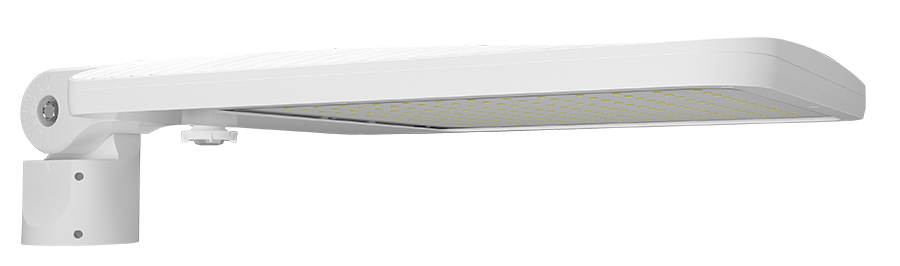

This extra-large ALED area light slips over a 2-3/8 inch tenon on a square or round pole, delivering a field-adjustable 300 to 385 watts for parking lots, roadways, and large commercial site lighting.

The 5000K cool white output pairs with a Type III distribution that projects an elongated pool of light outward from the pole, filling long rectangular areas without heavy spill into neighboring property. Three discrete wattage steps let one fixture replace up to a 1,500-watt metal halide across a range of mounting heights. Factory-wired for 480V input to match high-voltage service feeds on larger commercial sites, the fixture also carries an integrated WattStopper multi-level motion sensor with a 20-foot detection pattern that dims during quiet periods and returns to full output when activity returns. The white finish fits modern commercial sites with lighter-colored facades and newer architectural metal.

Features

  • Light Output: 39,253 / 42,126 / 48,702 lumens, field-adjustable in three steps (300W / 345W / 385W, factory-set 385W)
  • Color Temperature: 5000K cool white, 85 CRI
  • Distribution: Type III, for elongated throw along parking rows and roadways
  • Input Voltage: 480V, 50/60 Hz
  • Dimming: 0-10V dimming down to 10% (separate dimming circuit required)
  • Control: Integrated WattStopper multi-level motion sensor, 20-foot detection pattern
  • Mount: 2-3/8" slipfitter with stainless steel hardware
  • Finish: White die-cast aluminum housing with polycarbonate lens
  • Lifespan: L70 at 100,000 hours
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Equivalency: Replaces up to a 1,500-watt metal halide fixture

Ideal For: Parking Lots • Commercial Properties • Roadways • Loading Areas • Industrial Sites

UL Listed for wet locations. IP66 rated against dust and water. -40°F cold start, 104°F maximum ambient. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39838/42801/47596 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
