RAB ALED 300W-345W-385W Type III 4000K With Slipfitter Black (ALEDXL3TSFNB)

RAB ALED 300W-345W-385W Type III 4000K With Slipfitter Black (ALEDXL3TSFNB)

SKU ALEDXL3TSFNB
by RAB
$1,683.00 - $1,683.00
$1,683.00
Backorder: Usually Ships in 4-7 Days
Product Description

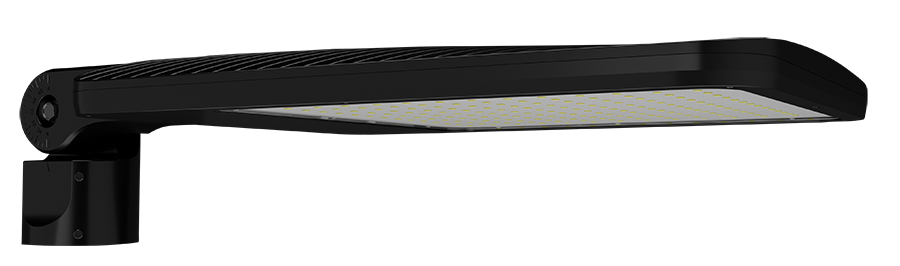

This extra-large ALED area light mounts on a 2-3/8 inch slipfitter and throws a Type III beam across parking lots, roadways, and other wide outdoor spaces. The 300-, 345-, and 385-watt output steps are field-selectable, so one SKU can be dialed in to the job after install — a direct replacement for a 1,500-watt metal halide at roughly a quarter of the energy.

The black die-cast aluminum housing carries a neutral 4000K LED array that puts out up to 49,283 lumens at full output, with 83 CRI color rendering. Runs on standard 120-277V input with 0-10V dimming down to 10%.

Features

  • Wattage: Field-selectable 300W, 345W, or 385W (factory default 385W)
  • Light Output: Up to 49,283 lumens at the 385W step
  • Color Temperature: 4000K (Neutral)
  • CRI: 83
  • Replaces: 1,500W metal halide
  • Distribution: Type III, for roadway and parking-perimeter coverage
  • Mount: 2-3/8" slipfitter with stainless steel hardware
  • Tilt: Rotates in 5-degree increments
  • Input Voltage: 120-277V, 50/60 Hz
  • Dimming: 0-10V, down to 10%
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Lens: Polycarbonate
  • Housing: Die-cast aluminum, Black finish
  • Lifespan: 100,000 hours (L70)
  • Weight: 41.4 lbs

Ideal For: Parking Lots • Roadways • Service Drives • Loading Zones • Industrial Yards

UL Listed for wet locations with IP66 ingress protection. Cold-starts down to -40°F and rated for ambient temperatures up to 104°F. Carries a 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 40170/43050/49283 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
