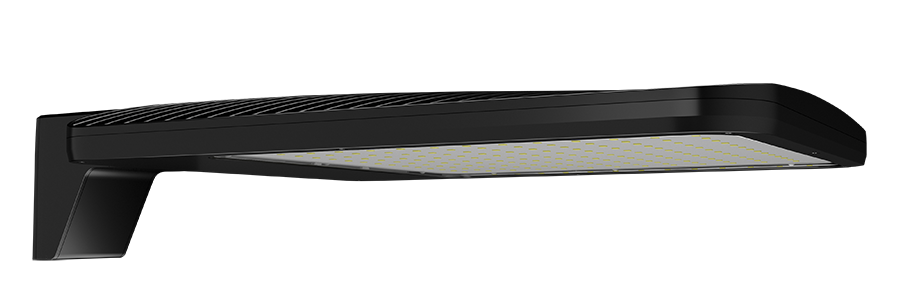

RAB ALED 300W-345W-385W Type III 4000K Pole Mount 7-Pin Receptacle Black (ALEDXL3TNB/7PR)

RAB ALED 300W-345W-385W Type III 4000K Pole Mount 7-Pin Receptacle Black (ALEDXL3TNB/7PR)

SKU ALEDXL3TNB/7PR
by RAB
$1,728.00 - $1,728.00
$1,728.00
Backorder: Usually Ships in 4-7 Days
Product Description

This large ALED area light pairs a Type III distribution with field-selectable 300, 345, and 385-watt settings, mounting on a universal arm to replace 1,500-watt metal halide pole heads across parking lots, roadways, car dealerships, and large commercial sites. At 4000K it delivers a neutral white that balances crisp visibility with a less harsh look than cooler color temperatures, runs on 120-277V with 0-10V dimming standard, and the die-cast aluminum housing comes in black to match standard RAB pole hardware.

The universal arm covers hole patterns from 1 to 3 inches on center and includes a round-pole adapter plate, so the fixture slides and locks onto existing square or round poles without hardware swaps. Field-adjustable wattage delivers up to 49,283 lumens at the 385-watt step, 43,050 lumens at 345 watts, or 40,170 lumens at 300 watts, so one SKU dials three photometric levels across a site without ordering different fixtures per pole. An ANSI C136.41 7-pin receptacle on top accepts photocells and networked wireless control nodes for scheduling, dimming, or utility-grid integration.

Features

  • Wattage: 300W, 345W, or 385W field-selectable (factory default 385W)
  • Light Output: 49,283 / 43,050 / 40,170 lumens at 385W / 345W / 300W
  • Equivalent: 1,500W metal halide
  • Color Temperature: 4000K
  • CRI: 83-84 CRI
  • Distribution: Type III (projects outward along the long edge of a lot or roadway)
  • Mounting: Universal arm, 1" to 3" center-to-center hole spacing, round-pole adapter plate included
  • Voltage: 120-277V
  • Dimming: 0-10V, down to 10%
  • Control: ANSI C136.41 7-pin receptacle for photocells or networked wireless nodes
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Finish: Black
  • Lifespan: 100,000 hours (L70)

Ideal For: Parking Lots • Car Dealerships • Roadways • Service Drives • Large Commercial Sites

UL Listed and suitable for wet locations. IP66 rated against dust and water ingress. Cold-weather start to –40°F, maximum ambient 104°F. 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 40170/43050/49283 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
