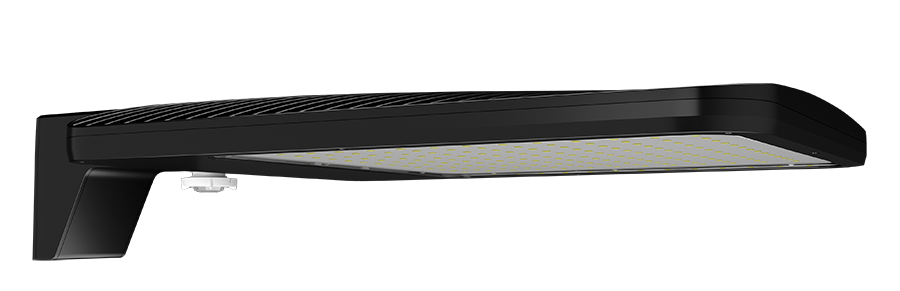

RAB ALED 300W-345W-385W Type III 5000K Pole Mount WS Sensor 20 Foot Lens Black (ALEDXL3TB/WS2)

RAB ALED 300W-345W-385W Type III 5000K Pole Mount WS Sensor 20 Foot Lens Black (ALEDXL3TB/WS2)

SKU ALEDXL3TB/WS2
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

This large ALED area light pairs a Type III distribution with field-selectable 300, 345, and 385-watt settings, mounting on a universal arm to replace 1,500-watt metal halide pole heads across parking lots, roadways, car dealerships, and large commercial sites. At 5000K it produces cool, bright white light suited to parking, security, and specification work, runs on 120-277V with 0-10V dimming standard, and the die-cast aluminum housing comes in black to match standard RAB pole hardware.

The universal arm covers hole patterns from 1 to 3 inches on center and includes a round-pole adapter plate, so the fixture slides and locks onto existing square or round poles without hardware swaps. Field-adjustable wattage delivers up to 48,702 lumens at the 385-watt step, 42,126 lumens at 345 watts, or 39,253 lumens at 300 watts, so one SKU dials three photometric levels across a site without ordering different fixtures per pole. An integrated WattStopper multi-level motion sensor with a 20-foot detection lens runs the fixture at full output when it detects activity below and dims to a lower level when the lot clears, cutting off-hours energy while keeping the site lit.

Features

  • Wattage: 300W, 345W, or 385W field-selectable (factory default 385W)
  • Light Output: 48,702 / 42,126 / 39,253 lumens at 385W / 345W / 300W
  • Equivalent: 1,500W metal halide
  • Color Temperature: 5000K
  • CRI: 85 CRI
  • Distribution: Type III (projects outward along the long edge of a lot or roadway)
  • Mounting: Universal arm, 1" to 3" center-to-center hole spacing, round-pole adapter plate included
  • Voltage: 120-277V
  • Dimming: 0-10V, down to 10%
  • Control: Integrated WattStopper multi-level motion sensor, 20-foot detection lens, 180° field of view
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Finish: Black
  • Lifespan: 100,000 hours (L70)

Ideal For: Parking Lots • Car Dealerships • Roadways • Service Drives • Large Commercial Sites

UL Listed and suitable for wet locations. IP66 rated against dust and water ingress. Cold-weather start to –40°F, maximum ambient 104°F. 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39253/42126/48702 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
