Product Description

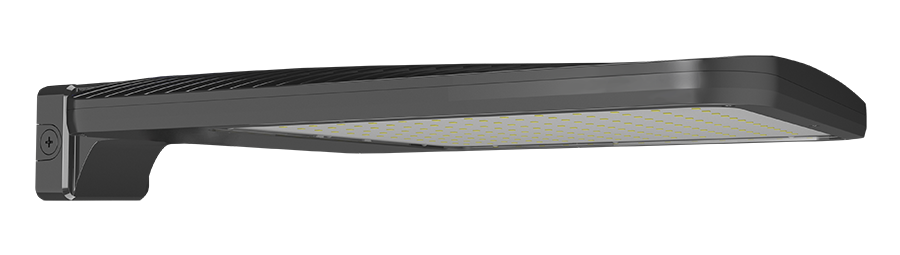

This extra-large ALED area light mounts directly to a wall or vertical building surface, delivering broad Type II distribution across parking lots, service drives, and loading docks without requiring a pole. Field-adjustable wattage lets one fixture cover 300W, 345W, and 385W applications — useful when a single SKU has to serve multiple sites or when the final light level needs to be dialed in after install.
This configuration pairs 4000K neutral white with a bronze die-cast aluminum housing, the standard commercial-exterior finish that disappears against brick, wood poles, and dark cladding. This neutral white tone keeps signage, pavement striping, and vehicle colors looking accurate, without the blue cast of cooler temperatures. Output ranges from roughly 40,200 to 48,500 lumens across the three wattage settings, replacing a 1,500W metal halide at a fraction of the energy use. A 0-10V dimming driver is standard, dimming down to 10% for scheduled scene changes or occupancy-tied reductions, and the driver runs on 480V input.
Features
-
Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
-
Distribution: IES Type II for wide roadway, parking, and perimeter coverage
-
Light Output: roughly 40,200 to 48,500 lumens across the three wattage settings
-
CCT & CRI: 4000K Neutral, 83 CRI
-
Dimming: 0-10V dimming to 10% standard
-
Voltage: 480V dedicated
-
Finish: Bronze die-cast aluminum housing with polycarbonate lens
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Mounting: Wall / vertical building surface
-
Lifespan: 100,000-hour L70 rated life
Ideal For: Parking Lots • Loading Docks • Service Yards • Perimeter Lighting • Wall Pack Replacements
UL Listed for wet locations. IP66 rated for dust and water ingress. Cold-start rated to -40°F with a max ambient of 104°F. 3G vibration rated per ANSI C136.31.
