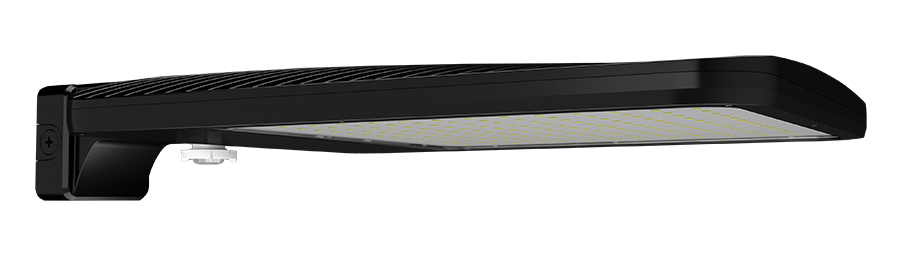

RAB ALED 300W-345W-385W Type II 5000K Wall Mount WS Sensor 40 Foot Lens Black (ALEDXL2TWMB/WS4)

RAB ALED 300W-345W-385W Type II 5000K Wall Mount WS Sensor 40 Foot Lens Black (ALEDXL2TWMB/WS4)

SKU ALEDXL2TWMB/WS4
by RAB
$1,843.00 - $1,843.00
$1,843.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED area light mounts directly to a wall or vertical building surface, throwing up to 49,583 lumens of cool 5000K white light across parking areas, service drives, and loading zones with Type II distribution — no pole required.

Field-adjustable wattage lets the installer switch between 300W, 345W, and 385W right on the driver, so one SKU covers multiple design targets without a separate order per output. The die-cast aluminum housing carries a 3G vibration rating per ANSI C136.31, IP66 ingress protection, cold-start operation down to -40°F, and 10 kV surge protection line-to-line — built for 24/7 outdoor duty.

Features

  • Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
  • Lumen Output: 39,963 / 42,888 / 49,583 lumens, matched to each wattage step
  • Color Temperature: 5000K Cool White, 85 CRI
  • Distribution: Type II, tuned for wide-area parking and roadway coverage
  • Voltage: 120-277V (50/60 Hz)
  • Mounting: Wall mount, direct to vertical building surface
  • Dimming: 0-10V, dims to 10%
  • Finish: Black
  • Replaces: 1,500W metal halide fixtures
  • Control: WattStopper multi-level motion sensor with 40-foot detection lens (0-10V dimming)

Ideal For: Parking Areas • Service Drives • Loading Zones • Wall Pack Replacements • Perimeter Lighting

UL Listed for wet locations with IP66 ingress protection, 3G vibration rated per ANSI C136.31, cold-start operation to -40°F, and 104°F max ambient.

Frequently Asked Questions
How bright is this product?
This product offers 39963/42888/49583 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
