Product Description

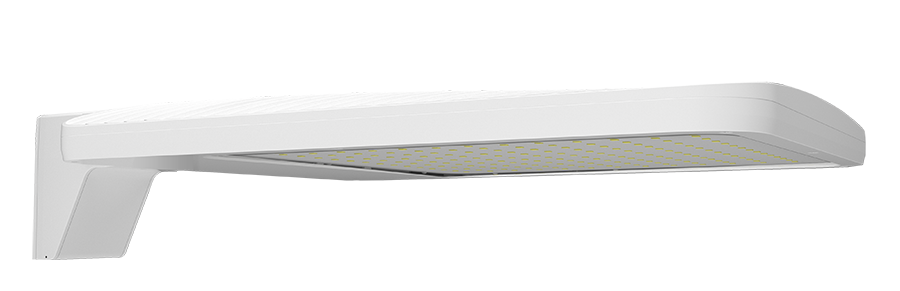

This extra-large ALED area light includes a universal mounting arm that fits hole patterns from 1 inch to 3 inch center-to-center, with a round-pole adapter plate included for retrofits onto existing poles. Up to 49,583 lumens of cool 5000K white light cover parking lots, campus grounds, and perimeter walkways with Type II distribution.
Field-adjustable wattage lets the installer switch between 300W, 345W, and 385W right on the driver, so one SKU covers multiple design targets without a separate order per output. The die-cast aluminum housing carries a 3G vibration rating per ANSI C136.31, IP66 ingress protection, cold-start operation down to -40°F, and 10 kV surge protection line-to-line — built for 24/7 outdoor duty.
Features
-
Wattage: Field-selectable 300W / 345W / 385W (factory default 385W)
-
Lumen Output: 39,963 / 42,888 / 49,583 lumens, matched to each wattage step
-
Color Temperature: 5000K Cool White, 85 CRI
-
Distribution: Type II, tuned for wide-area parking and roadway coverage
-
Voltage: 120-277V (50/60 Hz)
-
Mounting: Universal mounting arm, fits hole patterns 1 inch to 3 inch center-to-center; round-pole adapter plate included
-
Dimming: 0-10V, dims to 10%
-
Finish: White
-
Replaces: 1,500W metal halide fixtures
-
Control: 7-pin ANSI C136.41 receptacle, compatible with wireless control systems
Ideal For: Parking Lots • Pole Retrofits • Campus Grounds • Perimeter Lighting • Industrial Sites
UL Listed for wet locations with IP66 ingress protection, 3G vibration rated per ANSI C136.31, cold-start operation to -40°F, and 104°F max ambient.
