Product Description

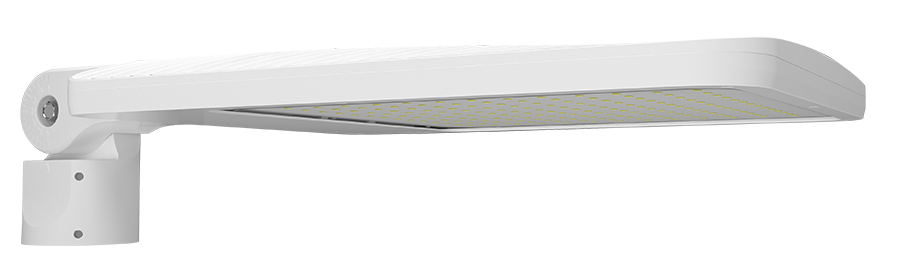

This extra-large ALED area light slides onto a 2-3/8 inch slipfitter at the top of a pole, throwing a Type II distribution along service drives, perimeter roads, and wide walkways. Field-adjustable output steps between 300, 345, and 385 watts right at the fixture, so one SKU covers a range of pole heights and spacing targets — enough brightness at the top setting to replace a 1,500-watt metal halide head. This 4000K neutral-white version produces a near-daylight tone that reads comfortable on sites next to residential buildings, storefronts, and hospitality grounds.
Standard 120-277V input and 0-10V dimming let it drop onto most municipal and commercial pole circuits, with output tunable down to 10% from a separate dimming control. The white finish stays visible against darker backgrounds and matches white-painted architectural metalwork on hospitality, healthcare, and institutional sites.
Features
-
Field-Selectable Wattage: 300W, 345W, or 385W, set at the fixture (factory default 385W)
-
Light Output: up to about 48,400 lumens at the 385W setting
-
Color Temperature: 4000K neutral white
-
Distribution: Type II, broad side-to-side pattern for strip applications like service drives, walkways, and roadway edges
-
Dimming: 0-10V down to 10% (requires separate dimming control circuit)
-
Input Voltage: 120-277V
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Housing: Die-cast aluminum with polycarbonate lens and white polycarbonate reflector
-
Mounting: 2-3/8" slipfitter with stainless steel hardware; adjusts in 5-degree tilt increments
-
Finish: White powder coat, formulated for long-lasting outdoor color
Ideal For: Parking Lot Perimeters • Service Drives • Loading Zones • Walkways • Entrance Roadways • Bike Paths
UL Listed for wet locations. IP66-rated against dust and water intrusion. Cold-start down to -40°F; rated for ambient temperatures up to 104°F. 3G vibration rating per ANSI C136.31 for pole-mounted service.
