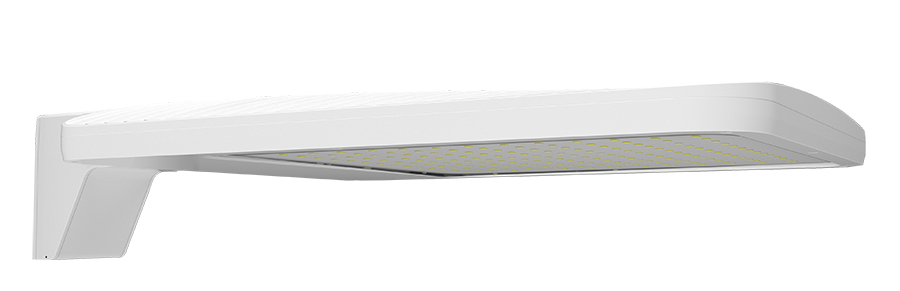

RAB ALED 300W-345W-385W Type II 4000K Pole Mount White (ALEDXL2TNW)

RAB ALED 300W-345W-385W Type II 4000K Pole Mount White (ALEDXL2TNW)

SKU ALEDXL2TNW
by RAB
$1,683.00 - $1,683.00
$1,683.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED field-adjustable area light mounts on a universal arm and delivers broad Type II light across parking lots, service drives, and loading zones. Field-selectable output steps between 300W, 345W, and 385W on a single SKU, and at the 385W setting it replaces a 1,500-watt metal halide fixture while running on a fraction of the energy.

4000K neutral white strikes a balance between warm and cool — bright enough for commercial work areas without the blue cast of cooler color temperatures, and a comfortable fit for mixed-use properties that stay lit into customer-facing hours. The white powder-coat finish keeps the fixture visually quiet against lighter facades and tall ceilings, and reflects a bit of ambient daylight back during the day. Standard 120-277V universal input and 0-10V dimming support give facilities teams flexibility to tune ambient levels throughout the night.

Features

  • Light Output: up to 48,439 lumens at the 385W setting
  • Wattage: field-selectable 300W / 345W / 385W (factory default 385W)
  • Color Temperature: 4000K (Neutral White)
  • Color Rendering: 83 CRI
  • Replaces: up to 1,500-watt metal halide
  • Input Voltage: 120-277V
  • Dimming: 0-10V, down to 10%
  • Distribution: Type II (wide, roadside-oriented spread for parking rows and large open areas)
  • Mount: Universal arm fits 1 to 3 inch center-to-center bolt patterns, round-pole adapter included
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Finish: White high-durability powder coat
  • Lifespan: 100,000 hours (L70)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground

Ideal For: Parking Lots • Service Drives • Loading Zones • Warehouses • Industrial Yards • Big-Box Retail

UL Listed for wet locations with IP66 ingress protection; cold-start to -40°F and rated for 104°F maximum ambient; 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39482/48439/48439 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 83, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
