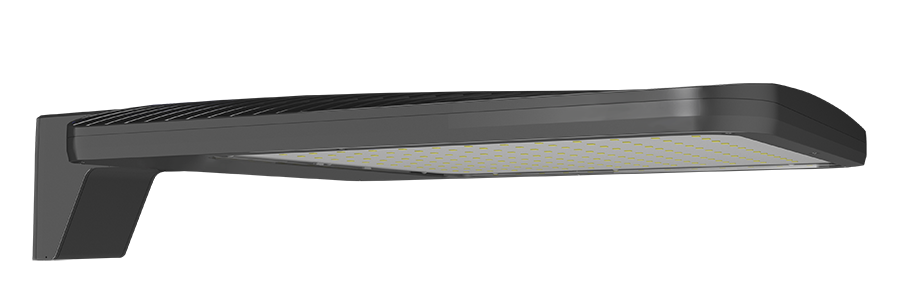

RAB ALED 300W-345W-385W Type II 5000K Pole Mount 7-Pin Receptacle Bronze (ALEDXL2T/7PR)

RAB ALED 300W-345W-385W Type II 5000K Pole Mount 7-Pin Receptacle Bronze (ALEDXL2T/7PR)

SKU ALEDXL2T/7PR
by RAB
$1,728.00 - $1,728.00
$1,728.00
Backorder: Usually Ships in 4-7 Days
Product Description

This extra-large ALED field-adjustable area light mounts on a universal arm and delivers broad Type II light across parking lots, service drives, and loading zones. Field-selectable output steps between 300W, 345W, and 385W on a single SKU, and at the 385W setting it replaces a 1,500-watt metal halide fixture while running on a fraction of the energy.

5000K produces a crisp, cool white that enhances contrast and nighttime visibility — the right pick for security-focused sites, parking lots, and work zones where seeing clearly carries weight. The bronze powder-coat finish holds against coastal salt, UV, and industrial pollutants, and the darker tone works well against brick, stone, and night skies. An ANSI C136.41 7-pin receptacle on top accepts photocells, wireless control nodes, and smart-city networking modules for dusk-to-dawn operation, scheduled dimming, and remote monitoring; standard 120-277V universal input and 0-10V dimming included.

Features

  • Light Output: up to 49,583 lumens at the 385W setting
  • Wattage: field-selectable 300W / 345W / 385W (factory default 385W)
  • Color Temperature: 5000K (Cool White)
  • Color Rendering: 85 CRI
  • Replaces: up to 1,500-watt metal halide
  • Input Voltage: 120-277V
  • Dimming: 0-10V, down to 10%
  • Control: ANSI C136.41 7-pin receptacle on top, accepts photocells and wireless control nodes
  • Distribution: Type II (wide, roadside-oriented spread for parking rows and large open areas)
  • Mount: Universal arm fits 1 to 3 inch center-to-center bolt patterns, round-pole adapter included
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Finish: Bronze high-durability powder coat
  • Lifespan: 100,000 hours (L70)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground

Ideal For: Parking Lots • Service Drives • Loading Zones • Warehouses • Industrial Yards • Big-Box Retail

UL Listed for wet locations with IP66 ingress protection; cold-start to -40°F and rated for 104°F maximum ambient; 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 39963/42888/49583 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
