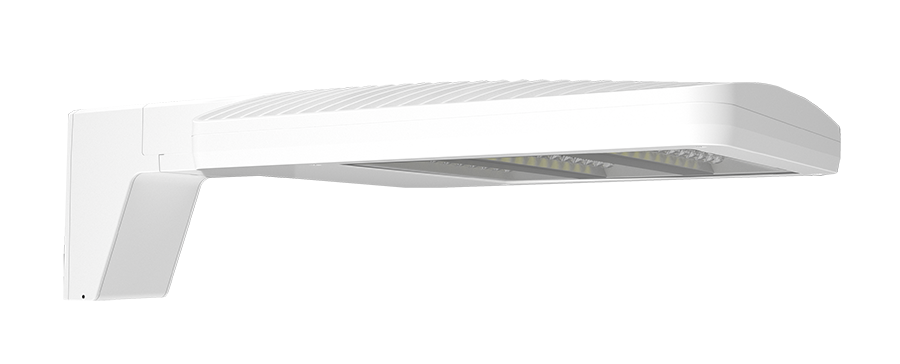

RAB ALED Field Adjustable Area Light 80W/60W/40W 3000K Pole Mount White (ALEDSATYW)

This small ALED area light mounts on a universal arm for square or round poles, delivering field-adjustable 40, 60, or 80 watts in a warm 3000K color that softens the fixture's visual presence on buildings and residential-adjacent sites. One SKU covers a range of output needs, so a spec change in the field doesn't mean a new fixture.

The white die-cast aluminum housing blends in on light-colored buildings and canopies. The on-board 0-10V driver dims the fixture down to 10 percent through a separate dimming circuit for scheduled or occupancy-based operation when an external photocell or controller is wired in.

Features

• Field-Adjustable Output: 80W, 60W, or 40W in three discrete steps (factory default 80W)
• Light Output: 10,452 / 7,724 / 5,618 lumens at 80W / 60W / 40W; replaces a 250-watt metal halide
• Efficacy: 127.5 / 133.6 / 137.7 lumens per watt
• Color Temperature: warm 3000K
• CRI: 82
• Lifespan: 100,000-hour L70
• Input: 120-277V universal, 50/60 Hz
• Dimming: 0-10V to 10 percent (requires separate 0-10V DC dimming circuit)
• Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
• Mount: Universal arm for square or round poles, with hole spacing from 1" to 3" center to center; round pole adapter plate included
• Finish: White die-cast aluminum

Ideal For: Parking Lots • Service Drives • Campus Walkways • Auto Dealership Lots • Site Lighting

UL Listed for wet locations, IP66 ingress protection, -40°F cold start, 104°F maximum ambient, 3G vibration rated per ANSI C136.31. Dark Sky Approved and LUNA 5.1 listed.
