Product Description

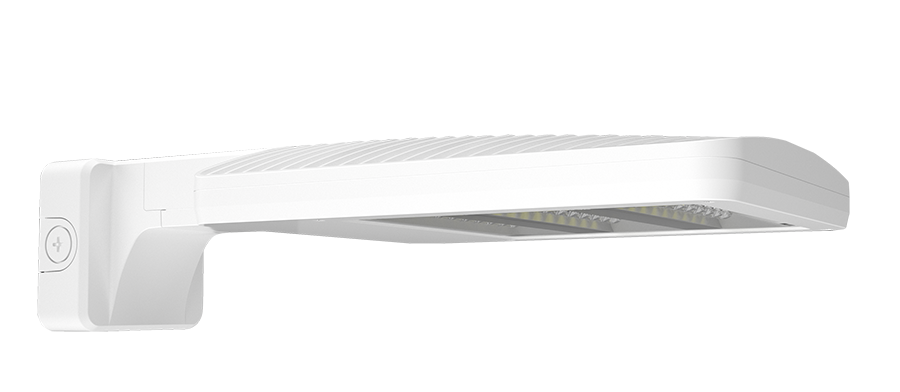

This small ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Output is field-adjustable across 40, 60, and 80 watts in a cool 5000K color that reads bright and crisp for commercial, retail, and security applications, so one SKU covers a range of brightness needs on the job.
The white die-cast aluminum housing blends in on light-colored buildings and canopies. The on-board 0-10V driver dims the fixture down to 10 percent through a separate dimming circuit for scheduled or occupancy-based operation when an external photocell or controller is wired in.
Features
-
Field-Adjustable Output: 80W, 60W, or 40W in three discrete steps (factory default 80W)
-
Light Output: 11,008 / 8,148 / 5,861 lumens at 80W / 60W / 40W; replaces a 250-watt metal halide
-
Efficacy: 134.1 / 140.5 / 145.4 lumens per watt
-
Color Temperature: cool 5000K
-
CRI: 82
-
Lifespan: 100,000-hour L70
-
Input: 120-277V universal, 50/60 Hz
-
Dimming: 0-10V to 10 percent (requires separate 0-10V DC dimming circuit)
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Mount: Direct wall mount for vertical building surfaces
-
Finish: White die-cast aluminum
Ideal For: Loading Docks • Service Entrances • Building Perimeters • Wall Pack Replacement • Rear Exits
UL Listed for wet locations, IP66 ingress protection, -40°F cold start, 104°F maximum ambient, 3G vibration rated per ANSI C136.31.
