Product Description

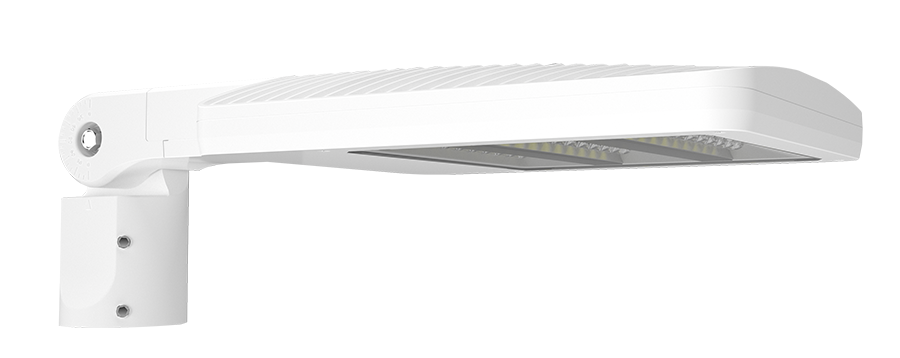

This small ALED area light slips onto a 2-3/8 inch tenon on a round pole or horizontal arm, with stainless steel hardware and 5-degree rotation increments for exact aim across parking lots, drive aisles, and perimeter zones. The white die-cast housing arrives ready to tilt and lock into position, so one crew sets the fixture, dials in the throw, and moves on.
Field-selectable 40W, 60W, or 80W output lets one SKU cover a range of pole heights and site layouts, with 80W set as the factory default and the step-down switch tucked behind the housing door for in-field changes. At 3000K, the output is a warm white that softens the visual impact on adjacent properties and residential-neighbor sightlines, and this fixture is Dark Sky Approved to the IDA fully-shielded standard and listed to the DesignLights Consortium's LUNA 5.1 criteria for responsible night lighting.
Features
-
Field-Selectable Wattage: 40W, 60W, or 80W selectable on the fixture; factory default 80W
-
Light Output: 5,618 lumens at 40W, 7,724 lumens at 60W, 10,452 lumens at 80W; replaces a 250-watt metal halide
-
Color Temperature: 3000K Warm
-
Color Rendering: 82 CRI
-
Lifespan: 100,000-hour L70 LED life
-
Dimming: 0-10V dimmable to 10% standard
-
Voltage: 120-277V multi-volt driver
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Housing: Die-cast aluminum in White with aluminum reflector and white polycarbonate secondary
-
Mounting: 2-3/8" slipfitter with stainless steel hardware and 5° rotation increments
Ideal For: Dark-Sky Communities • Residential-Adjacent Properties • Parking Lots • Perimeter Areas • Campgrounds and Parks • Coastal and Observatory Zones
UL Listed and suitable for wet locations. IP66 ingress protection for dust and water. Cold-start rated to -40°F with a 104°F maximum ambient. 3G vibration rated per ANSI C136.31. Dark Sky Approved and listed to the DesignLights Consortium's LUNA 5.1 criteria at 3000K.
