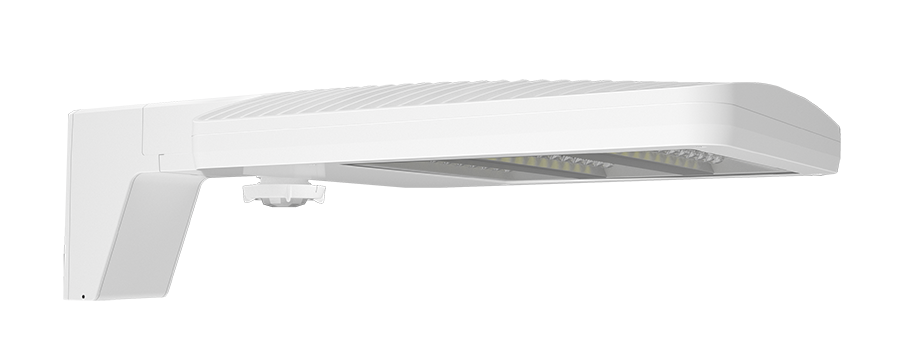

RAB ALED 40W-50W-66W At 4000K Pole Mount WS Sensor 20 Foot Lens White (ALEDSATNW/WS2)

This small ALED area light mounts on an arm bracket to a square or round pole and delivers broad, controlled light across parking lots, drive aisles, and perimeter zones. The universal arm fits bolt-hole spacing from 1 inch to 3 inch, and a round-pole adapter plate ships with every fixture so the same white housing handles either pole style without a hardware swap.

Field-selectable 40W, 60W, or 80W output lets one SKU cover a range of pole heights and site layouts, with 80W set as the factory default and the step-down switch tucked behind the housing door for in-field changes. At 4000K, the output is a balanced neutral white that suits mixed-use sites where both vehicle traffic and foot traffic need natural-looking visibility. An integrated multi-level motion sensor on the housing watches a 180-degree pattern across a 20-foot detection range, dimming the fixture during unoccupied periods and ramping back to full output when motion enters the field — cutting off-hours energy use while keeping the site lit.

Features

• Field-Selectable Wattage: 40W, 60W, or 80W selectable on the fixture; factory default 80W
• Light Output: 5,913 lumens at 40W, 8,140 lumens at 60W, 10,945 lumens at 80W; replaces a 250-watt metal halide
• Color Temperature: 4000K Neutral
• Color Rendering: 82-83 CRI
• Lifespan: 100,000-hour L70 LED life
• Dimming: 0-10V dimmable to 10% standard
• Voltage: 120-277V multi-volt driver
• Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
• Housing: Die-cast aluminum in White with aluminum reflector and white polycarbonate secondary
• Mounting: Universal arm bracket with 1" to 3" bolt-hole spacing; round-pole adapter plate included
• Motion Sensor: Integrated multi-level motion sensor with 180° detection pattern and 20-foot lens range; wireless configuration via WSREM handheld tool (sold separately)

Ideal For: Parking Lots • Drive Aisles • Perimeter Areas • Car Dealerships • Loading Zones • Wall Pack Replacements

UL Listed and suitable for wet locations. IP66 ingress protection for dust and water. Cold-start rated to -40°F with a 104°F maximum ambient. 3G vibration rated per ANSI C136.31.
